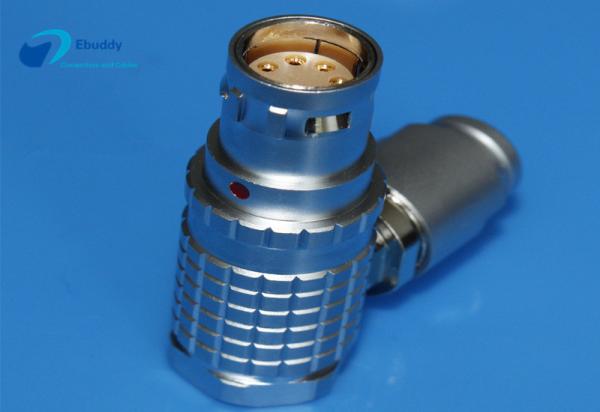

Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8 pin female plug FHJ.2B.308
Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8 pin female plug FHJ.2B.308
Specifications
Brand Name :
Ebuddy
Model Number :
FHJ.2B.308
Certification :
CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
Western Union, T/T，Paypal
Supply Ability :
10000pcs per month
Packaging Details :
pp pag
Shell Style :
FHG Elbow plug
Pins :
8pin
Max. Matings :
5000
Keying :
2 keys
R (max) :
4.8 mOhm
Application :
Alexa mini power supply
Description

Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8pin female plug FHJ.2B.308

Description:

  • Shell Style/Model: FH*: Elbow plug, cable collet
  • Keying: 2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
  • Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration: 2B.308 : 8 Low Voltage
  • Contact Type: Solder
  • Max. Matings: 5000
  • Contact Dia.: 0.9 mm (0.035in)
  • Bucket Dia.: 0.8 mm (0.031in)
  • Max. Solid Conductor: 0.34 mm^2 (AWG 22)
  • Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
  • R (max): 4.8 mOhm
  • Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
  • Vtest (contact-contact): 1500 V (AC), 2120 V (DC)

​

Custom cable assembly service:

We promise all our cable assembly:

  • Professional engineer evaluate your needs
  • 100% testing before shipping
  • Small quantity are welcome
  • Overmold is available

MOQ: 1pc is available

Process: before do the cable assembly, there are some information need confirm first, like the cable connector, length,OD,wire diagram:

  • Cable application(we need to know it is for power or signal, then we can use suitable cable for you)
  • Cable length, cable OD
  • Both sides connectors (for the connector, please advise the model number or specification details)
  • Wire connection way (Our engineer will work out a connection diagram including all cable details for your confirmtion)

Size and drawing:

Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8 pin female plug FHJ.2B.308

Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8 pin female plug FHJ.2B.308

Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8 pin female plug FHJ.2B.308
