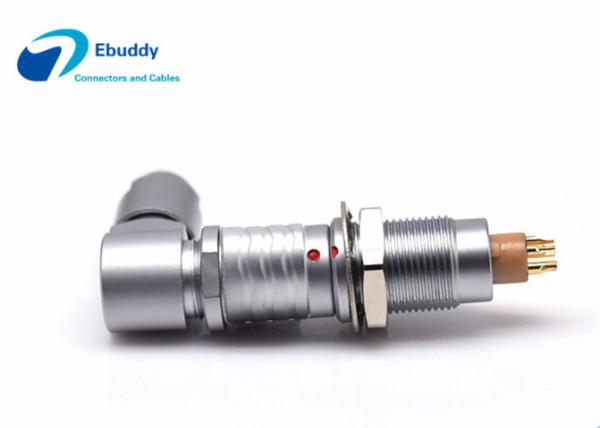

Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Adjustable Angle Lemo B Series Connectors 5pin Elbow Plug FSG.0B.305
Specifications
Brand Name :
OEM
Model Number :
FSG.0B.305
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
90000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
PP bag
Model :
FSG.0B.305
Pin :
2pin,3pin.4pin,5pin,pin,7pin
Shell size :
Lemo 0B
Style :
adjustable angle
Contact :
Male plug
Max. Matings :
5000
Description

Lemo adjustable angle connectors B series FSG 0B 5pin elbow plug FSG.0B.305

Adjustable Angle lemo 5pin connector Features:

  • Lemo adjustable angle 5pin connectors
  • 0B,1B,2B, 2-16pin available
  • 360 degree adjustable, fit different direction
  • Endurance (Shell):5000 mating cycles
  • Humidity (max):<=95% [at 60 deg C / 140 F]
  • IP Rating:50
  • Configuration:Brass (gold plated)

  • Housing Material:Brass chrome plated

  • Temp (min):-20 deg C
  • Temp (max):+150 deg C
Adjustable Angle lemo 5pin connector Specifications:

Parameters Value
Part Number EB-FSG.0B.305.CLAD
Size/Series FS*:Adjustable right angle Anglissimo plug with cable collet and nut for fitting a bend relief
MECHANICAL DETAILS
Shell Style/Model Elbow plug with cable collet
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
PERFORMANCE DETAILS
Insert 0B.305 :5 Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Contact Dia 0.5 mm
Bucket Dia 0.45 mm
Max. Solid Conductor 0.09 mm^2 (AWG 28)
Max. Stranded Conductor 0.09 mm^2 (AWG 28)
R (max) 8.7 mOhm
Vtest (AC) 900 V
Rated Current 2.5A
OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50

Adjustable Angle lemo 5pin connector Applications:
  • Medical Electronics
  • Test and Laboratary
  • Measurement Instrumentation
  • Data and Telecom Systems
  • Audio and video Applications
  • Military and Aerospace
  • Industrial Controls
  • Nuclear Technology

Adjustable Angle lemo 5pin connector Custom service:

  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Adjustable Angle lemo 5pin connector Corlorful Sleeve (Jacket):
  • Material: Polyurethane material(PU)
  • Temperature range: -40°--- +80°
  • Color: Black, Red, Blue, White, Yellow, Green
  • Size: 00B/0B/1B/2B, 0K/1K/2K
  • Cable OD Range: 3.1mm—8.2mm
