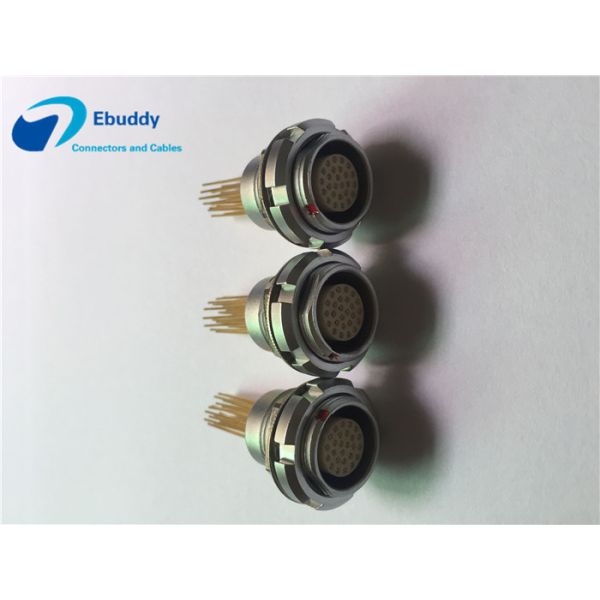

Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326
Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326
Specifications
Brand Name :
Ebuddy
Model Number :
ECG.2B.326
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8workingdays
Packaging Details :
PP bag
Rated Current :
2 Amps
R (max) :
8.7 mOhm
Shielding (min) :
40 dB (1 GHz)
Configuration :
2B.326 : 26 Low Voltage
Pin No :
6pin
Application :
Printed Circuit
Description

Multi pin 2-26pin PCB printed circuit board connector Lemo push pull socket ECG.2B.326

Technical Details:

  • Shell Style/Model: EC*: Fixed receptacle with two nuts (back panel mounting)
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing Material : Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
  • Configuration: 2B.326 : 26 Low Voltage
  • Insulator: P:PPS
  • Rated Current: 2 Amps
  • R (max): 8.7 mOhm

Contacts No.:
  • 00B sizes: 2, 3 and 4
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

Insulating washer(color wheel):

  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
  • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326

Multi Pin 2B 26pin PCB Printed Circuit Board Connector With Lemo Push Pull Socket ECG.2B.326
