Lemo EPG 1B 4 Pin PCB Socket Push Pull Circular Connector For Panel Mounting Using
Lemo EPG 1B 4 Pin PCB Socket Push Pull Circular Connector For Panel Mounting Using
Specifications
Brand Name :
Ebuddy
Model Number :
DPG.1B.304.CLN
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8workingdays
Packaging Details :
PP bag
Pin No :
2-32pin/Multi pin
Shock resistance :
100g.6ms
Salt spray corossion test :
> 48hrs
Contact Type :
Elbow printed circuit
Specifications :
Low Voltage
Endurance (Shell) :
5000 mating cycles
Description

Lemo EPG 1B 4pin PCB socket push pull circular printed circuit board connector for panel mounting using

Technical Details:

  • Shell Style/Model: EP.HLN*: Elbow receptacle for printed circuit (solder or screw fixing)
  • Keying: 1 key (alpha=0)
  • Contact Type: Print (straight)
  • Vtest (contact-shell): 1450 V (AC), 2050 V (DC)
  • Vtest (contact-contact): 1350 V (AC), 1910 V (DC)
  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Customized demands are welcome! If you have any customized requirements, please send us details drawing, we will do for you.
  • 1 year warranty, any problems in warranty time, we will fix or replace new one for you

Application fields:

Medical, Industry, Defense Security, Energy, Instrumentation, Broadcast, Transportation, Extreme environment…..

PCB Board drilling figure:

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

Insulating washer(color wheel):

  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
  • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

Lemo EPG 1B 4 Pin PCB Socket Push Pull Circular Connector For Panel Mounting Using

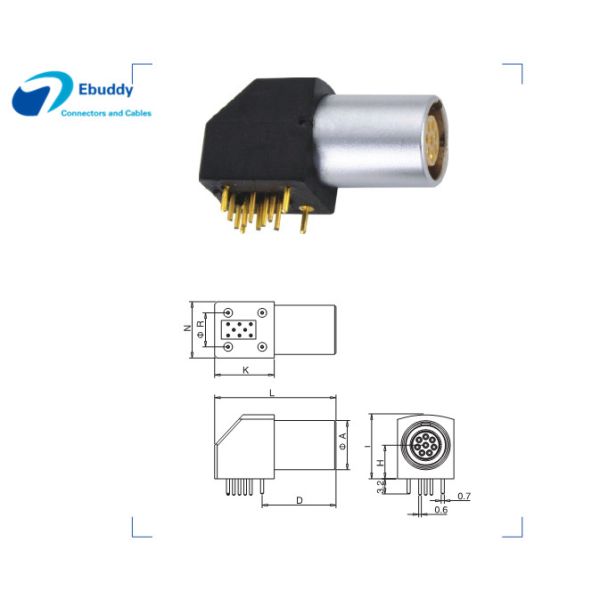

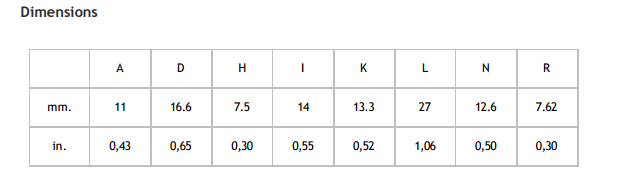

EPG 1B Size and drawing:

Lemo EPG 1B 4 Pin PCB Socket Push Pull Circular Connector For Panel Mounting Using

Lemo EPG 1B 4 Pin PCB Socket Push Pull Circular Connector For Panel Mounting Using
