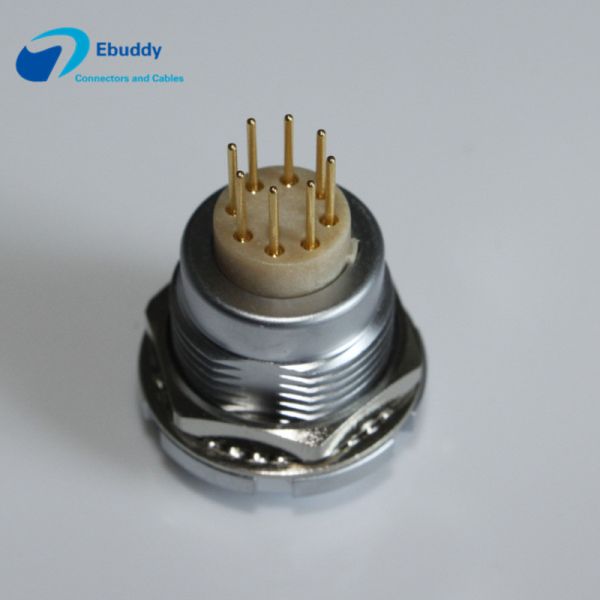

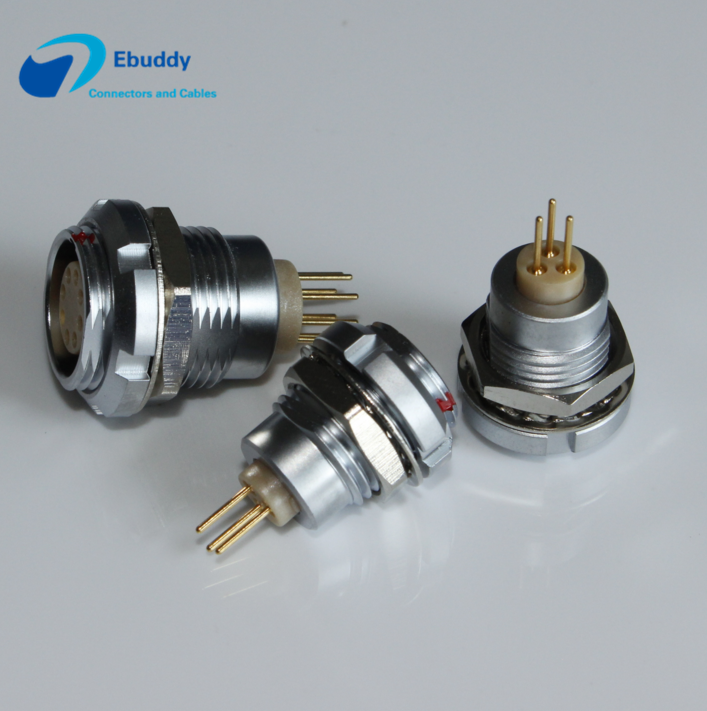

50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin
50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin
50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin
50 IP Rating Lemo B Series Connectors ECG 2-32 Pin Female Socket With PCB / Solder Pin
Specifications
Brand Name :
Ebuddy
Model Number :
Lemo ECG
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8workingdays
Packaging Details :
PP bag
Contact Type :
PCB or Solder
Max. Matings :
5000
Shell Style/Model :
Female socket
Vtest (contact-shell) :
700 V (AC), 990 V (DC)
Vtest (contact-contact) :
800 V (AC), 1130 V (DC)
IP Rating :
50
Description

Lemo compatible B series connector ECG 2-32pin female socket with PCB pin and solder pin

Main features:

  • ECG 2-32pin female socket with PCB pin and solder pin
  • Size: 00B/0B/1B/2B/3B
  • Pins: 2- 32pin
  • Keying: 1 key (alpha=0)
  • Termination type: Female PCB or solder
  • Totaly compatible Lemo ECG, good quality with Endurance 5000 mating cycles
  • Customized demands are welcome! If you have any customized requirements, please send us details drawing, we will do for you.

Contacts No.:
  • 00B sizes: 2, 3 and 4
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

PCB Board drilling figure

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

Insulating washer(color wheel):

  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
  • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size
