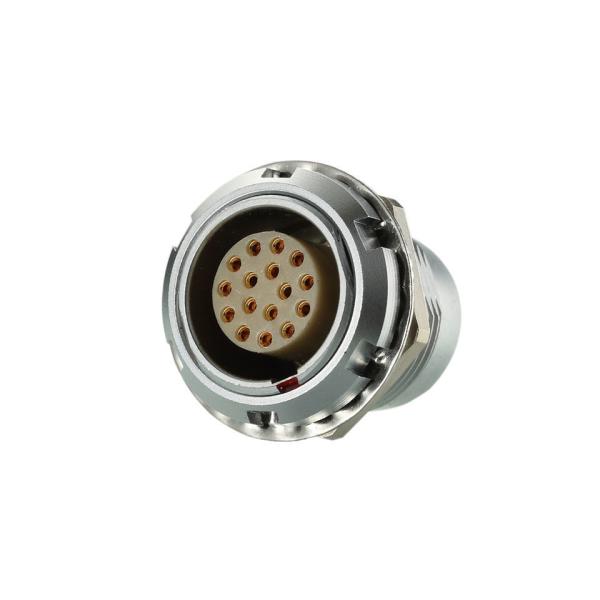

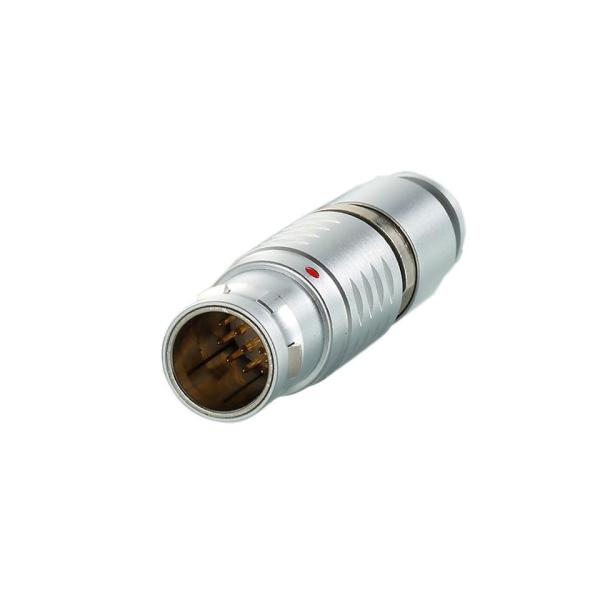

100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female
Specifications
Brand Name :
Ebuddy
Model Number :
FGG.2B.316.CLAD
Certification :
CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
Western Union, T/T，Paypal
Supply Ability :
10000pcs per month
Packaging Details :
Standard package
Pin No. :
2-32pin/Multi pin
Housing Material :
Brass (chrome plated) shell
Endurance (Shell) :
5000 mating cycles
IP Rating :
IP50
Humidity (max) :
<=95% [at 60 deg C / 140 F]
Configuration :
Brass (gold plated)
Type :
Solder , crimp or print contacts
Size :
2B
Contact Material :
Copper Alloy
Description

100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female

Description:

  • 1.Quick push pull self-latching system
  • 2.Solder,crimp or print contacts
  • 3.Straight or elbow 90.
  • 4.Multiple keying options to avoide mismating
  • 5.Full EMC shielding
  • 6.Multi-pole 2 ~ 32 contacts
  • 7.High-density installation to save space
  • 8.Mating cycles: >5000 times
  • 9.Humidity: at 60 °C, max. up to 95%
  • 10.Temperature range: -45 ° ~ + 125 °
  • 11.Vibration: 10-20,000HZ, 15g
  • 12.Mechanical shock: 100g.6ms
  • 13.Salt fog corrosion:>48h
  • 14.Protection class: IP50,dust-proof
  • 15.Cable collet diameter: 2.6mm-7.0mm
  • 16.Sleeve Color: Black, Red, Blue, White, Yellow, Green

100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female

Technical Specifications:

Pins 16Pins
Plug Straight plug
Locking system Push-Pull
Size 2B
Mating part 2B.316.CPAC.52L
IP Level IP50

Electrical Configuration

Cores 16 cores
Contact dia 0.7mm
Contact type Solder
Rated current 6A
Working voltage 300V
Test voltage 0.95V rms

Materials

Housing material Brass(chrome plated) shell and collet nut, nickel plated brass larch sleeve and mid pieces
Insulator PPS

Key

G A B C D E F J
0° 30° 60° 90° 135° 145° 155° 45°

Why buy compatible connector?

  • 1. 100% compatible lemo connector,
  • 2. Help you save at least 50% cost,
  • 3. Cable assembly offer,help you save production time.

Application:

100% Compatible Lemo 2B Series Circular Connectors 16pins Male And Female

About Us:

Ebuddy is a manufactuer that:

  • 1. Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
  • 2. Can be 100% compatible with original LEMO • FISCHER • ODU • HIROSES• BINDER •Military 38999.
  • 3. Series has Lemo-B, Lemo-K,Lemo-S, Lemo-F,Lemo-E,Hirose-HR10A, Lemo-P, M4, M12,M16, BNC, B680,B423 , 38999, 26482.
  • 4. CO, Form A, Form E for customer clearance cerificates available for you.
  • 5. CE, ROHS, ISO:90001-2008, SGS Audited manufacturer.
  • 6. All the items can work normally after 5000 times mating.
