Print Contact PCB Mount Circular Connector
Print Contact PCB Mount Circular Connector
Print Contact PCB Mount Circular Connector
Print Contact PCB Mount Circular Connector
Specifications
Brand Name :
Ebuddy
Model Number :
EPG.0B.304
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5-8workingdays
Packaging Details :
PP bag
Contact Type :
Print (Elbow)
Max. Matings :
5000
Shell Style/Model :
Elbow receptacle
Vtest (contact-shell) :
700 V (AC), 990 V (DC)
Vtest (contact-contact) :
800 V (AC), 1130 V (DC)
IP Rating :
50
Description

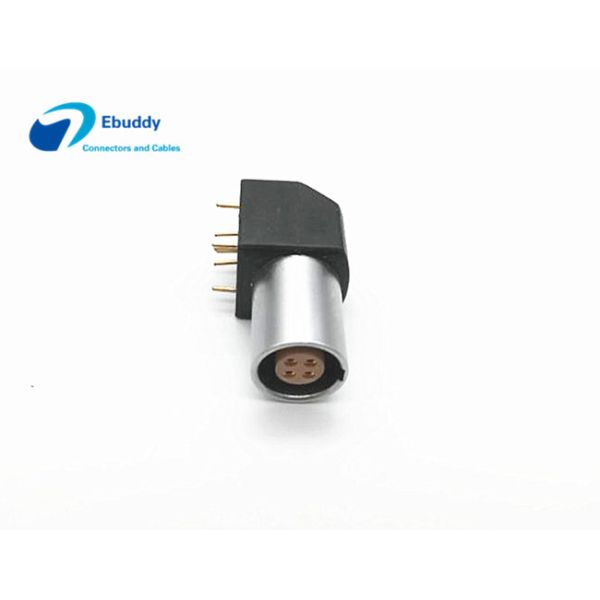

Printed Circuit Board connector Lemo EPG PCB right angle solder socket

Main features:

  • Printed Circuit Board connector Lemo EPG PCB right angle solder socket
  • Keying: 1 key (alpha=0)
  • Pins: 2/3/4/5/6/7/8/9/10/12/14/16
  • Size: 0B 1B 2B
  • Termination type: Female print PCB
  • Totaly compatible Lemo EPG, good quality with Endurance 5000 mating cycles
  • Customized demands are welcome! If you have any customized requirements, please send us details drawing, we will do for you.

Contacts No.:
  • 00B sizes: 2, 3 and 4
  • 0B sizes: 2 3 4 5 6 7 and 9
  • 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 and 14
  • 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

PCB Board drilling figure

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

Insulating washer(color wheel):

  • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
  • Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.
  • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

Print Contact PCB Mount Circular Connector

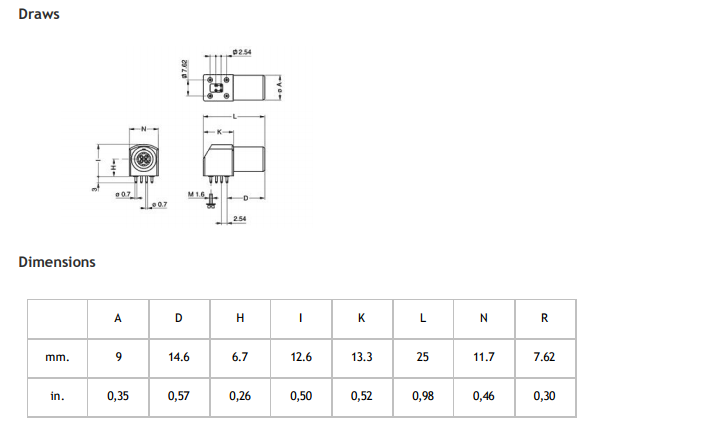

Size and drawing:

Print Contact PCB Mount Circular Connector

Print Contact PCB Mount Circular Connector
