Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
Specifications
Brand Name :
OEM
Model Number :
ECG.00.302.CLL
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
90000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
PP bag
Model :
Lemo ECG 00
Pin :
2pin,3pin.4pin,5pin
Shell size :
Lemo 00
Style :
Fixed socket
Contact :
Female
Max. Matings :
5000
Description

Lemo ECG 00 socket rear panel fixed receptacle ECG.00.302.CLL

Features:

  • Lemo 00 2-5pin FGG male plug and EPG female right angle connector
  • Endurance (Shell):5000 mating cycles
  • Humidity (max):<=95% [at 60 deg C / 140 F]
  • IP Rating:50
  • Configuration:Brass (gold plated)

  • Housing Material:Brass chrome plated

  • Temp (min):-20 deg C
  • Temp (max):+150 deg C

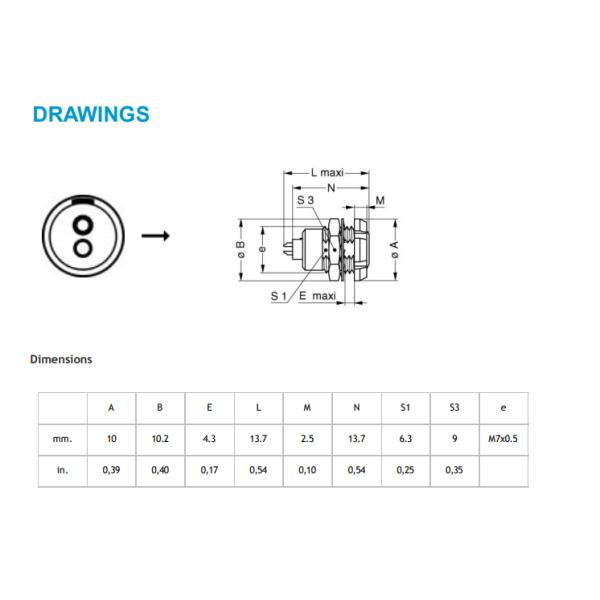

Size drawing:

Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL

Custom service:

Besides the compatible models, we also can supply custom service for connectors and cables:

  • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
  • ​Cable assembly service: we can supply cable assembly service according to your requirements.
  • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
  • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
  • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Collet size :

Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL

Parts View:

Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL

Dust caps:

Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL

Lemo ECG 00 Socket Rear Panel Fixed Receptacle ECG.00.302.CLL
