Specifications
rated input voltage :
220V
Rated Duty Cycle @40°C :
35%
max. load power capacity :
4.8KVA
rated output voltage :
230 V
welding current/voltage range :
15-160A
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
pulse frequency :
50/60HZ
motor type :
DC MOTOR
dimensions :
210*120*265MM
usage :
MMA Welding
weight (kg) :
4.5
warranty :
1 Year
feature :
INVERTER
input power cable m :
1.5m
electrode diameter mm :
4.0mm, 4.8mm, 5.0mm
Model :
PoArc175ST
Power Supply Voltage :
1*230V,50/60Hz
Rate Input Capacity (KVA) :
4.8
Rate input Current(A) :
21
No Load Voltage :
83
Output current Range :
15-160A
Duty Cycle :
35%
Weight :
4.5
L*W*H(mm) :
210*120*265
Description
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
1. Introduction to welding machine
ProArc175STL is a compact and efficient welding machine featuring IGBT high-frequency inverter technology. It operates at 230V with a maximum output of 160A. Designed with a single PCB style, it supports DC MMA and Lift TIG welding, offering features like hot arc start, arc force adjustment, anti-stick functionality, and a digital display for precise control and ease of use.
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders

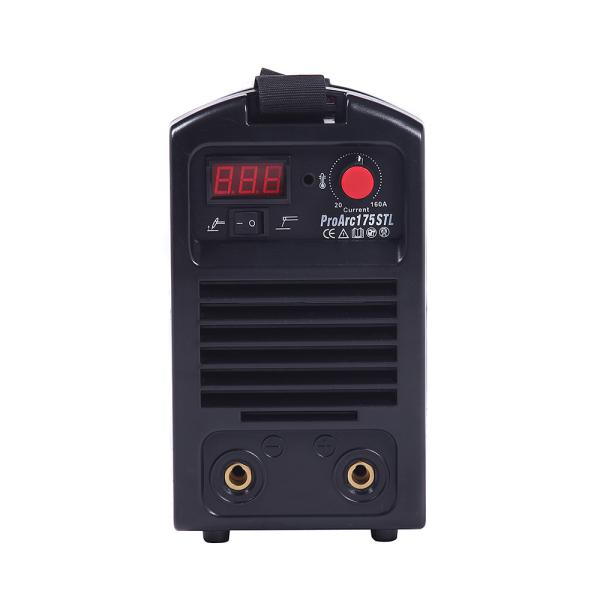

2.Panel display
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
3.Attribute table
Model
ProArc135STL
ProArc175STL
ProArc205STL
ProArc250STL
Power Supply Voltage
1*220V,50/60HZ
1*220V,50/60HZ
1*220V,50/60HZ
1*220V,50/60HZ
Rate Input Capacity (KVA)
4.5
4.8
6
9
Rate Input Current(A)
20
21
26
39
No Load Voltage
83
83
83
85
Output current Range
15-135A
15-160A
20-200A
20-250A
Duty Cycle
35%
35%
35%
35%
Weight
4.2kg
4.5kg
5.5kg
7.5kg
L*W*H(mm)
210*120*265
210*120*265
290*165*265
290*165*265
4. Analysis of product buying points
*IGBT high frequancy inverter DC MMA
*Single PCB style design.
*Hot arc start and arc force and Anti-stick
*Lift Tig welding
*Digital display.
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders

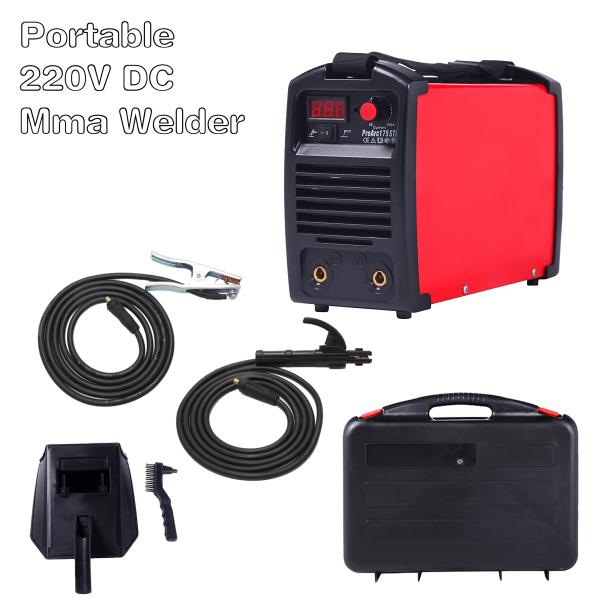

5. Product configuration

ACCESSORIES

Earth clamp cable lm with200A earth clamp
Welding cable 1.5m with200A electrode holder
Serial Number
Name
Specification
Quantity
1
Earth Clamp
1m
1
2
Electrode Holder
1.5m
1
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders

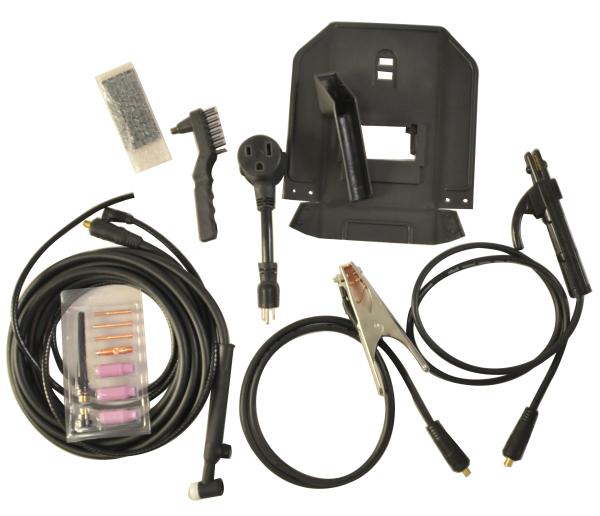

OPTIONAL ACCESSORIES

BMC(plastic box)
Dual voltage110/220V
E6010 socket
Weld helmet
Serial Number
Name
Specification
Quantity
1
BMC(plastic box)
1
2
Weld helmet
1
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
220V Manual Metal Arc Welders for Welding Arc Welder Mma Welders
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
