Specifications
rated input voltage :
380V
Rated Duty Cycle @40°C :
60%
max. load power capacity :
16.6KVA
rated output voltage :
380V
welding current/voltage range :
315A
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
pulse frequency :
60/50HZ
motor type :
DC MOTOR
dimensions :
560*240*460mm
usage :
Stick Welders
weight (kg) :
22
warranty :
1 Year
feature :
INVERTER
input power cable m :
1.5m
electrode diameter mm :
4.0mm, 4.8mm, 5.0mm
Model :
SUPERARC315
Power Supply Voltage :
3*380V,50/60HZ
Rate Input Capacity (KVA) :
16.6
Rate Input Current :
24
No Load Voltage :
80
Output current Range :
20-315A
Duty Cycle :
60%
Weight :
22KG
L*W*H(mm) :
560*240*460
Description
3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine
1. Introduction to welding machine
The SUPERARC315 is an IGBT Inverter welding machine that supports DC MMA and Pulse ACDC TIG welding, with adjustable arc start current, welding current, and arc force. Powered by a 32-bit MCU, it offers precise control, foot pedal and manual adjustments, and features an analog operation panel. It includes an anti-stick function and digital display for real-time amperage and voltage.With 3*400V input and a maximum output of 315A, it’s perfect for high-power industrial welding.
3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine

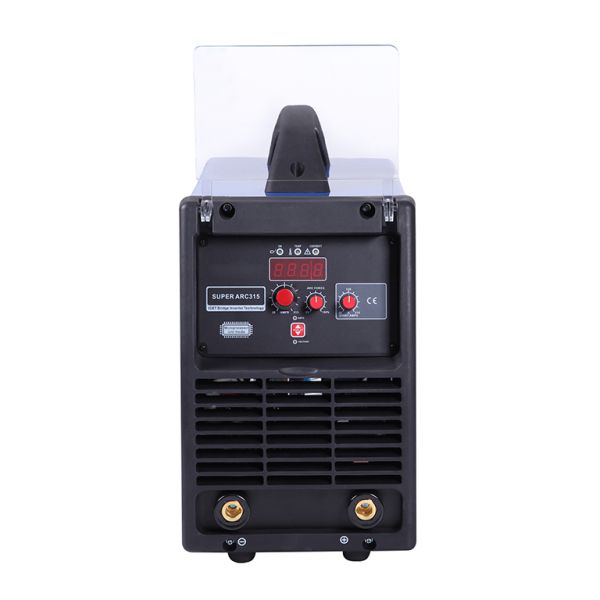

2.Panel display
3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine
3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine
3.Attribute table
Model
SUPERARC250
SUPERARC315
SUPERARC400
Power Supply Voltage
3*380V,50/60Hz
3*380V,50/60Hz
3*380V,50/60Hz
Rate Input Capacity (KVA)
9
16.6
23
Rate Input Current
13
24
33
No Load Voltage
80
80
80
Output current Range
20-250A
20-315A
20-400A
Duty Cycle
60%
60%
35%
Weight
15KG
22KG
25KG
L*W*H(mm)
560*240*460
560*240*460
560*240*460

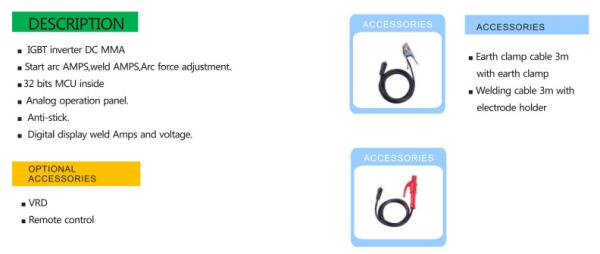

4. Analysis of product buying points
*IGBT inverter DC MMA
*Start arc AMPS,weld AMPS,Arc force adjustment.
*32 bits MCU inside
*Analog operation panel.
*Anti-stick.
*Digital display weld Amps and voltage.
3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine

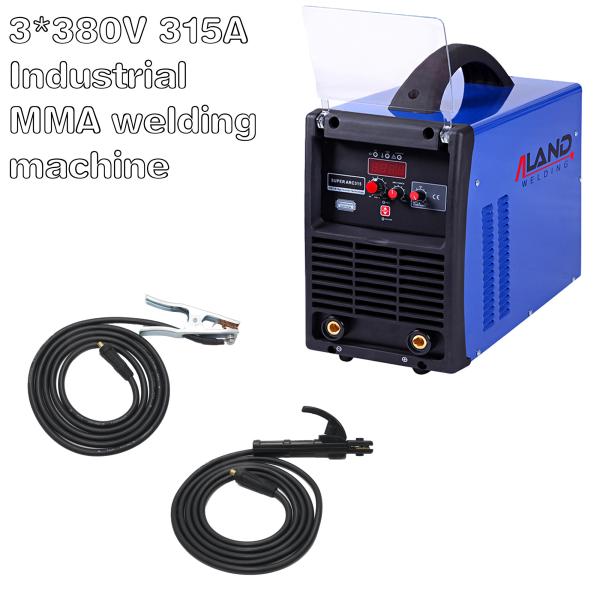

5. Product configuration
Serial Number
Name
Specification
Quantity
1
Electrode Holder
3m
1
2
Earth Clamp
3m
1
