230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
Specifications
material / metal processed :
Carbon steel,stainless steel
rated input voltage :
230 V
wire melting type :
Spray Transfer
max. load power capacity :
6.1KVA
rated output voltage :
230 V
welding current/voltage range :
35-180A
rated duty cycle @40°c (mig) :
85%
wire feeding speed :
13
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALAND
dimensions :
330*155*250MM
usage :
welding
weight (kg) :
6.5
warranty :
1 Year
feature :
MINI Welder
Engine power :
electric(dc)
mig solid wire diameter mm :
1.2MM
Power supply voltage :
AC 230V+10%(50/60HZ)
Max.Power consumption :
6.1KVA
Rated input current :
26.5A
No-load voltage :
53V
Wire Size :
0.6mm ,0.8mm ,0.9mm
Protective class :
IP21S
Diameters of reels with wire :
D100mm
Weight :
6.5Kg
Welding current range(A) :
MIG:35-180A,MMA:20-160A
Wire feeding speed :
2-13m/min
Description

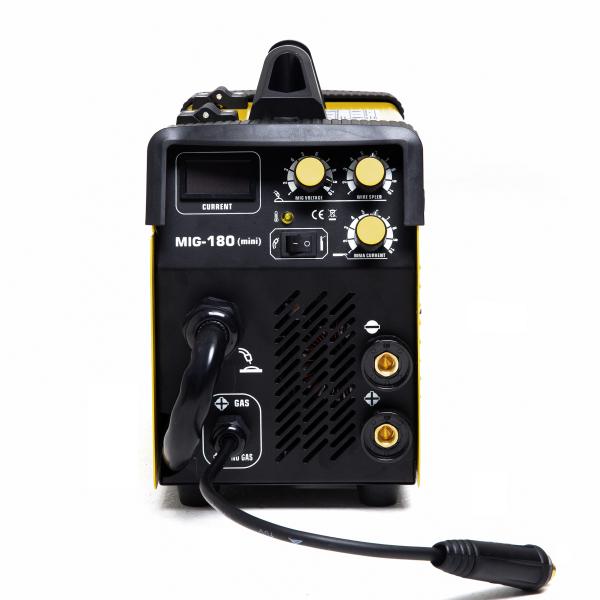

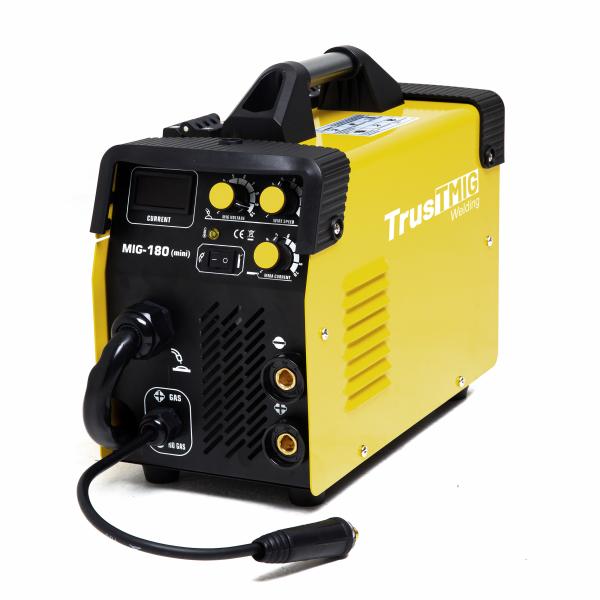

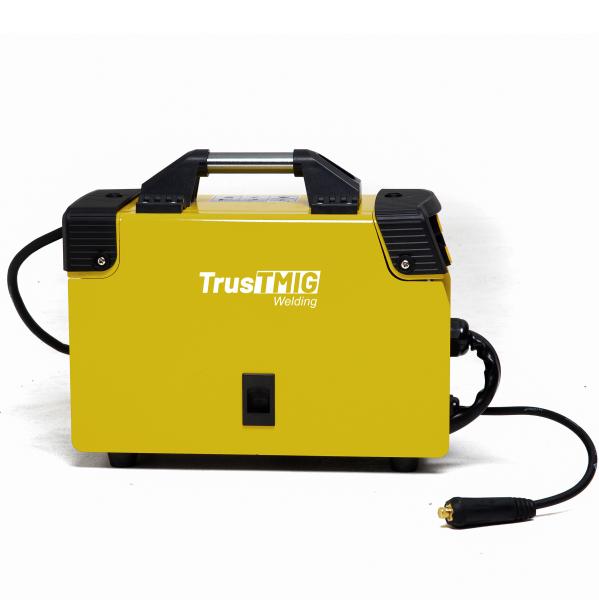

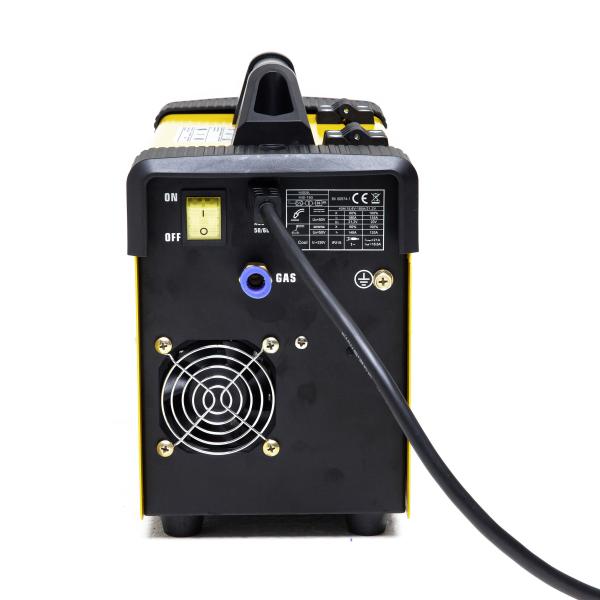

230V MINI MIG MMA Welding 180A Small MIG Welder
FEATURES
1. High-power full-bridge circuit board.
2.Max MlG real welding current can reach 180A, MMA is 160A.
3. MIG & MMA function in one machine.
4. Advanced lGBT technology, compact design, lightweight, and energy saving
5.Automatic over-current, over-heat and over-voltage protection.

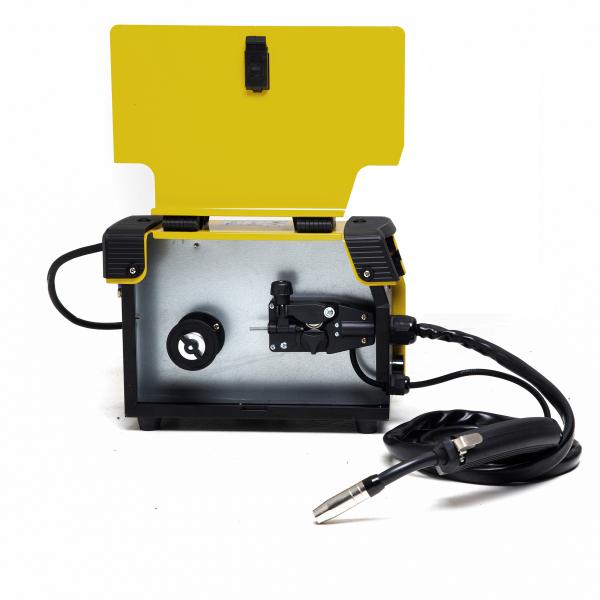

6.Internal wire feeder, gear driven, support 1kg wire feeding.
7. Integrated MlG torch with 2.5m cable,also can put inside the shell, easy to carry around
230V MINI MIG MMA Welding 180A Small MIG Welder
Power supply voltage
AC 230V±10%(50/60HZ)
Max.Power consumption
6.1KVA
Rated input current
26.5A
No-load voltage
53V
Wire Size
0.6mm,0.8mm,0.9mm
Protective class
IP21S
Diameters of reels with wire
D100 mm
Weight
6.5 Kg
Welding current
MIG :35-180A
MMA:20-160A
Wire feeding speed
2-13m/min
Welding voltage
MIG :15-23V
Dimension
330mm*155mm*250mm
Power factor
0.85
Insulation class
F
Duty Cycle at 40℃
25%
Efficiency
85%
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder

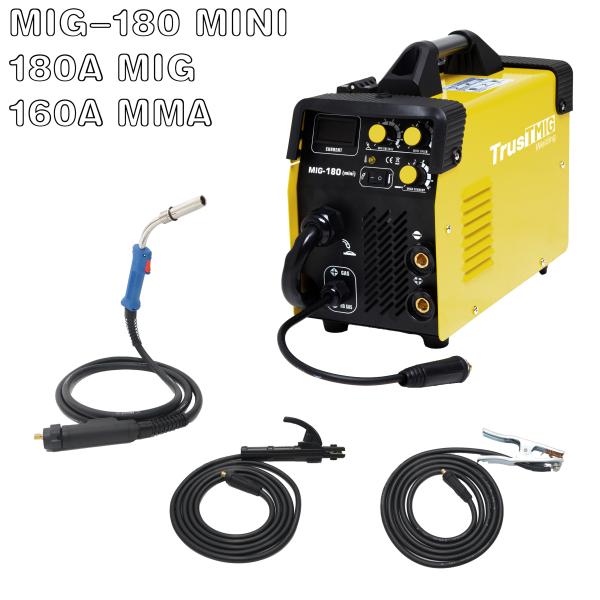

Accessories

MlG torch 3m
Electrode Holder
Earth Clamp
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
230V MINI MIG MMA Welding 180A Small MIG Welder
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
