Specifications
material / metal processed :
Aluminium alloy
rated input voltage :
400 V
wire melting type :
Globular Transfer
max. load power capacity :
27kva
rated output current :
38A
rated output voltage :
400 V
welding current/voltage range :
20-500A
rated duty cycle @40°c (mig) :
60%
wire feeding speed :
15 m/min
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALANDWELDING
dimensions :
670*290*560mm
usage :
Welding all kinds of ferrous metals
weight (kg) :
52 KG
warranty :
1 Year
feature :
INVERTER
Welding voltage :
14V 3V~50V 3V use the voltage adjusting knob
crater mode :
2Tor4T
gas type :
80%Ar+20%CO2(Fe,Cu) ;100%Ar(AlSi,AlMg) ; 98%Ar+2%CO2or O2(CrNi)
Insulation class :
F
Protection class of shell :
fan cooling
Protection Class of enclosure :
IP21S
Efficiency :
80%
Key Selling Points :
Easy to Operate
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining, Other
Machinery Test Report :
Not Available
Video outgoing-inspection :
Not Available
Description

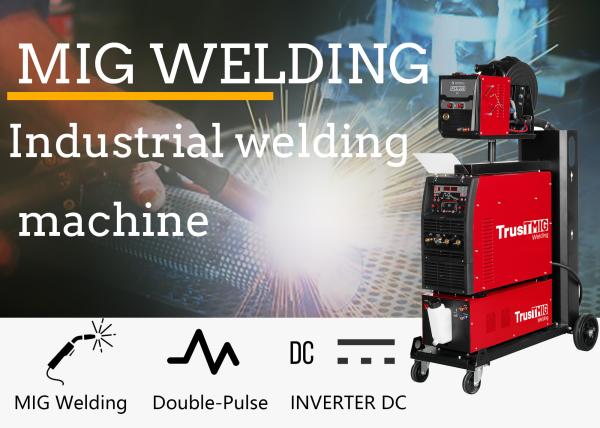

380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine
Features

DIGITAL PULSEMIG350D, 500D SERIES

1. Digital Control DC MMA,Pulse TIG and Double-Pulse Mig
2. IGBT inverter soft switch
3. Syergice mig /pulse mig
4. Over current and over hot protection
5.Special design trolley
6. 2T/4T function
7. Two knobs adjusting
8. 4Rolers wire feeder
9. Material chosen
10. Co2 ,Mix and Argon gas
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine
Product Paramenters
MODEL
PULSEMIG500D
INPUT
Voltage
3*AC380~415V 50Hz/60Hz
Rated input current
21A
Rated input power
15KVA
DC MMA
No-load Voltage
60V
current Adjusting Range
20~350A
Rated Output Current
350A
Start Current
0-200A
Arcforce Current
0-200A
Rated Duty Cycle
60%
CO2
No-load Voltage
60V
Rated Duty Cycle
60%
Current Adjusting Range
20~350A
Rated Output Current
350A
crater-fill voltage
14-40V
crater-fill current
10-350A
burnback time
0.01-0.5S
burnback voltage
10.0-25.0V
Wire Alloy Material
--
Synergic MIG Or BASIC MIG
all
crater mode
2T( no Start Current & no crater curent)
or 4T( no Start Current),no S4(special 4 step)
gas type
CO2 or Ar
PULSE
MIG
Welding Current
20-500A
Welding Voltage
-5.0~+5.0
Rated Output Current
500A
Rated Duty Cycle
60%
Start(Initial) Current
10-500A
Start(initial) Voltage
-5.0~+5.0
crater-fill voltage
-5.0~+5.0
crater-fill current
10-500A
burnback time
0.01-0.5S
burnback voltage
-5.0~+5.0
Wire Alloy Material
Fe,AISi,AIMg,CrNi,Cu
Synergic MIG or BASIC MIG
only Synergic MlG
crater mode
2T( no Start Current & no crater curent)
or 4T( no Start Current) or S4 (special 4 step)
gas type
80%Ar+20%C02,(Fe,Cu);100%Ar(AISi,AIMg) ;98%Ar+2%CO,or O2(CrNi)
INPUT
Voltage
3*AC380~415V 50Hz/60Hz
DOUBLE
PULSE
MIG
PULSE peak Current
10~500A
PULSE peak Voltage
-5.0~+5.0
Welding(base) Current
10~500A
Welding(base) Voltage
-5.0~+5.0
mixed frequency
0.1-9.9Hz
mixed ratio
10-90%
Start(initial) Current
10-500A
Start(Initial) Voltage
-5.0~+5.0
crater-fill voltage
-5.0~+5.0
crater-fill current
10-500A
Rated Duty Cycle
60%
Rated Output Current
500A
Wire Alloy Material
Fe,AISi,AIMg,CrNi,Cu
Synergic MIG or BASIC MIG
only Synergic MIG
crater mode
2T( no Start Current & no crater current)or 4T( no Start Current)or S4(special 4 step)
gas type
80%Ar+20%CO2(Fe,Cu);100%Ar(AISi;,AIMg);98%Ar+2%CO2 or O2(CrNi)
CO2
or
MIG
inductance
1~10
Pre gas Flow Time
0~3s
Post gas Flow Time
0~20s
Wire Diameter
0.8,1.0,1.2,1.6(solid/flux）
Efficiency
≥80%
Protection Class of enclosure
IP21S
Insulation class
F
Protection class of shell
fan cooling
Product Advantages Introduction
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine

Portable Design

Portable handheld design makes welding more convenient
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine

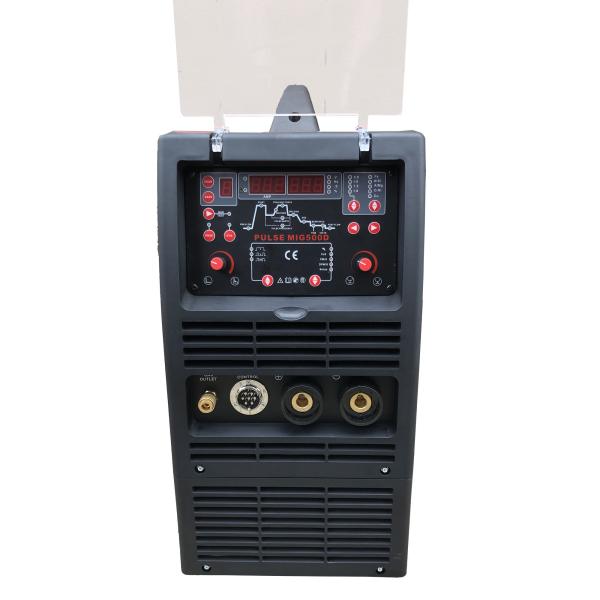

Digital Display

The welding machine panel design is simpler, digital display data, and current and voltage control are more accurate.
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine

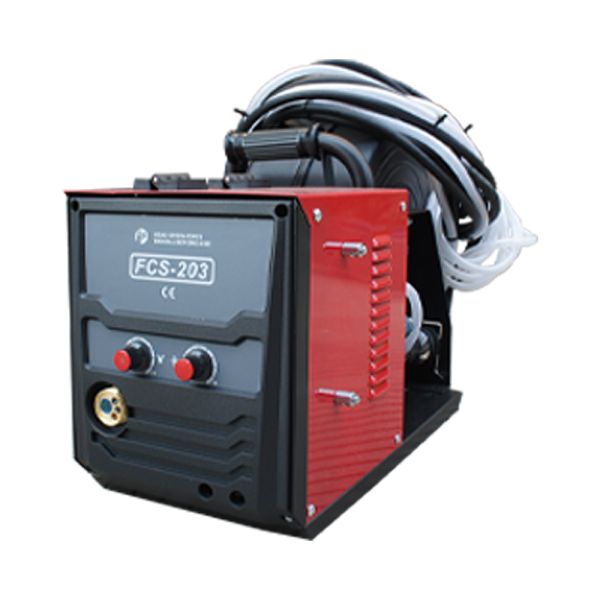

External Wire Feeder

The external wire feeder makes the welding machine more stable when performing high-power welding operations.
380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.

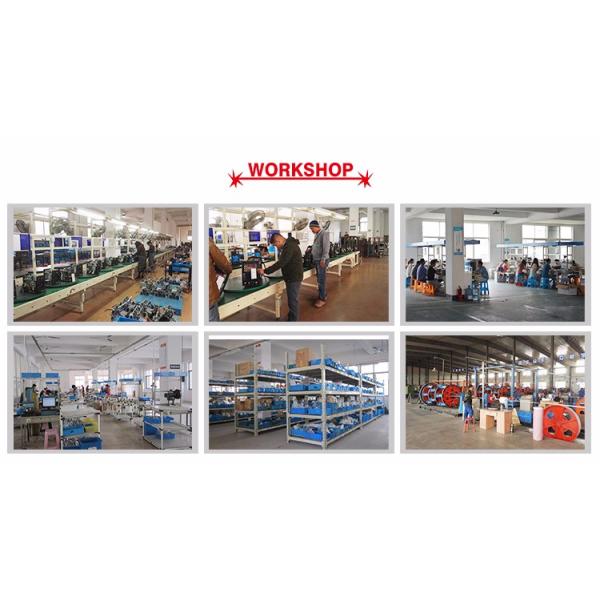

We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment,talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business
success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
