Specifications
condition :
New
Output Power :
1200W,1500W,2000W,3000W
usage :
metal welding,metal cutting,rust removal,clean
Place of Origin :
Beijing, China
Brand Name :
ALAND
Wavelength :
1080nm
focal spot diameter :
0.5-3mm
dimensions :
900*600*980mm
warranty :
1 Year
laser source brand :
MAX
laser head brand :
Other
servo motor brand :
Other
guiderail brand :
Other
control system brand :
Other
weight (kg) :
165 KG
key selling points :
Multifunctional
Model :
FR-LA-1500
Power Supply :
1*220V,50V60Hz
Rate Input Capacity(KVA) :
8
Rate Input Current(A) :
36
Laser power :
1500W
output power stability :
2%
Welding depth of fusion :
0.5-3mm
Welding seam :
≤3mm
Welding speed :
0-120mm/s
Dia of wire :
0.8,1.0,1.2
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Other, Advertising Company
Machinery Test Report :
Not Available
Video outgoing-inspection :
Not Available
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Bearing, Gear
Description

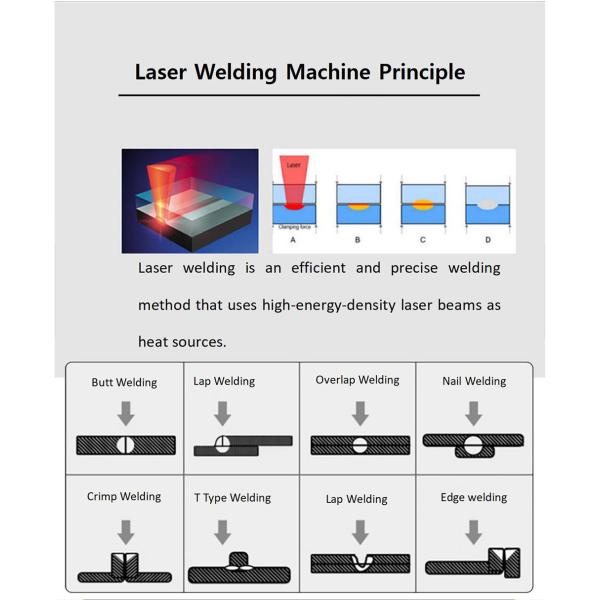

1. Introduction to welding machine
Laser welding is an efficient and precise welding method that uses high-energy-density laser beams as heat sources. Laser welding is one of the important aspects of the application of laser material processing technology. In the 1970s, it was mainly used for welding thin-walled materials and low-speed welding. The welding process is of the heat conduction type, that is, the laser radiation heats the surface of the workpiece, and the surface heat diffuses to the interior through heat conduction. By controlling the width, energy, peak power and repetition frequency of the laser pulse and other parameters to melt the workpiece and form a specific molten pool. Due to its unique advantages, it has been successfully used in precision welding of micro and small parts.
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
2. Attribute table
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
Model
FR-LA-1500
FR-LA-2000
FR-LA-3000
Power Supply
1*220V,50V60Hz
1*220V,50V60Hz
3*380V,50V60Hz
Rate Input Capacity(KVA)
8
9
13
Rate Input Current(A)
36
41
20
Laser power
1500W
2000W
3000W
output power stability
2%
2%
2%
Welding depth of fusion
0.5-3mm
0.5-4mm
0.5-5mm
Welding seam
≤3mm
≤4mm
≤5mm
Welding speed
0-120mm/s
0-120mm/s
0-120mm/s
Dia of wire
0.8,1.0,1.2
0.8,1.0,1.2,1.6
0.8,1.0,1.2,1.6
Weight
165kg
170kg
175kg
L*W*H(mm)
900*600*980
900*600*980
900*600*980

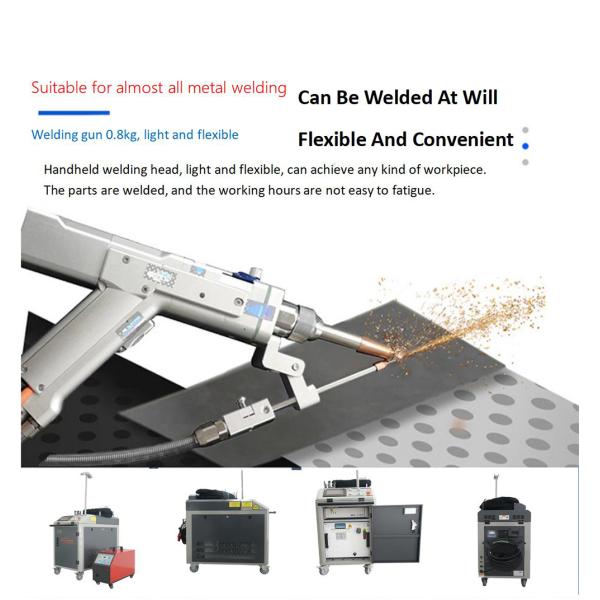

3. Analysis of product buying points
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding

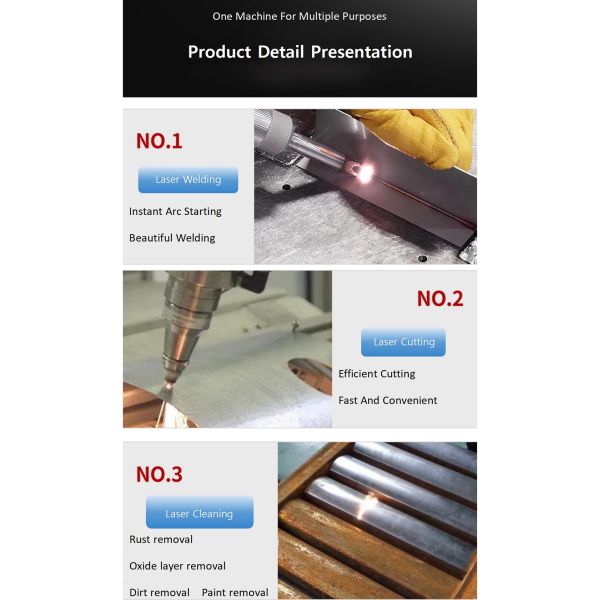

4. Application scenarios
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding

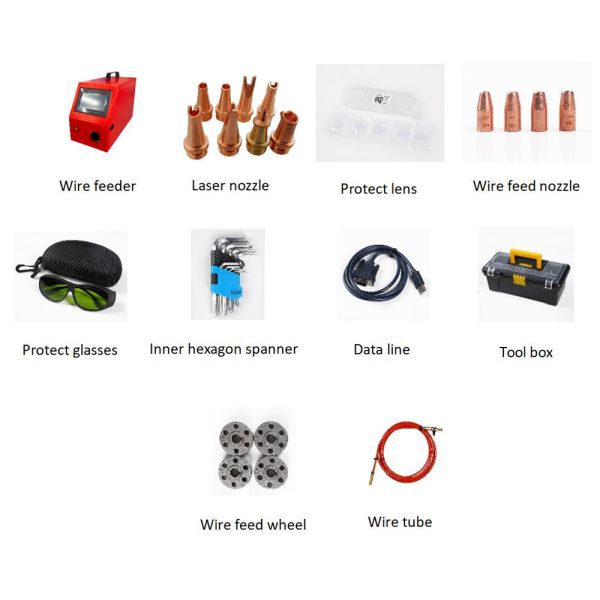

5. Product configuration
Serial Number
Name
Specification
Quantity
1
Wire feeder
SUP-AMF-A
1
2
Laser nozzle

2
3
Protect lens
0.8/1.0V、1.2V/1.6V、1.2/1.6U
2 each
4
Wire feed nozzle
0.8/1.0/1.2/1.6
1 each
5
Protect glasses
AS-12/AS-20D/BS-16/CS-12/ES-12/FS-16/Cutting/C
1
6
Inner hexagon spanner
D18T2
5
7
Data line

1
8
Tool box

1
9
Wire feed wheel
RS232
1
10
Wire tube

1
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
6. Buyer comments
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
7. Company introduction
1200W/1500W/2000W/3000W 4 in 1 Laser Double Axis Handheld Welding Laser Machine Water Cooling Laser Welding
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment,
talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business
success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you
together.
