Specifications
Brand Name :
NANYA
Model Number :
EC700-A~EC2900-A
Certification :
CE,TUV,SGS, ISO9001
Place of Origin :
Guangdong, China(mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, Cash
Supply Ability :
1000sets/year
Delivery Time :
Normally 45-75 days
Packaging Details :
Export Standard Packing
Raw Material :
Waste Paper Pulp
Capacity :
600~3000 Pcs/H
Forming Type :
Reciprocating
Products :
Egg Tray, Egg Box, Fruit Tray...
Autoamtion :
Fully-automatic
Voltage :
220V - 440V
Warranty :
12 months
Dimension :
Depend on Capacity
Description

Medium Capacity Recycle Paper Egg Tray Making Machine with Dryer

Specifications:

Model Type

EC700-A

EC1000-A

EC1500-A

EC1900-A

EC2400-A

EC2900-A

Capacity

700pcs/hour

1000pcs/hour

1400pcs/hour

1800pcs/hour

2300pcs/hour

2800pcs/hour

Workshop

Requirement

250m2

250m2

350m2

500m2

500m2

600m2

Electricity

Consumption

~35kw

~40kw

~70kw

~85kw

~110kw

~140kw

Electricity

Installed

50kw

60kw

100kw

130kw

170kw

210kw

Material

Consumption

40~45kg/h

55~70kg/h

80~100kg/h

80~100kg/h

130~150kg/h

170~180kg/h

Water

Consumption

150~180kg/h

200~300kg/h

300~400kg/h

400~500kg/h

500~600kg/h

600~700kg/h

Worker Requirement

3~4person

3~4person

4~5person

4~5person

4~5person

5~6person

Container Requirement for Shipment

2x 40HQ

2 x 40HQ

4 x 40HQ

4 x 40HQ

5 x 40HQ

6 x 40HQ

Forming Machine

(Reciprocating Type)

plate size 1200*400mm 3pcs/time

plate size 1600*400mm 4pcs/time

plate size 1200*800mm 6pcs/time

plate size 1600*800mm 8pcs/time

plate size 2000*800mm 10pcs/time

plate size 2400*800mm 12pcs/time

Drying Line

16x2.2x2.4m
1-Layers

16x2.6x2.4m
1-Layers

26x2.2x2.4m
1-Layers

26x2.6x2.4m
1-Layers

26x3.0x2.4m
1-Layer

30x3.4x2.4m
1-Layers

Remarks:
1. The Capacity calculated base on 30-packed egg tray (size 300x300mm, weight 65g~70g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant .

Details for Egg Tray Lines:

  1. Fully Automatic Egg Tray Production Line, with high automation, save labor cost.
  2. Including pulping system, reciprocating forming machine, dryer, vacuum system, air compressor system.
  3. The raw material is waste paper pulp, recycle paper, waste carton, used newspaper.
  4. Fuel choice for dryer: Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal
  5. Application: egg trays, seeding trays, egg boxes, fruit trays, cup carriers and disposable medical care products.
  6. By changing Moulds, the same machine can make different type of products.

Our Guarantee and More Information:

  1. Status: Brand new
  2. Product Type: Egg Tray Machine
  3. Processing Type: Pulp Molding Machine
  4. Place of origin: Guangdong China
  5. Brand: NANYA
  6. Model Type: EC700-A~EC2900-A
  7. Voltage: 220V - 440V
  8. Approval: CE, TUV,SGS, ISO9001
  9. Warranty: 12 Months
  10. After-Sale Service: Engineers available to service machinery overseas

Machine Glance:

Medium Capacity Recycle Paper Egg Tray Making Machine with Dryer

Applications:

  1. Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;
  2. Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;
  3. Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items
  4. Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

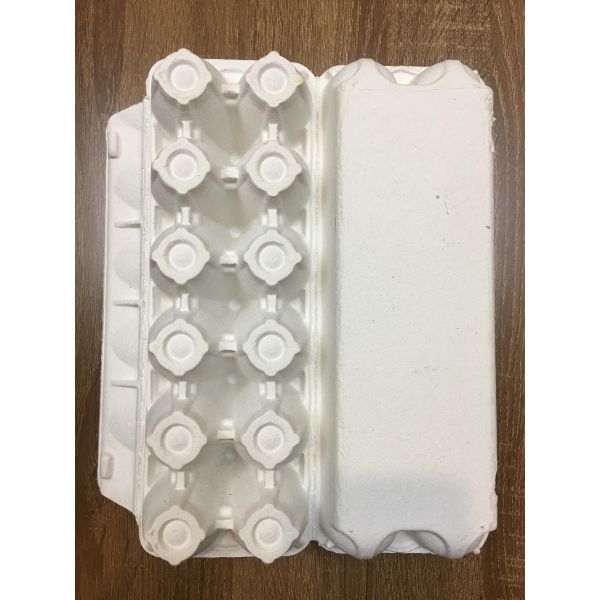

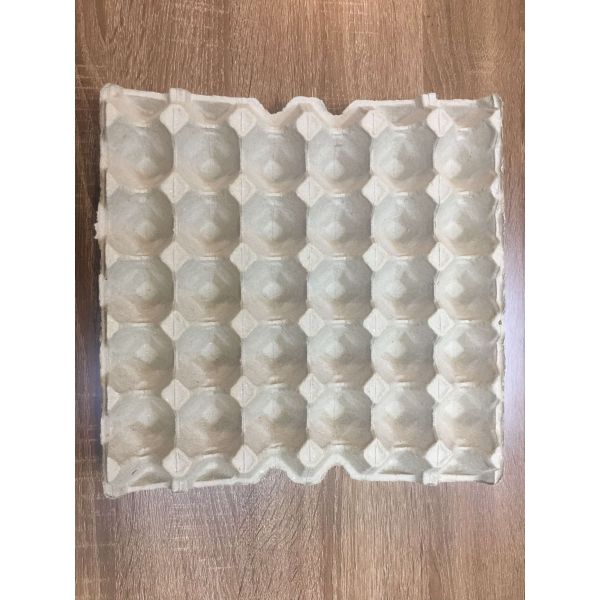

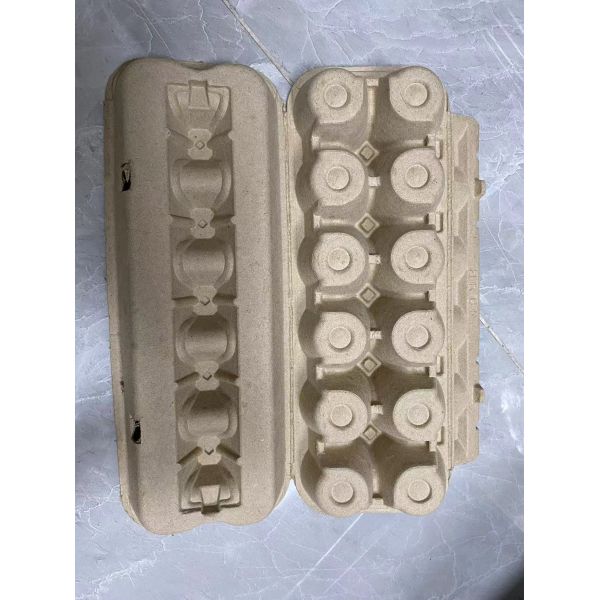

The below is one type of egg tray made by our machine, by changing moulds, the machine can make different products.

Medium Capacity Recycle Paper Egg Tray Making Machine with DryerMedium Capacity Recycle Paper Egg Tray Making Machine with Dryer

Competitive Advantages:

  • Quality Guarantee: Established in 1994, NANYA has rich experience in this pulp molding field;
  • Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
  • NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
  • NANYA factory covers an area of 40,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 80 countries and regions;
  • Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.
  • Good Price: We are the factory and we make the machines. The price offered by us is quite honest and fair.
  • Good Service: We will reply your enquiry and questions within 24 hours.

Business Terms:

Payment Terms 30% down payment before production; 70% balance payment before delivery.
Delivery Terms FOB Guangzhou, China. (CNF and CIF are also available.)
Delivery Time 45~75 days
Package Export Standard Packing
Warranty 12 months
Installation Overseas engineering service is available
Quotation Validity 90 days after the offering date
Aftersales Service We will send some spare parts for hot press use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation.
