Specifications
Brand Name :
NANYA
Model Number :
TA-01B
Certification :
CE
Place of Origin :
China(mainland)
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T, L/C, Cash or western Union
Supply Ability :
100 sets/year
Delivery Time :
60-120 Days
Packaging Details :
Export Standard Packing
Name :
Pulp Molding Equipment
Heating Method :
Electricity / Conduction oil
Capacity :
30~40kg/h
Drying :
Thermoforming
After-Sale Service :
Engineers available to service overseas
Applications :
Tableware / Dinnerware
Automation :
Automatic
Raw Material :
Virgin Pulp, Bagasse etc
Control by :
PLC + Touchscreen
Dimension :
Depends on the production capacity
Description

Automatic Virgin Pulp Molding Equipment Tableware Thermoforming Machine

Pulp Molding Equipment Descriptions:

  • Product Type: Tableware Making Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: TA-01B
  • Voltage: 220V-440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas

Pulp Molding Equipment Specifications:

Model Type

 TA-01B
Forming machine YC040
Height of product available ≤100mm

Capacity

 30~40kg/h

Workshop Requirement

 ≥300㎡

Electricity Consumption for Heating

 70~100KWH

Electricity Installed(Except of heating part)

 18KW

Working Cycle

30 to 80 seconds adjustable

(different base on products)

Vacuum input required

Vacuum pressure: -0.08~-0.06MPa;

Sucking rate: 15m3/min.
Compressed air input required

Pressure: 0.5~0.6MPa;

Flow≥2.5m3/min.

Worker Requirement

 4-5 people/shift

Forming Type

 Vacuum suction

Drying Method

 Thermal forming (Drying in mold)

Notes:

  1. The Capacity calculated base on 8” round dish (weight ~16g). The capacity may be different for other products.
  2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.


Pulp Molding Equipment Advantages:

  • Overseas technical support available
  • Proprietary technology
  • SGS Supplier Assessment Certificate
  • CE Certificate
  • Nanya - Chinese famous trademark
  • 30 years experience in this field, Chinese reliable supplier, supported by the government and university.

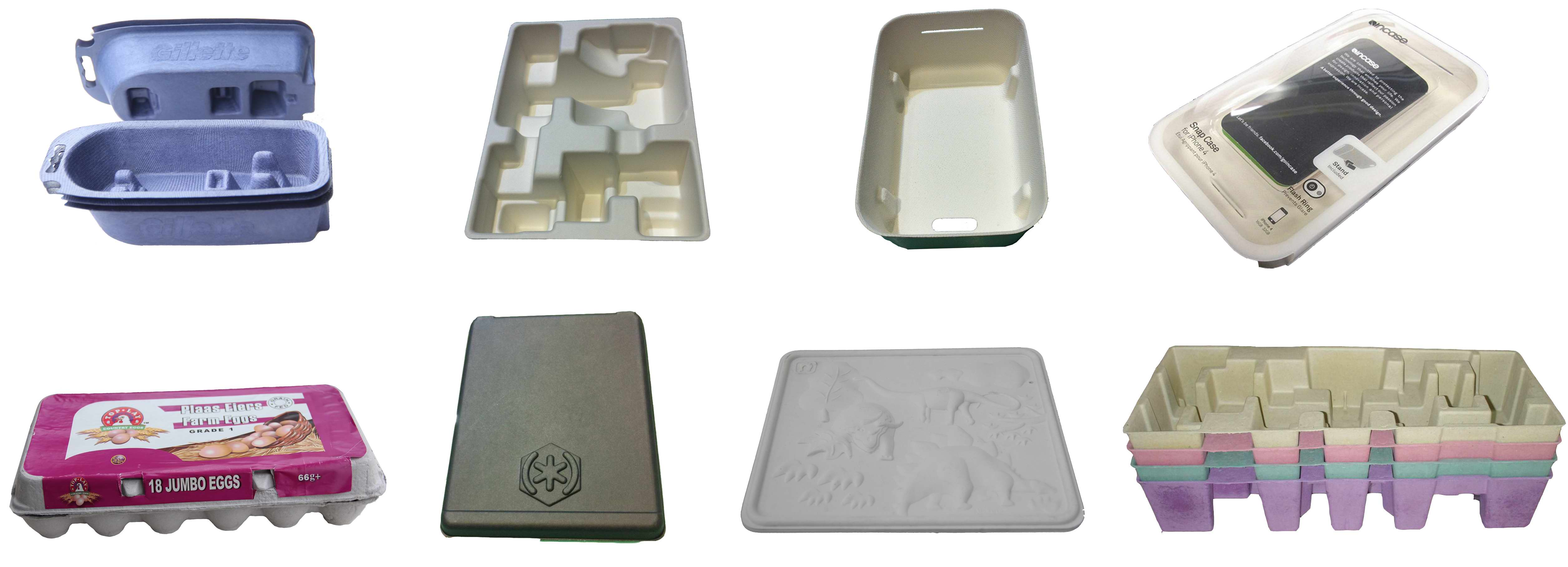

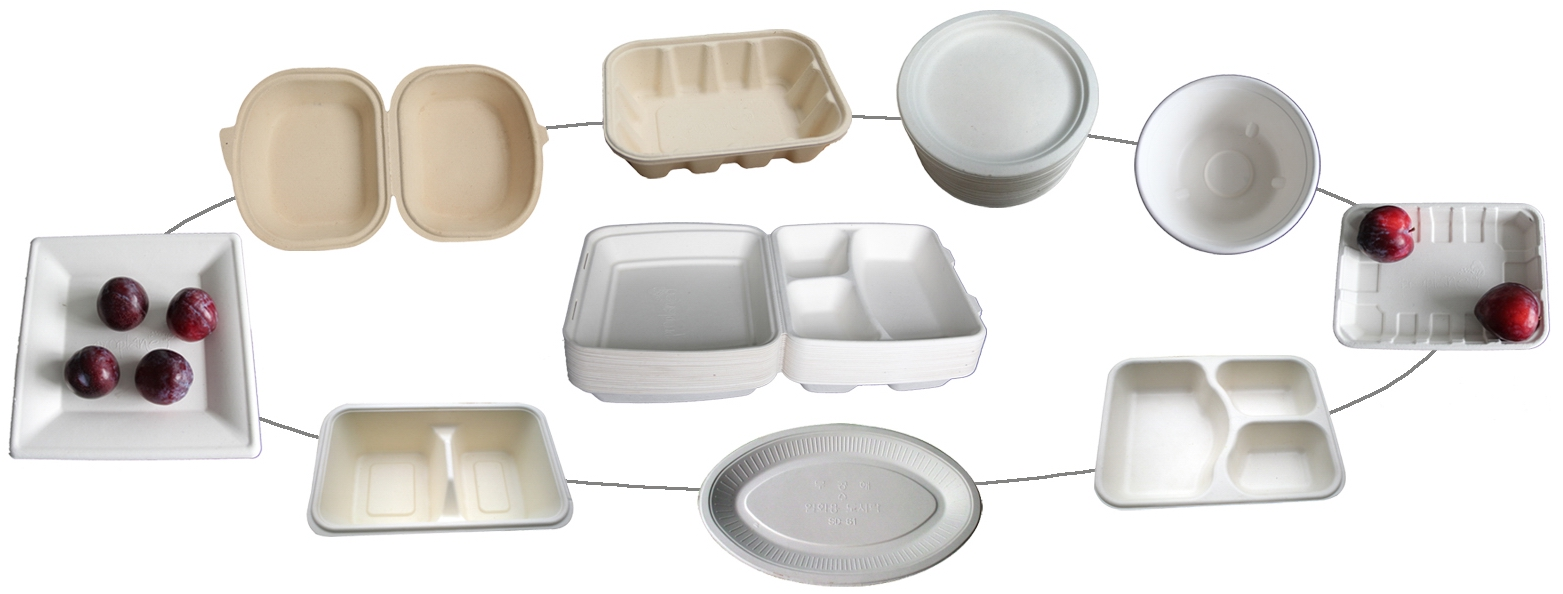

Pulp Molding Equipment Applications:

Food packaging Bowl, plate,sushi tray,clamshell, fork, knife,cup,spoon..

Artware

Mask, Christmas balls, Easter Eggs , boutiques…

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

High quality packages

Mobile phone package, camera package,
Automatic Virgin Pulp Molding Equipment Tableware Thermoforming Machine
Automatic Virgin Pulp Molding Equipment Tableware Thermoforming Machine

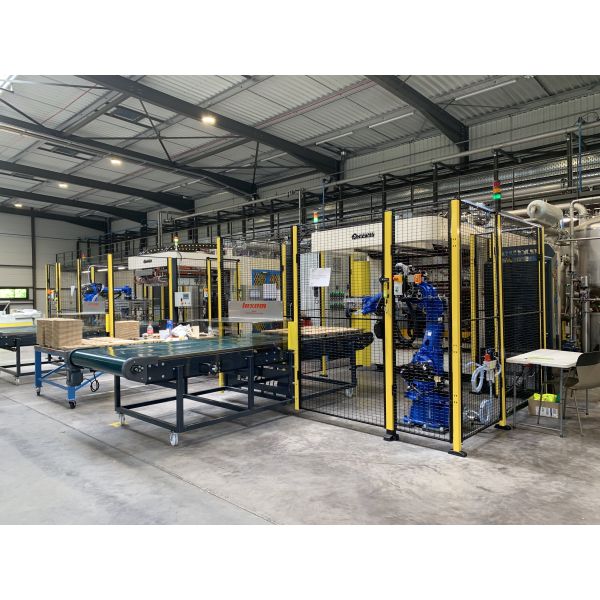

Machine Glance:

Automatic Virgin Pulp Molding Equipment Tableware Thermoforming Machine

Youtube Video Link:

https://www.youtube.com/watch?v=NgZbUYm_IjE

Business Terms:

NO. ITEM DESCRIPTION
1 Payment Terms 30% down payment by T/T,
70% before shipment by T/T or L/C at sight
2 Delivery Terms FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3 Delivery Time 60~120 days
4 Packages Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.
5 Installation Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.Engineer instruction fee is USD200/day each person
6 Warranty 12 months after installation
7 After service
  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8 Quotation Validity

90 days after the offering date
