Specifications
Conductor Material :
Copper
Insulation Material :
PVC
Model Number :
RV Series
Brand Name :
Sanco Cable
Place of Origin :
Hunan, China
Application :
Underground, Underground, Housing Buildings Control panels Appliances
Conductor Type :
Stranded, Stranded
Type :
Insulated, BV, BLV, BVR, BVV, BLVV, BVVB, BLVVB, RV, RVS, RVB ,RVV, RVP, RVVP
Product name :
Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire
Size :
0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10
Insulation :
PVC
Conductor Materials :
Copper
Color :
Yellow Green, Yellow, Green, Red, Blue and etc..
Rated Voltage :
450/750V,300/500V or lower
Samples Free :
Yes
MOQ :
500
Description

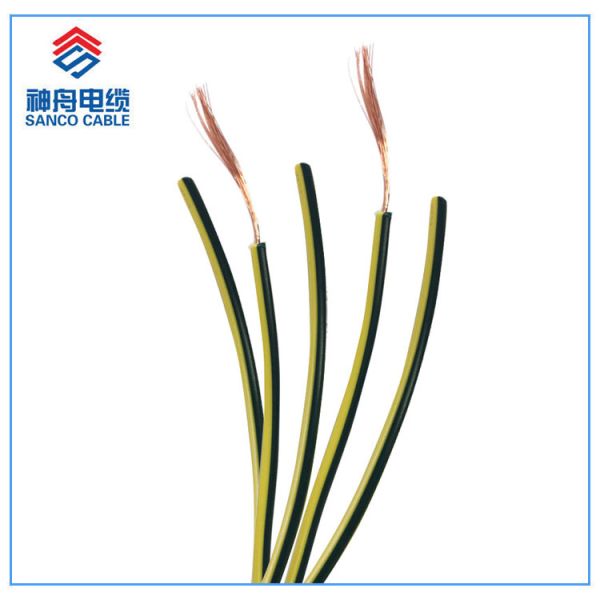

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Specification:

• Sample free • 100% pure copper • 100% virgin cable compound

• Fast delivery time • Reasonable price • More than 20 years experience

Application and Standard:

(1)The flex PVC hook-up wire cable can be produced and provided according to standard IEC60227,BS6004,BS6005.

(2)The flex PVC hook-up wire cable belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.

Working condition:

(1)The flex PVC hook-up wire cable working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

(2)Enviroment temperature of laying should be not less than 0℃

(3)Rated voltage U0/U is 450/750V,300/300V,300/350V

Category:

(1)According to the conductor type, including solid conductor PVC insulated electrical wire cable, standed PVC insulated wire cable, Flexible PVC insulated wire cable with different colors.

(2)According to its shape, including flat wire cable, round wire cable, etc. with different colors.

(3)Accoding to its core number, including single core wire cable, multi-core wires cables , etc. with different colors.

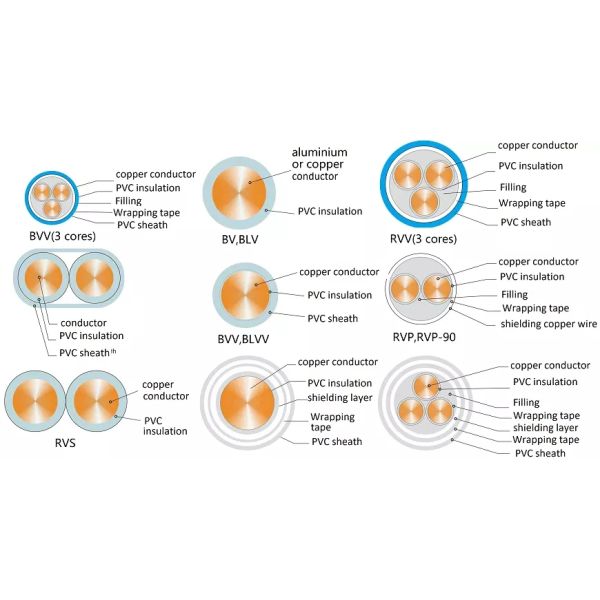

Cable Structure:

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Technical Parameters:

Nominal Section

Insulation Thickness

Average Outer Diameter

Min.Insulated Resistance at 70°C

Conductor Max.DC Resistance at 20°C

mm2

mm

Lower Limit (mm)

Upper Limit (mm)

Ω/km

Ω/km

1.5

0.7

2.8

3.4

0.010

13.3

2.5

0.8

3.4

4.1

0.009

7.98

4

0.8

3.9

4.8

0.007

4.95

6

0.8

4.4

5.3

0.006

3.30

10

1.0

5.7

6.8

0.0056

1.91

16

1.0

6.7

8.1

0.0046

1.21

25

1.2

8.4

10.2

0.0044

0.780

35

1.2

9.7

11.7

0.0038

0.554

50

1.4

11.5

13.9

0.0037

0.386

70

1.4

13.2

16.0

0.0032

0.272

95

1.6

15.1

18.2

0.0032

0.206

120

1.6

16.7

20.2

0.0029

0.161

150

1.8

18.6

22.5

0.0029

0.129

185

2.0

20.6

24.9

0.0029

0.106

240

2.2

23.5

28.4

0.0028

0.0801


Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Name

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Size(mm2)

0.5mm2, 0.75mm2, 1mm2,1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2..

Conductor

Copper Wire

Insulation

PVC Insulation

Rated Voltage

300/500V or 450/750V

Color

Yellow Green, Black, Red, White, Blue..

Package

100m/Roll or As customer's request

Sample Service

Support

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Company Informations

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

EXHIBITION & VISIT

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

CERTIFICATON

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

Honors:

1. Xiangtan Shenzhou Special Cable Co., Ltd Take the task of China manned space flight project develpment, construction and replated cooperation for Shenzhou 7 manned space flight completed success.

2. Xiangtan Shenzhou Special Cable Co., Ltd carried out the project China manned space project development, construction and test task, for first manned flight task complete success.

3. China Academy of Launch Vehicle Technology Institution: The "Arrow of God" project for the first time China's astronaut taking the outer space exploration.

WHY CHOOSE US

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

PACKING & SHIPPING

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

FAQ

Yellow Green Grounding Cable 0.5mm2 Earth Flexible PVC Copper Wire

1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.

5).Q:How can I get the samples?

A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
