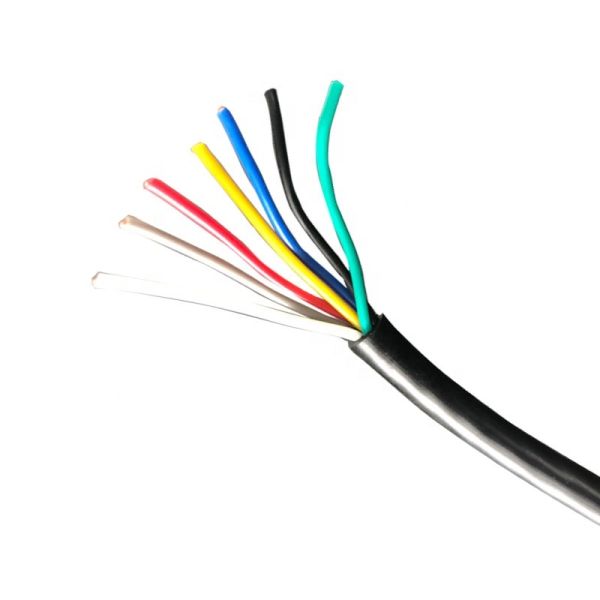

Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Multicore PVC Insulated Copper Stranded Flexible Cable
Specifications
Conductor Material :
Copper
Insulation Material :
PVC
Rated voltage :
300/300V, 300/500V, 300/300V, 300/500V
Model Number :
RVV Series
Brand Name :
Sanco Cable
Place of Origin :
Hunan, China
Application :
Underground
Conductor Type :
Stranded
Type :
Insulated, RVV
Product name :
Stranded Copper Multi Cores PVC Insulation Electrical Cable

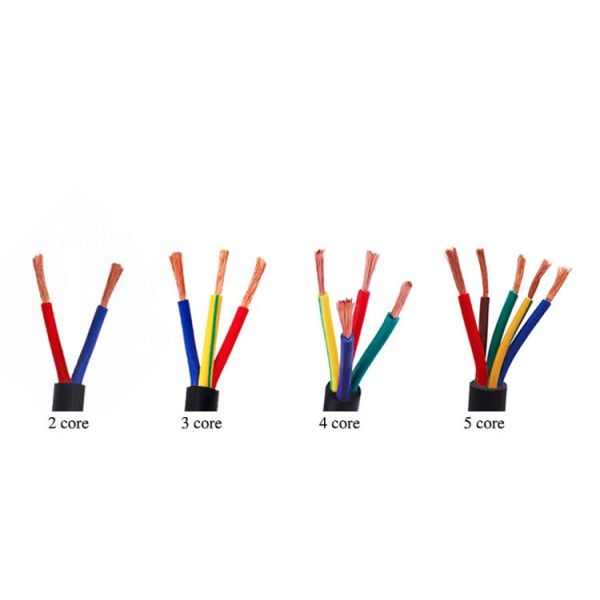

Core Numbers :
3 Cores, 4 Cores, 5 Cores, 6 Cores..
Size :
0.75mm2 1mm2 1.5mm2 2.5mm2 4mm2..
Color :
Yellow Green, Yellow, Green, Red, Blue and etc..
Insulation :
PVC
Sheath :
PVC
Samples Free :
Yes
Packing :
As your requirement
MOQ :
500
Description

Stranded Copper Multi Cores PVC Insulation Electrical Cable

Product Description

Specification:

• Sample free • 100% pure copper • 100% virgin cable compound

• Fast delivery time • Reasonable price • More than 20 years experience

Application and Standard:

(1)The flex PVC hook-up wire cable can be produced and provided according to standard IEC60227,BS6004,BS6005.

(2)The flex PVC hook-up wire cable belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.

Working condition:

(1)The flex PVC hook-up wire cable working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

(2)Enviroment temperature of laying should be not less than 0℃

(3)Rated voltage U0/U is 450/750V,300/300V,300/350V.

Category:

(1)According to the conductor type, including solid conductor PVC insulated electrical wire cable, standed PVC insulated wire cable, Flexible PVC insulated wire cable with different colors.

(2)According to its shape, including flat wire cable, round wire cable, etc. with different colors.

(3)Accoding to its core number, including single core wire cable, multi-core wires cables , etc. with different colors.

Process Flow:

Multicore PVC Insulated Copper Stranded Flexible Cable

Specifications:

Model Conductor Insulation Sheath Average Outer Diameter Condutor Max.DC resistance at 20℃ Mini.insulated Resistance(70℃)
RVV Cores x Nom.Area Thickness Thickness Lower Limit Upper Limit Non Metal-coated Metal-coated
mm2 mm mm Ω.km MΩ.km
2x0.75 0.6 0.8 5.7 7.2 26 26.7 0.011
2x1 0.6 0.8 5.9 7.5 19.5 20 0.01
2x1.5 0.7 0.8 6.8 8.6 13.3 13.7 0.01
2x2.5 0.8 1 8.4 10.6 7.98 8.21 0.009
3x0.75 0.6 0.8 6.0 7.6 26 26.7 0.011
3x1 0.6 0.8 6.3 8.0 19.5 20 0.01
3x1.5 0.7 0.9 7.4 9.4 13.3 13.7 0.01
3x2.5 0.8 1.1 9.2 11.4 7.98 8.21 0.009
4x0.75 0.6 0.8 6.6 8.3 26 26.7 0.011
4x1 0.6 0.9 7.1 9.0 19.5 20 0.01
4x1.5 0.7 1.0 8.4 10.5 13.3 13.7 0.01
4x2.5 0.8 1.1 10.1 12.5 7.98 8.21 0.009
5x0.75 0.6 0.9 7.4 9.3 26 26.7 0.011
5x1 0.6 0.9 7.8 9.8 19.5 20 0.01
5x1.5 0.7 1.1 9.3 11.6 13.3 13.7 0.01
5x2.5 0.8 1.2 11.2 13.9 7.98 8.21 0.009

Multicore PVC Insulated Copper Stranded Flexible Cable

Name

3 Core Stranded Copper RVV Electrical Wire Cable

Core Numbers

3 Cores, 4 Cores, 5 Cores..

Size

0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2

Conductor

Copper Conductor

Insulation

PVC Insulated

Rated Voltage

300/300V, 300/500V

Color

 Black, White, Blue, Yellow, Red, Green..

Multicore PVC Insulated Copper Stranded Flexible Cable

Multicore PVC Insulated Copper Stranded Flexible Cable

Company Informations

Multicore PVC Insulated Copper Stranded Flexible Cable

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.

Multicore PVC Insulated Copper Stranded Flexible Cable

EXHIBITION & VISIT

Multicore PVC Insulated Copper Stranded Flexible Cable

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India...

Multicore PVC Insulated Copper Stranded Flexible Cable

As a professiable wire and cable manufacturer, Xiangtan Shenzhou Special Cable CO.,LTD has exported the products to US, Venezuela, India, Vietnam, Bengal, Africal and some other countries. We warmly weclome the delegation from Ezeagu Goverment of Nigeria visit our factory in 2017, they are long-time partner of our company.

Multicore PVC Insulated Copper Stranded Flexible Cable

To meet customer's demand,we have: 1.Advanced R&D staff, 2.Professional transport team, 3.High-quality engineering installtion team, 4.Professional talented technicians group, 5.International sales department:6 person, 6.Domestic sales:15 person, 7.QC team.
