3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
3Core Cable Bv 105 Degrees Pvc Wire
Specifications
Conductor Material :
Copper
Insulation Material :
PVC
Model Number :
BV RV Series
Brand Name :
Sanco Cable
Place of Origin :
Hunan, China
Application :
Overhead, Connection cable or wire of rated voltage 450/750V
Conductor Type :
Copper
Type :
Insulated, BV, BLV, BVR, BVV, BLVV, BVVB, BLVVB, RVS, RVB ,RVV, RVP/RVP-90, RVVP
Product name :
105 Degrees Pvc Wire
Executive Standard :
GB/T5023-2008, JB/T 8734-2012
Color :
As Your Requirement
shipping mode :
Sea Shipment /Air Shipment
Other name :
Bv Wire Cable
Rated Voltage :
300V
Certification :
ROHS
Bending radius of cable :
D≤25mm
MOQ :
500
Description

3Core Cable Bv 105 Degrees Pvc Wire

Application

The cable is used as connection cable or wire of rated voltage 450/750V or lower for power plants ,

fixed wiring and flexible connection for electrical appliances.

Type and Name

Type name Executive standard
60227IEC01(BV)

cable with hard single conductor,

without sheath for general purpose

 GB/T 5023-2008
GB/T5023.3-2008
60227IEC02(RV)

cable with soft single conductor,

without sheath for general purpose
60227IEC05(BV)

cable with solid single conductor,

without sheath at 70℃ of conductor temperature

for interior wiring
60227IEC06(RV)

cable with soft single conductor ,

without sheath at 70℃ of conductor

temperature for interior wiring
60227IEC07(BV-90)

cable with solid single conductor ,

without sheath at 90℃ of conductor

temperature for interior wiring
60227IEC08(RV-90)

cable with soft single conductor ,

without sheath at 90℃ of conductor

temperature for interior wiring
60227IEC10(BVV) light type with PVC sheath GB/T 5023.4-2008
60227IEC52(RVV) light type soft wire with PVC sheath GB/T5023.5-2008
common soft wire with PVC sheath

soft cable with oil-proof and shielding ,

PVC sheath

GB/T5023.7-2008
60227IEC75(RVVY)

soft cable with oil-proof and non-shielding,

PVC sheath

BV

wire with copper core,

PVC insulation
BLV wire with al core PVC sheath
BVR

soft wire with cu core,

PVC insulation
BVV

round cable with al core,

PVC insulation
BLVV

round type cable with copper core,

PVC insulation

 JB/T8734.2-2016
BVVB

flat type cable with cu core,

PVC insulation
BLVVB

flat type cable with al core,

PVC insulation
RVS

soft wire with cu core,PVC insulation,

stranding and connection

 JB/T8734.3-2016
RVB

soft wire with PVC insulation,

flat without sheath
RVV

soft cable with PVC insulation and

PVC sheath
RVP

soft wire with cu core,PVC insulation

and shielding

 JB/T8734.5-2016
RVP-90

soft wire with cu core heating-resisting 90℃,

PVC insulation and shielding
RVVP

soft cable with cu core,PVC insulation and shielding

,PVC sheath

Note:1.we also produce the cables with ROHS standard,removal of lead,

cadmium,mercury hexavalent chromium,polybrominated biphenylpbdes substances

may cause harm to human body health,to be no heavy metals,environmental friendly,non-toxic.
2.Prefix AZ-,ZB-,ZC- is added to the original type for indication of flame retardant cable,

for example ZB-RVVP(Soft cable with cu core,PVC insulation,PVC sheath,

shielding and B-Class flame retardance.
3.Prefix NH- is added to the original type for for indication of fire resistant cable,

for example NH-BV(Wire with Cu core,PVC insulation and fire resistance)

,ABN-BVR(soft cable with cu core,PVC insulaiton,B-Class flame retardant and fire resistance)

Using features

1.Long-term Max. working temperature allowed by cable conductor
60227IEC(BV-90).................................................................90℃
60227IEC(RV-90).................................................................90℃
other type.............................................................................90℃

2.Enviroment temperature of laying should be not less than 0℃
Bending radius of cable D≤25mm ........................................≥4D
D>25mm ..............................................................................≥6D
(D is outer diameter of cable)

3.Rated voltage U0/U is 450/750V,300/300V,300/350V

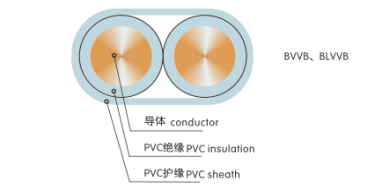

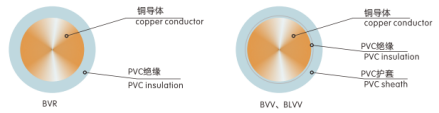

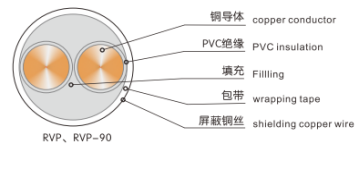

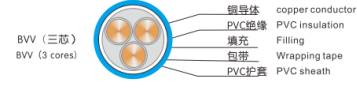

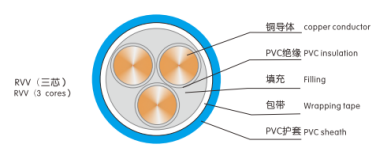

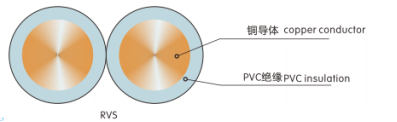

Product structure figure:

3Core Cable Bv 105 Degrees Pvc Wire3Core Cable Bv 105 Degrees Pvc Wire

3Core Cable Bv 105 Degrees Pvc Wire3Core Cable Bv 105 Degrees Pvc Wire

3Core Cable Bv 105 Degrees Pvc Wire

3Core Cable Bv 105 Degrees Pvc Wire

Company Informations

3Core Cable Bv 105 Degrees Pvc Wire

Factory

Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products:

1.High temperature wires cables,PTFE cable,FEP cable,Fluoroplastic wire

2.Rubber cable,welding cable,Mine cable,submersible cable

3.Hook up wire,electronic cable

4.Salor cable,control cable,power cable and so on

Team

To meet customer's demand,we have:

1.Advanced R&D staff

2.Professional transport team

3.High-quality engineering installtion team

4.Professional talented technicians group

5.International sales department:6 person

6.Domestic sales:15 person

7.QC team

3Core Cable Bv 105 Degrees Pvc Wire

Workshop

1.Production line:9 line

2.Month production capacity:90000m

3.Production workers:about 250 persons

3.Annual production capacity:RMB20million

4.Advanced electrical,chemical and mechanical properties test equipment

Warehouse

More than 600 square meters finished product warehouse.Xiangtan shenzhou special cable CO., ltd also engaged in

1.Low smoke zero halogen compounds

2.Xlpe compound

3.Soft PVC compound for cable insulation or sheath

3Core Cable Bv 105 Degrees Pvc Wire

Product test

We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.

Our Customer

3Core Cable Bv 105 Degrees Pvc Wire

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.

3Core Cable Bv 105 Degrees Pvc Wire

Why Choose us

3Core Cable Bv 105 Degrees Pvc Wire

Awards and Merits

We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:

No.

Item

Faulty Products

Our products

1.

Length

Insufficient length

Sufficient

2.

Wire drawing

thick at both ends and thin in the middle

Same from beginning to end

3.

Conductor

copper clad aluminum ,Copper clad brass

99.999% pure copper

4.

Insulation

Recycled compound

Virgin compound

If you want to know how to identify,welcome click here

Our Service

1.Free technical consultation service before, during, and after sales,help customers to choose right product

2.Free sample and design services

3.Fee service for any special monitor and conduct detection during manufacture process

4.Provide 100% free insurance for internal transportation;

5.OEM & ODM is welcome

6.Small order can be supplied

Packing & Shipping

3Core Cable Bv 105 Degrees Pvc Wire

100m/coil with

non-woven bag

 200m/Roll with film 500m with wooden drum

800m with

wooden iron drum

Packaging of wire

1• Plyethylene film winding in roll with non-woven bag or carton box for small diameter wires(100m/roll)

2• Packing in drum with plastic tray(300m/drum)

3• Wooden drums,fumigated wooden drums,Wooden iron drums for large diameter cable(500/drum)

• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
FAQ

3Core Cable Bv 105 Degrees Pvc Wire

1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
