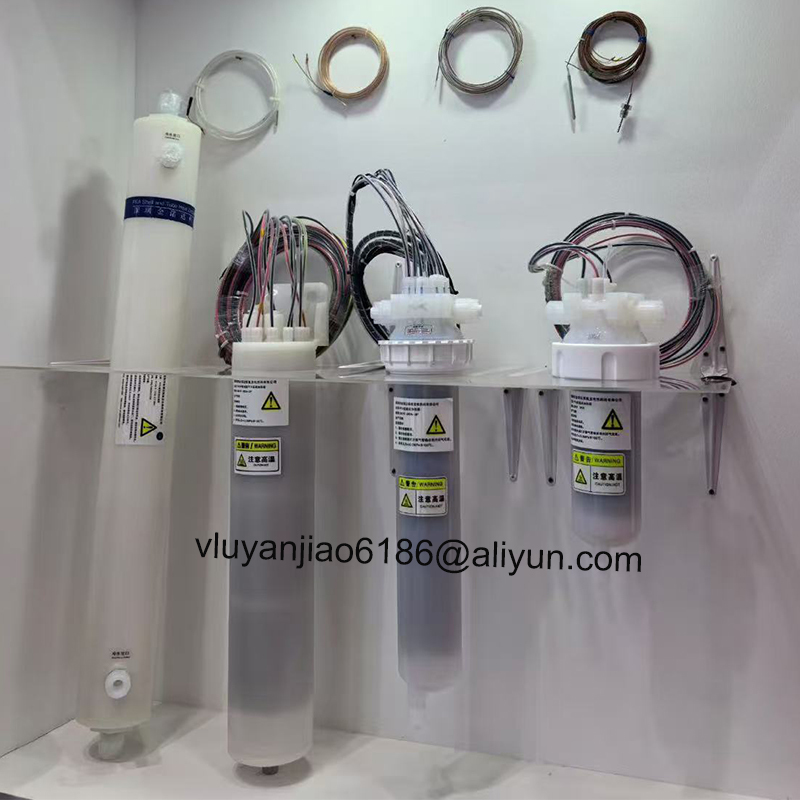

400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
Specifications
Model Number :
IH 036
Payment Terms :
T/T
Voltage :
230V(Customizable)Single Phase/400V 3 phase
Heater Applications :
Fluid Heating,Semiconductor,Photovoltaic,Surface Finishing,Electro-Plating
Price :
Negotiable
Power :
6KW
Material :
PFA
MOQ :
1 PCS
Delivery Time :
10-15 working days
Market :
Semiconductor,Life Sciences,Food & Beverage,Industrial
Supply Ability :
50 PC/Month
Name :
400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing
Brand Name :
Surplus
Certification :
ISO9001,CE
Place of Origin :
China
Packaging Details :
Wooden Case or Carton Box
Description

400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing

Overview

PFA in-line heater are desinged for hydrofluoric acid (HF), potassium hydroxide (KOH), and other chemistry compatible with PFA.

These PFA heaters push widely accepted high-purity materials to operating extremes while maximizing performance and reliability.

We has once again taken heating of high-purity liquids to a new level of performance and reliability.

We has once again taken heating of high purity liquids to a new level of performance and reliability. Heating liquids using high purity materials in a harsh environment requires special skills and knowledge that can only be gained from experience. For over 40 years, Our Engineers have been refining and improving the heated quartz bath and understand the critical needs of the Semiconductor and related industries. The sum of that knowledge has been incorporated into the PFA in-line heater to create products that not only perform, but simplify installation and maintenance as well. Exemplified by our long-standing ISO 9001 registration, our dedication to manufacturing process control assures that our customers receive uniformly high-quality products in a timely manner. We offers a wide range of standard and custom models to allow for easy integration into almost any application.

400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing

400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing

400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing

400V 3P 6KW PFA Inline Chemical Heaters For Semiconductor Manufacturing

Benefits

  • Heavy gauge pre-formed Inconel element can stand up to high stress conditions without breaking down
  • Power modulator monitors heater element temp and prevents heat buildup inside the housing
  • Sealed housing prevents chemistry from attacking internal components & provides secondary containment
  • Internal leak detect strip (requires external monitor) gives early detection of chemical leaks
  • All wiring shielded with teflon conduit to prevent chemical attack
  • Indirect heating design, no submerged heater elements
  • No N2 or gas purge required

Features

  • No O-Ring seals
  • All wetted surfaces are high purity PFA
  • PTFE housing for double containment
  • Maximized watt density for performance
  • Light weight construction
  • Small foot print enabled by unique design
  • Zero maintenance required
  • PFA fluid path, wide chemistry compatibility
  • High temperature capability 200°C+

Specifications

Heater
PFA In-line Chemical Heater
Wattages
1.5-12 kW
Process Chemistries
Dilute Hydrofluoric acids (DHF),
Buffered Hydrofluoric acids (BHF),
Buffered Oxide etch (BOE),
Alkaline Chemicals (TMAH, KOH, NAOH),
Fluorinated Solvents,
Hydrofluoric Acid,
Glycol, and much more.
Max Operating Temperature
180°C (consult factory
for higher temperatures)
Max Pressure
40 psi at 180°C
Voltages
200-400VAC,
single or 3 phase
model dependent
