RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
Specifications
Brand Name :
PTC
Model Number :
PTC-A6080-50W
Certification :
QS,CE
Place of Origin :
Shenzhen China
MOQ :
1pcs
Price :
Neg
Payment Terms :
Western Union, T/T, L/C, D/A, D/P
Supply Ability :
50000/M
Delivery Time :
3-30days
Packaging Details :
Carton Packing
Description

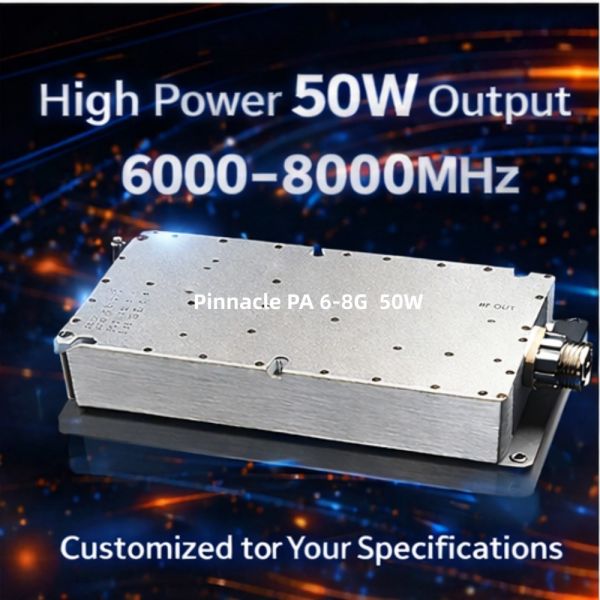

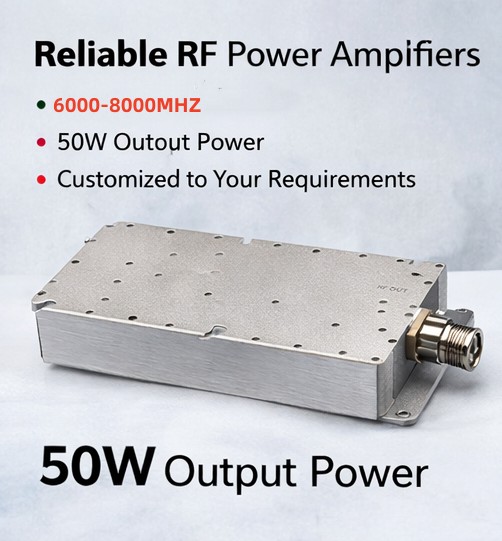

RF Power Amplifier Module - 50W, 6-8GHz
Professional 6-8GHz RF Module with 50W output power, designed for signal jamming, communication systems, and measurement applications.
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
Product Overview
This 6-8GHz RF Power Amplifier Module delivers 50W output power without requiring an external signal source. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.
Key Features
  • Ultra-Wideband Performance: Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers
  • Advanced GaN Technology: Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management
  • Built-in Protection: Integrated circuitry for over-temperature protection and VSWR protection to prevent damage from signal reflection
  • Compact & Rugged: Precision-machined aluminum alloy chassis designed to withstand harsh industrial and all relative environments
  • Customizable: Frequency range and output power can be customized per customer requirements
RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement
Applications
  • Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
  • Test & Measurement: Reliable lab-grade power source for EMC testing and antenna measurements
  • Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
  • Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection
Technical Specifications
Parameter Specification
Frequency Range 6-8GHz
Output Power (P_sat) ≥50W
Gain ≥50dB
In-band Gain Flatness ≤5.0dB
Working Current ≤5.5A
Connector SMA-Female
Power Supply & Control Interface DB7W2
VCC Power Supply & Maximum Voltage +28V, +32V
Dimension 180×90×25mm (excluding connectors)
Net Weight 1kg
Power Supply Wire Red+Black+Enable wire
Working Temperature -40℃ to +55℃
50W RF Amplifier Module Custom Signal Jammer Source High Power RF Module 8GHz WiFi6E Jammer Module Amplifier Module Manufacturer Amplifier Module Factory 400-8000MHz Amplifier Module Drone Jammer Amplifier Module Drone Jammer Amplifier Supplier
