400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
Specifications
Brand Name :
PTC
Model Number :
PTC-A4030-50W
Certification :
QS,CE
Place of Origin :
Shenzhen China
MOQ :
1pcs
Price :
Neg
Payment Terms :
Western Union, T/T, L/C, D/A, D/P
Supply Ability :
50000/M
Delivery Time :
3-30days
Packaging Details :
Carton Packing
Description

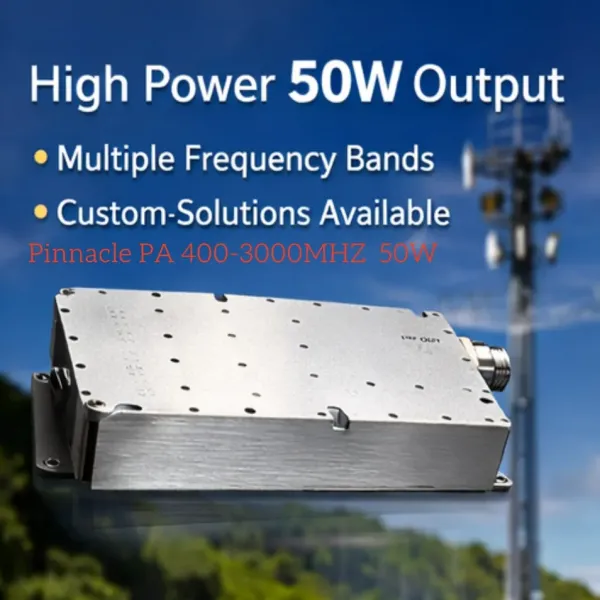

400-3000MHz Broadband Wide Band 50W RF Power Amplifier Module

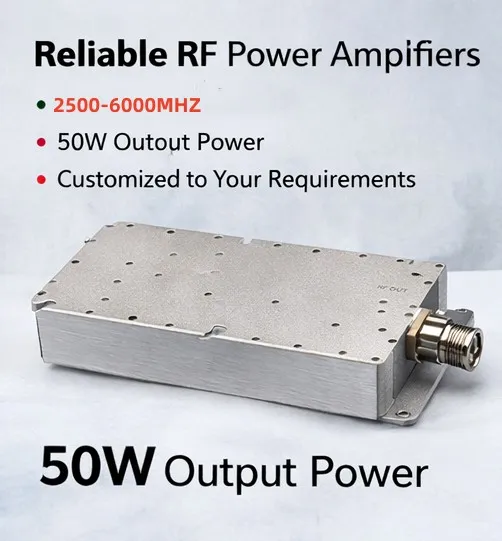

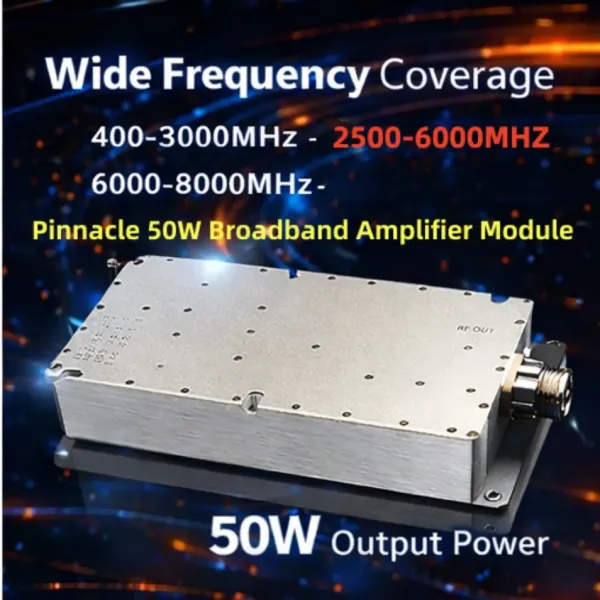

This 400-3000MHz RF Module 50W Power Amplifier is a no signal source power amplifier module delivering 50W output power. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module 400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
Key Features
Ultra-Wideband Performance
Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers.
Advanced GaN Technology
Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management.
Built-in Protection
Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection.
Compact & Rugged Design
Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial and relative evironments.
Customization Options
Frequency range and output power can be customized according to specific requirements.
400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module 400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
Applications
  • Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
  • Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
  • Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
  • Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection
Technical Specifications
Parameter Specification
Frequency Range 400-3000MHz
Output Power (P_sat) ≥50W
Gain ≥50dB
In-band Gain Flatness ≤5.0dB
Working Current ≤5.5A
Connector SMA-Female
Power Supply & Control Interface DB7W2
VCC Power Supply & Maximum Voltage +28V, +32V
Dimension 180×90×25mm (Not including connectors)
Net Weight 1kg
Power Supply Wire Red+Black+Enable wire
Working Temperature -40℃ to +55℃
50W RF Amplifier Module Custom Signal Jammer Source High Power RF Module 8GHz WiFi6E Jammer Module 400-8000MHz Amplifier Module RF Power Amplifier Broadband Amplifier
