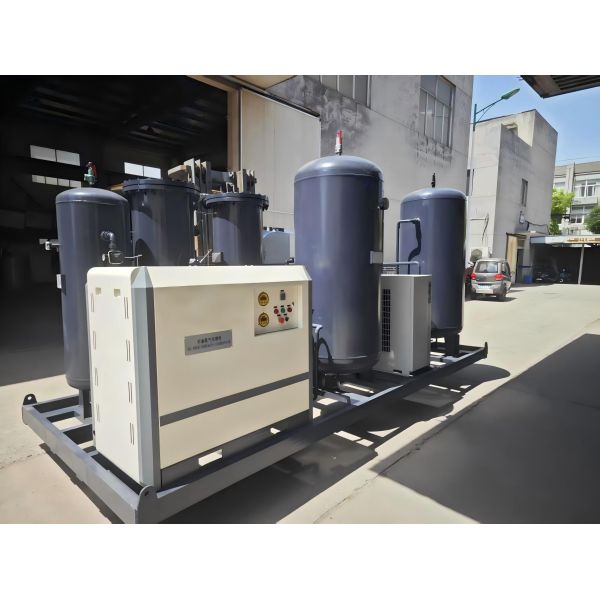

On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
Specifications
Brand Name :
Joshining
Certification :
GB
Place of Origin :
China
MOQ :
1
Price :
USD58800-65000
Payment Terms :
T/T
Supply Ability :
20
Technology :
Dual-Tower PSA (Pressure Swing Adsorption)
Nitrogen Purity :
99.99%
Compatible Laser Power :
Up to 30KW
Output Pressure :
High-Pressure Optimized for Laser Cutting
Operating Schedule :
7 * 24 Hours
Molecular Sieve Lifespan :
6 - 8 Years
Description
On-Site Nitrogen Generator for Fiber Laser Cutting: Achieve Oxidation-Free Cutting & Save 90% Cost
Stop relying on expensive liquid nitrogen. Our nitrogen generator is an all-in-one high-pressure auxiliary gas supply system designed for fiber laser cutting machines under 30KW. By utilizing advanced Low-Pressure Dual-Tower PSA (Pressure Swing Adsorption) technology, this system delivers consistent, high-purity (99.99%) nitrogen directly to your cutting head.
Key Benefits
  • Massive Cost Reduction: Replace liquid nitrogen and reduce your operational costs by 50% to 90%
  • Rapid ROI: Most users achieve a full return on investment within 14 to 24 months
  • Superior Edge Quality: Specifically engineered for oxidation-free cutting of stainless steel, carbon steel, and aluminum
  • Unmatched Durability: High-quality Carbon Molecular Sieves (CMS) provide a service life of 6-8 years under standard maintenance
  • Reliability: Engineered for industrial-grade, all-weather continuous operation (7*24h)
Application Versatility
Stainless Steel
Perfect replacement for liquid nitrogen, ensuring a bright, high-quality finish
Carbon Steel & Aluminum
M-Series supports mixed-gas cutting for superior thick plate processing
Burr-Free Aluminum
Achieve clean edges on aluminum alloys without additional post-processing
Multi-Material Versatility
Optimized for Stainless Steel, Carbon Steel, Galvanized Sheet, Aluminum Alloy, and Brass
Technical Specifications
Category BCP40 BCP60 BCP75 BCP90 BCP120 BCP150
Total Power (KW) 32 51 51 64 74 100
Air Compressor Power (KW) 22 37 37 (Two-stage) 45 (Two-stage) 55 (Two-stage) 75 (Two-stage)
Skid-mounted Size (mm) 4650*2000*2197 5400*2000*2500 5500*2000*2500 6000*2000*2500 6800*2000*2500 6800*2100*2500
Skid-mounted Weight (KG) 3300 4500 4800 7300 8000 8400
Non-skid-mounted Size (mm) 8100*1000*2400 10350*1200*2450 10350*1300*2450 10300*1400*2700 11100*1600*2800 11700*1700*2800
Non-skid-mounted Weight (KG) 2800 4020 4300 6300 7100 7400
Matched Laser Power (KW) 3 6 6 12 20 30
Max Flow Rate (m³/h) 40 60 75 90 120 150
Standard Performance Parameters
Pressure
2.5 MPa
Purity
99.99%
Dew Point
-20℃
Power Supply
220/380V 3P 50Hz (Customizable for other regions)
Pressure Vessel Standard
GB (Customizable: ASME U/ASME UM/NB/PED H/PED H1)
Mixed Gas Cutting
M-Series: Adjustable Nitrogen Purity, supports Mixed Gas Cutting
On-Site PSA Nitrogen Generator for Fiber Laser Cutting with 99.99% Purity and 90% Cost Saving
We focus on "Smart Manufacturing" to empower your production. Our systems are not just machines; they are comprehensive gas solutions. Integrated Design: A complete skid-mounted system including compression, purification, and boosting. Efficiency Focus: The more you cut, the more you save. Our economic efficiency scales with your production volume. Technical Support: Global-ready equipment designed for seamless integration with top-tier fiber laser brands.
