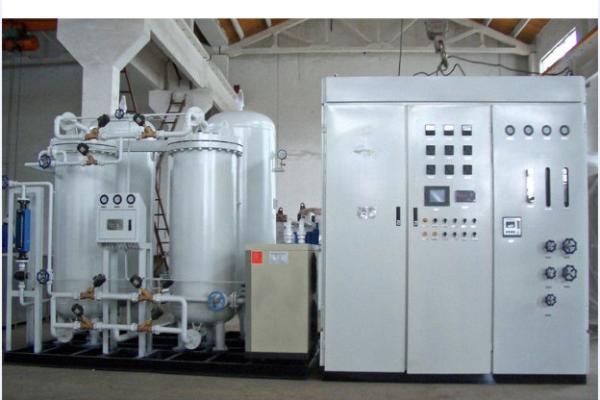

PSA Nitrogen Generator 5-5000Nm3/h 95-99.9995% Purity for Oil Gas
PSA Nitrogen Generator 5-5000Nm3/h 95-99.9995% Purity for Oil Gas
Specifications
Product name :
PSA nitrogen generator
Key word :
Nitrogen,nitrogen generator package
Capacity :
5-5000Nm3/h
Purity :
95%-99.9995%
Dew point :
-40, -70℃
Character :
Anti-oxidation
Figure :
Molecular sieves
Application :
Oil and gas, offshore
Brand Name :
SINCE-GAS
Model Number :
PN
Certification :
CE,ABS,CCS,BV,DNV,ASME,GOST,
Place of Origin :
Suzhou,China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
,L/C,T/T
Supply Ability :
1000 sets/per year
Delivery Time :
2 months after received down payment
Packaging Details :
Exported wooden case
Description
CE / ISO / SIRA Oil Gas PSA Nitrogen Generator Package System
Product Specifications
Attribute Value
Product name PSA nitrogen generator
Capacity 5-5000Nm3/h
Purity 95%-99.9995%
Dew point -40, -70℃
Character Anti-oxidation
Figure Molecular sieves
Application Oil and gas, offshore
PSA Nitrogen Generator Technology

PSA (Pressure Swing Adsorption) Technology is a mature air separation method that has been in use since the 1970s. We have supplied PSA plants to customers in over 56 countries worldwide.

PSA Nitrogen Generator 5-5000Nm3/h 95-99.9995% Purity for Oil Gas

Air consists of 78% nitrogen and 21% oxygen. PSA technology separates these components by adsorbing oxygen through carbon molecular sieves (CMS), leaving nitrogen as the product gas.

Three-Step PSA Process
  1. Adsorption: Compressed air passes through a CMS-filled vessel where oxygen is adsorbed, producing nitrogen gas.
  2. Desorption: When CMS becomes saturated, the process switches to a second vessel while the first vessel begins regeneration.
  3. Regeneration: Nitrogen from the active vessel purges the saturated vessel, preparing it for the next cycle.
PSA Nitrogen Generator 5-5000Nm3/h 95-99.9995% Purity for Oil Gas
Key Advantages
  • Proven Experience: Over 1000 nitrogen generators supplied worldwide
  • German Technology: Proprietary advancements in PSA technology
  • Automated Operation: Requires minimal personnel oversight
  • Energy Efficient: Optimized design for low power consumption
Technical Specifications
No Model Capacity (Nm3/h) Purity Power (KW) Overall size (mm)
1 PN-3-39 3 99.9% 0.5 1800×1400×1500
2 PN-5-29 5 99.5% 0.5 1800×1400×1500
3 PN-5-295 5 99% 0.5 1800×1400×1500
4 PN-8-295 8 95% 0.5 1800×1400×1500
5 PN-5-49 5 99.99% 0.5 1800×1400×1800
... Additional models available up to 5000Nm3/h capacity
Technical Parameters

Resource: Air
Pressure: 5-10 bar
Pressure dew point: ≤10°C
Oil content: ≤0.003mg/m3

Product Nitrogen:
Pressure: ≤9bar
Normal pressure dew point: ≤-40°C
Purity: 95%-99.9995%
Capacity: 5-5000Nm3/H

Why Choose Our PSA Nitrogen Generators?
  • Decades of manufacturing experience with proven reliability
  • CCS, TS certified for quality and safety compliance
  • Specialized in marine nitrogen generator systems
  • Advanced R&D team supporting installation and operation
  • 98% customer retention rate over 10 years

For complete specifications and custom solutions, please contact our technical team.
