Energy Saving PSA Nitrogen Generator 5-5000 Nm3/H for Food
Energy Saving PSA Nitrogen Generator 5-5000 Nm3/H for Food
Specifications
Name :
PSA Nitrogen Generator
Certificates :
BV,,CCS,ISO,TS
Capaicty :
5-5000 Nm3/h
Feature :
Energy Saving
Power supply :
220V,50Hz
Application :
Food Preservation
Brand Name :
Joshining
Model Number :
PN
Certification :
CE,ABS,CCS,BV,DNV,ASME,GOST,
Place of Origin :
Suzhou, China
MOQ :
Negotiable
Price :
Negotiate
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000 sets /per year
Delivery Time :
2 months after received down payment
Packaging Details :
Exported wooden case
Description
Energy Saving PSA Nitrogen Generator For Food Preservation 5-5000 Nm3/H
Product Specifications
Name PSA Nitrogen Generator
Certificates BV, CCS, ISO, TS
Capacity 5-5000 Nm3/h
Feature Energy Saving
Power supply 220V, 50Hz
Application Food Preservation
Operating Principle

The PSA Nitrogen Generator uses carbon molecular sieve as sorbent to produce nitrogen through Pressure Swing Adsorption (PSA) technology. Under specific pressure conditions, the carbon molecular sieve exhibits different adsorption capacities for oxygen and nitrogen, with significantly higher oxygen adsorption capacity than nitrogen. A PLC controls pneumatic valves to alternate between two towers for adsorption and desorption based on pressure changes, achieving oxygen/nitrogen separation to produce nitrogen at desired purity levels.

Applications
  • Metal processing and laser cutting
  • Electronics
  • Food and beverage processing and storage
Technical Specifications
No Model Capacity (Nm3/h) Purity Power (KW) Overall size (mm)
1-4 PN-3-39, PN-5-29, PN-5-295, PN-8-295 3, 5, 5, 8 99.9%, 99.5%, 99%, 95% 0.5 1800×1400×1500
5-8 PN-5-49, PN-8-39, PN-12-295, PN-15-29 5, 8, 12, 15 99.99%, 99.9%, 99.5%, 99% 0.5 1800×1400×1800
9-12 PN-10-49, PN-15-39, PN-25-295, PN-30-39 10, 15, 25, 30 99.99%, 99.9%, 99.5%, 99% 0.5 2000×1700×2250
13-16 PN-15-49, PN-22-39, PN-35-295, PN-45-29 15, 22, 35, 45 99.99%, 99.9%, 99.5%, 99% 0.5 2100×1800×2200
17-20 PN-20-49, PN-30-39, PN-50-295, PN-60-29 20, 30, 50, 60 99.99%, 99.9%, 99.5%, 99% 0.5 2200×1800×2200
21-24 PN-30-49, PN-45-39, PN-75-295, PN-88-29 30, 45, 75, 88 99.99%, 99.9%, 99.5%, 99% 0.5 2400×1900×2200
Note: For complete specifications and custom solutions, please contact SINCE Gas System Co., Ltd directly.

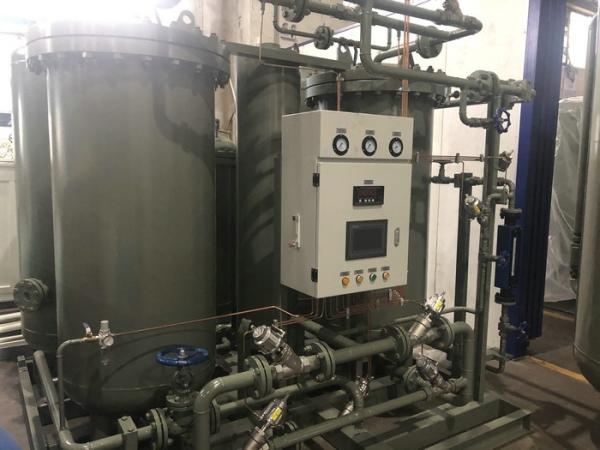

Product Image
Energy Saving PSA Nitrogen Generator 5-5000 Nm3/H for Food
Why 98% of Customers Choose SINCE
  • Extensive experience in manufacturing and supplying gas plants
  • CCS and TS certified company for quality assurance
  • One of few companies holding TS (Manufacture License of special equipment) and CCS (CHINA CLASSIFICATION SOCIETY) certificates
  • Capability to manufacture marine nitrogen generators
  • Excellent infrastructure with experienced engineering team
  • Advanced R&D department supporting installation and operation
  • Comprehensive after-sale service
