90-95% Purity VSA Oxygen Generator 100-5000m3/h Flow
90-95% Purity VSA Oxygen Generator 100-5000m3/h Flow
Specifications
Brand Name :
Since
Model Number :
VPSA-1200-12B
Certification :
CE
Place of Origin :
Suzhou, China
MOQ :
1set
Price :
according to customer needed equipment
Payment Terms :
L/C,T/T
Supply Ability :
300set per year
Delivery Time :
5month
Packaging Details :
wooden case
Process form :
Vacuum pressure swing adsorption （VPSA）
Purity :
90 - 95%
Flow :
100m3 - 5000m3 / h
Outlet pressure :
20Kpa - 0.5Mpa
Unit consumption of oxygen production :
0.36kmh - 0.40kmh/NM3
Area covered :
500M2
Life :
15years+
Description

Fully automatic operated VSA Oxygen Generator / Plant For Gold Mine

Why Gold Mine need to use VSA Oxygen Generator?

The core purpose of using VPSA/VSA oxygen generators in gold mines is to provide a large amount of stable and inexpensive oxygen rich gas (usually 90-95% oxygen) for the "roasting cyanide" or "direct cyanide" gold extraction processes, to replace or supplement expensive pure liquid oxygen, essentially a process revolution and cost revolution. It is no longer simply "buying oxygen", but transforming oxygen from an "expensive purchased raw material" into a "self-produced, inexpensive process gas" through self built oxygen factories.

Main value and function of VSA Oxy Generator for Gold Mine:
*Economy: Significantly reduce the cost of oxygen, thereby lowering the production cost per ounce of gold.
*Efficiency: Improving leaching rate and equipment processing capacity is equivalent to expanding production capacity.
*Environmental friendliness: Reducing the amount of cyanide used reduces the pressure of environmental treatment.
*Stability: Oxygen is produced and used independently, with stable and reliable supply, and is not affected by external markets

Oxygen parameters Flow Nm³/h 1200～1300 93% Total oxygen flow at purity
Pressure PSI 11～13 With full oxygen combustion system
Purity % 93% 　
Altitude 1280 　
Public and auxiliary engineering needs Run the power consumption KW 576 +/-5% Design conditions under full load flow
Cooling water recycle system T/h N/A 　
Instrument air Nm³/h ~ 120 　
Seal water softening m³/h N/A Dry vacuum fan unique technology
Area m2 350 ~ 500 It can be adjusted according to the actual situation
Other Performance parameters L/T months 5 　
Load regulation % 50~100 Variable power saving
Noise dBA <=85 Based on typical plant design conditions
Annual opening rate % >=98 % Annual maintenance stops less than 7 days
Gas supply reliability % 100% Add the liquid oxygen backup system
Liquid oxygen standby(option) Liquid oxygen backup system m³ 50 On-site liquid oxygen system (sufficient for over 40 hours of usage)

Process:

Air inlet filter - Air blower (in container) - Adsorber A - Adsorber B - Gox buffer - Compressor (in container) - Oxygen storage tank - outlet

l l Vacumm pumb(in container)

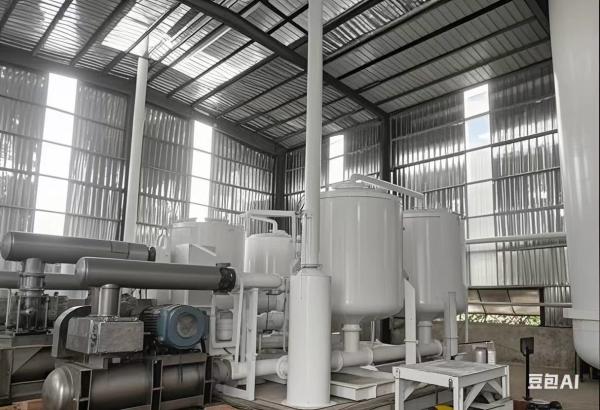

90-95% Purity VSA Oxygen Generator 100-5000m3/h Flow

Applications:

We supplied to many customers in country of Philippines, Russia, Myanmar, Indonesia, Ghana,Algeria, etc.
