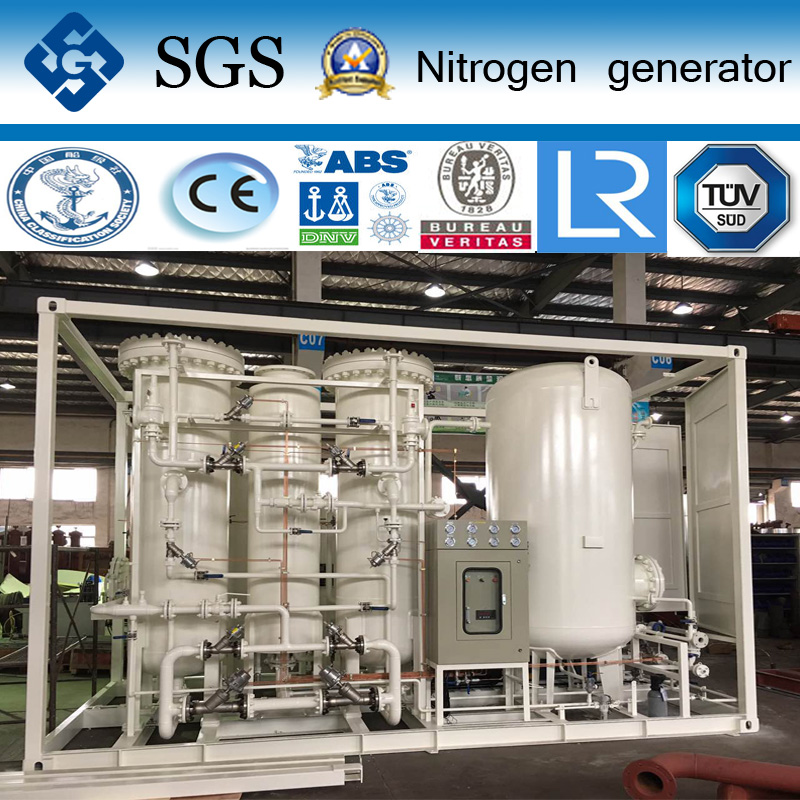

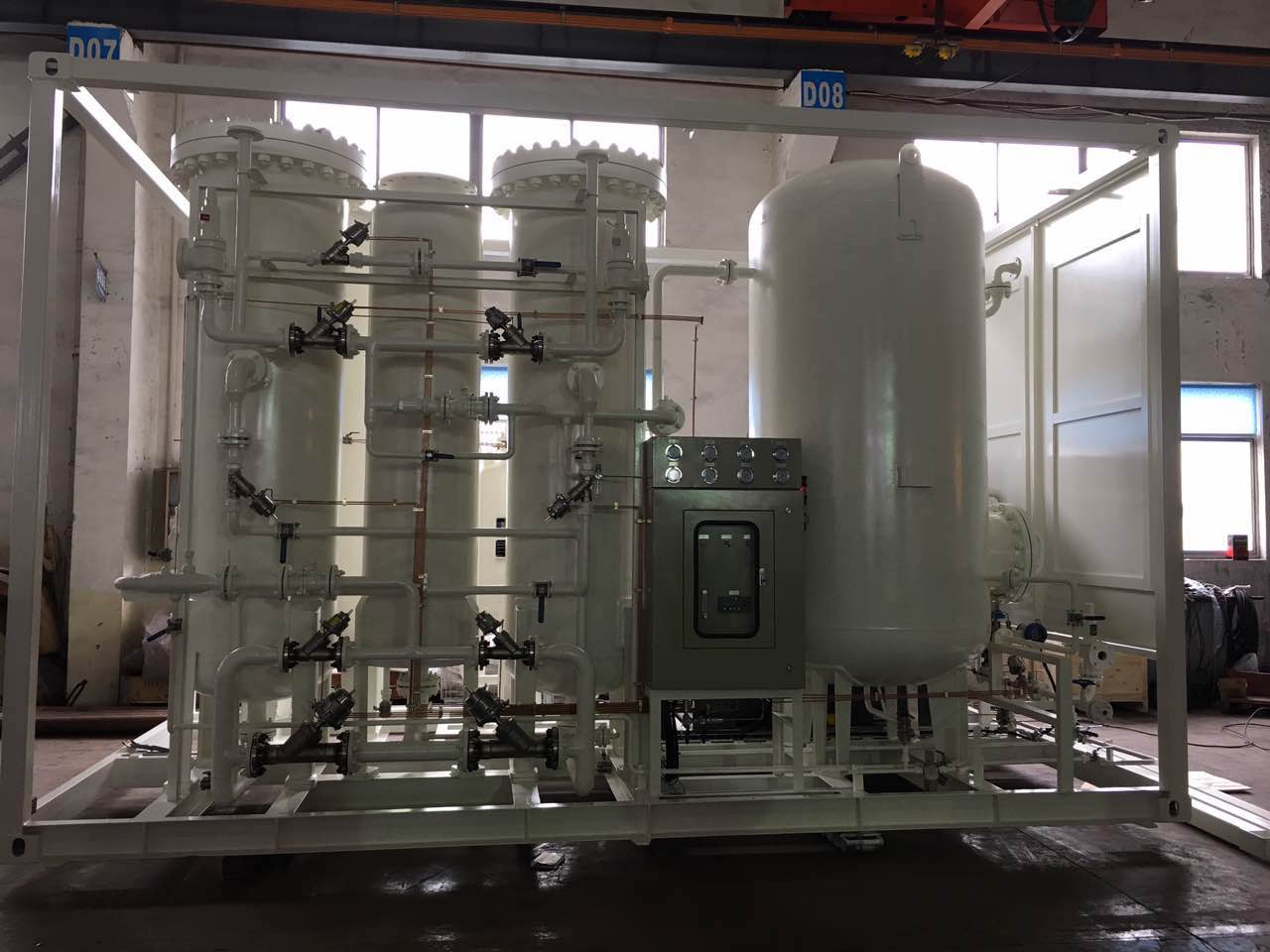

Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Specifications
Material :
Mild steel
Control system :
PLC, Touch screen
Valve :
Pneumatic valve, ball valve, butterfly valve, control valve
Instrument :
Pressure gauges, flow meter, oxygen analyzer etc
CMS :
Japan
Purity :
99.99%
Buffer tank :
With pressure safety valve
Characteristic :
Portable/movable
Pipeline :
Seamless steel
Brand Name :
Joshining
Model Number :
PN-20-49
Certification :
CE,ASME, GB,CCS,ABS,LR ,
Place of Origin :
Suzhou ,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
80 sets
Delivery Time :
within 60 days
Packaging Details :
Exporting case
Technology :
PSA
Design code :
CE, ASME , GB
Flow :
20 Nm3/hr
Color :
White or customized
Description
SINCE GAS Portable Nitrogen Generator (CE/ASME Certified) for SMT & Electronics Industry
Product Attributes
Attribute Value
Color White or customized
Material Mild steel
Design code CE, ASME, GB
Flow 20 Nm3/hr
Purity 99.99%
Characteristic Portable/movable
Control system PLC, Touch screen
Instrument Pressure gauges, flow meter, oxygen analyzer etc
Buffer tank With pressure safety valve
Technology PSA
CMS Japan
Valve Pneumatic valve, ball valve, butterfly valve, control valve
Pipeline Seamless steel
PLC
Product Description

The SINCE GAS portable nitrogen generator is CE/ASME certified for SMT and electronics industry applications, offering reliable on-site nitrogen generation.

Nitrogen Generator Features
  • High purity output
  • Excellent energy efficiency
  • Smooth operation with long service life
  • Automatic operation
  • ISO9001:2008 certified
PSA Nitrogen Generation Principle

The pressure swing adsorption (PSA) technology employs air separation at ambient temperatures using carbon molecular sieve (CMS) material that adsorbs oxygen to leave a rich stream of nitrogen.

Technical Features
  • Principle: Compressed air passes through carbon molecular sieve (CMS) using pressure swing adsorption technology
  • N2 flow range: 5-5000 Nm3/h
  • O2 purity options: 1% to 10 ppm
  • On-line monitoring instruments
  • Digital hours counter with audible/visual maintenance indicators
  • Economy mode option: Controls compressor shutdown/startup when nitrogen not required
Specifications
No Model Nm3/h Purity Power (KW) Overall size (mm)
1 PN-3-39 3 99.9% 0.5 1800*1400*1500
2 PN-5-29 5 99.5% 0.5 1800*1400*1500
3 PN-5-295 5 99% 0.5 1800*1400*1500
4 PN-8-295 8 95% 0.5 1800*1400*1500
5 PN-5-49 5 99.99% 0.5 1800*1400*1800
6 PN-8-39 8 99.9% 0.5 1800*1400*1800
7 PN-12-295 12 99.5% 0.5 1800*1400*1800
8 PN-15-29 15 99% 0.5 1800*1400*1800
Note: For complete specifications or additional models, please contact SINCE GAS System Co., Ltd or email us directly.
Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
Why Choose SINCE GAS Nitrogen Generators?
Cost Savings

Generate nitrogen on-site to significantly reduce costs with payback in just a few months. Savings include:

  • Elimination of transportation costs
  • No bulk liquid evaporation loss
  • No rental fees
  • Reduced handling and purchasing costs
Convenience

Produce nitrogen on-demand for your production line, eliminating transportation delays that could interrupt operations.

Portable PSA Nitrogen Generator 20 Nm3/hr 99.99% Purity CE ASME Certified
