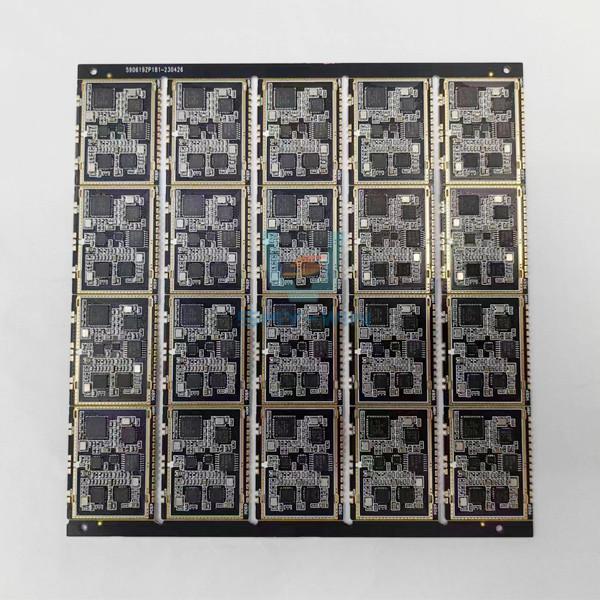

Single Sided SMT PCB Assembly Custom High Frequency Black Soldmask
Single Sided SMT PCB Assembly Custom High Frequency Black Soldmask
Specifications
Brand Name :
Sky Win
Model Number :
all-in-one PCBA
Certification :
IATF16949
Place of Origin :
China
MOQ :
100 piece
Price :
$0.1- $4.9
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50000pcs per months
Delivery Time :
5-8 days
Packaging Details :
Carton
Material of PCB :
FR-4
PCB Board thickness :
1.0 mm
Material accuracy :
0402+QFN
Material consumption :
91 pcs
PCB quality system :
ROHS/UL
Manufacturing quality system :
IATF16949
Layers :
2 layers
PCB Surface :
Single-sided Board
Description

Custom High Frequency PCB Assembly FR4 Circuit Board SMT PCB Assembly Black Soldmask White Silkscreen

High Frequency Board-SMT PCB Assembly

High Frequency Board - Special circuit board with high electromagnetic frequency. Generally speaking, high frequency can be defined as frequency above 1GHz. Its physical performance, precision, technical parameters requirements are very high, often used in automotive collision prevention system, satellite system, radio system and other fields.

SMT PCB Basic Process Components

Silk Screen

Testing

Placement

Reflow soldering,

Cleaning

Testing

Repair

SMT PCB Assembly Specification

SMT Project name Item Access control all-in-one PCBA
Manufacturing process SMT patch, AOI test,CNC panel
Material accuracy 0402+QFN
Number of materials 45 kinds
Material consumption 91 pcs
PCB Glod process Immersion Gold
Number of PCB layers 2 layers
Material FR-4
Board thickness 1.0 mm
Manufacturing quality system IATF16949
PCB quality system ROHS/UL
Application Remote control model/drone flight control
PCB Surface Single-sided Board

SMT PCB Assembly Manufacturer

Shenzhen SKY-WIN Technology Co., Ltd was founded in February 2015, focusing on PCBA OEM/ODM one-stop service, solution customization, SMT patch, DIP plug-in, functional testing, assembly and other OEM/ODM services.

Why so many people choose Sky-Win For SMT?
1. The research and development model undertaken by our company starts from 1 piece, without any engineering costs, start-up costs and geographical restrictions, and the delivery time is 2 to 3 days.
2. Our team can provide customers with components in the following packages: 0402, 0603, 0805, 1206, 1210, 1812, BGA, CSP, PLCC, LGA, QFN, QFP, TQFP, QFN, PLCC, SOT, SOIC wait;
3. We have strict quality control procedures, and the straight-through rate of welding is over 96%. If any welding defects are found, we promise to repair them for free;
4. Our technical backbones have more than 10 years of SMT patch work experience. To learn more, you can check the entrepreneurial track;
5. Our equipment is tailor-made for the R&D sample patch production to ensure the quality of the sample welding;

SMT PCB Assembly Case

Single Sided SMT PCB Assembly Custom High Frequency Black Soldmask
