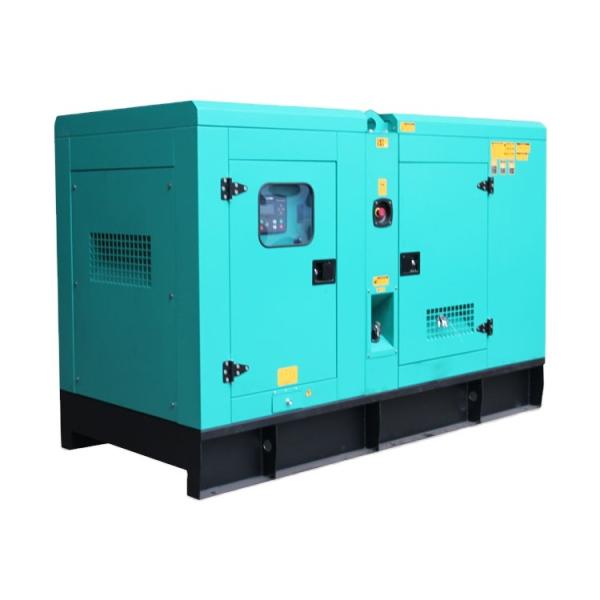

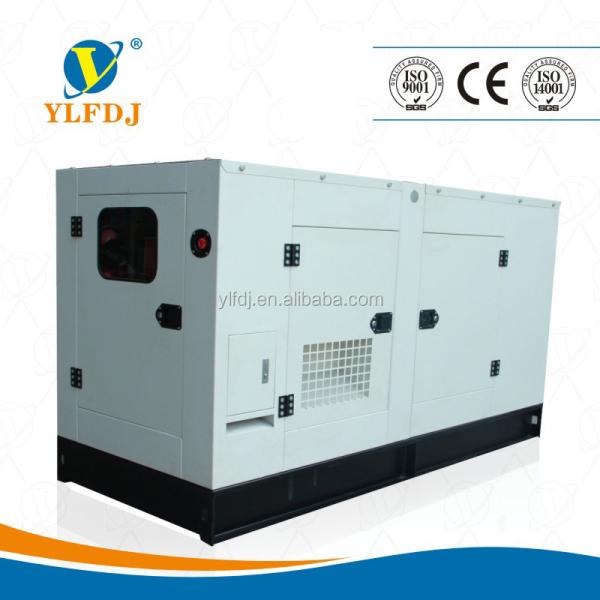

Perkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60Hz
Perkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60Hz
Perkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60Hz
Perkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60Hz
Specifications
Place of Origin :
China
Brand Name :
YingLi
Model Number :
YLGF-16PKS
Packaging Details :
Packaging Detail: Packed with foam or plywood .
Supply Ability :
500 Set/Sets per Month
Price :
Negotiable
Certification :
ISO CE
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
45 working days
Warranty :
1 Year Or 1000 Hours
Rated Voltage :
400/230V/110V
Rated Current :
28.8A
Speed :
1500rpm/1800rpm
Frequency :
50hz/60hz
Starting system :
24V DC Electric Start
Type :
Open Frame
Cooling System Type :
Water cooling system
Engine Brand :
Perkins
Color :
As Customer require
Controller :
Marathon / Stamford / Engga / Faraday
Control mode :
Auto / Manul
Cooling System :
Water cooled
Starting Method :
By Battery
Certificate :
CE/ISO9001
Warranty time :
1 Year Or1000 Hours
Description

Perkins 404D-22G1 YLGF-16PKS 16/20kW Genset 3 Phase 50/60Hz Perkins Diesel Generator Set

Perkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60HzPerkins 404D-22G1 16kw 20kva Perkins Diesel Generator Set 3 Phase 50/60Hz

Genset Model YLGF-16PKS
Genset Power Capacity (kw/kva) 16/20
Rated Voltage (V) 400/230/110
Rated Current (A) 28.8
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500/1800
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 1600 x730x 1250
Gross Weight (kg) 530
Engine Brand Perkins
Diesel
Engine		 Engine Model 404D-22G1
Prime Power (kw) 16
Engine Structure 4 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 84x100
Displacement (L) 2.216
Compression Ratio 23.3:1
Lube Capacity (L) 7
Fuel System PT type fuel injection pump
Fuel Consumption (g/kw.h) 237
Lube Consumption (g/kw.h) 2.5
Rotating Speed (rpm) 1500/1800
Speed Governing machinery speed governor
Starting Method By 12V batteries
Alternator Brand YLFDJ
Alternator Alternator Model YLW-16
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand ZZ6110


Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).
