Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KW
Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KW
Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KW
Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KW
Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KW
Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KW
Specifications
Place of Origin :
China
Brand Name :
YLFDJ
Model Number :
YLGF-800PKS
Certification :
ISO CE
Packaging Details :
export standard schedule
Supply Ability :
50 Set/Sets per Month
Price :
Negotiable
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
45 working days
Warranty :
1 year or 1000hours
Rated Voltage :
380/220V,400/230V,415/240V,440/254V,480/277V
Rated Current :
Depend
Speed :
1500rpm, 1800rpm
Frequency :
50HZ, 60HZ
Engine brand :
Perkins
Engine model :
4008TAG2A
Alternator brand :
Stamford/Marathon/YLFDJ/Engga etc
Control panel :
Deepsea/Smartgen
ATS :
Yes/no
Color :
As customer require
Governor :
Electrical
Cooling system :
Watering Cooling
phase :
three phase,4 wire
Starting method :
By battery
Port :
Guangzhou Foshan Shenzhen etc
Description

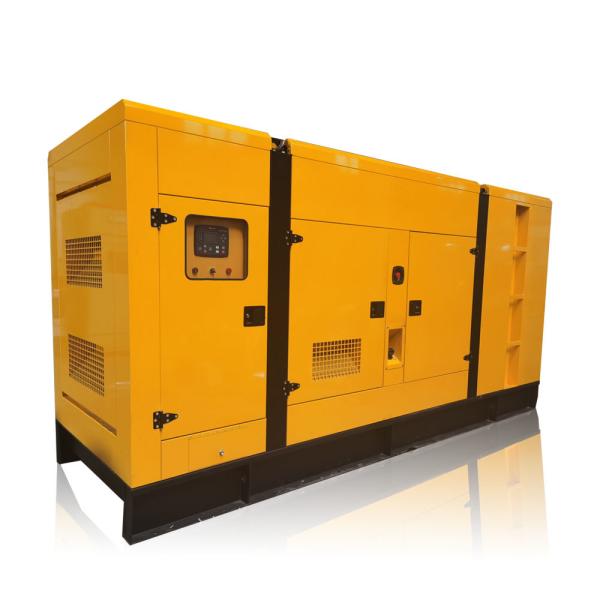

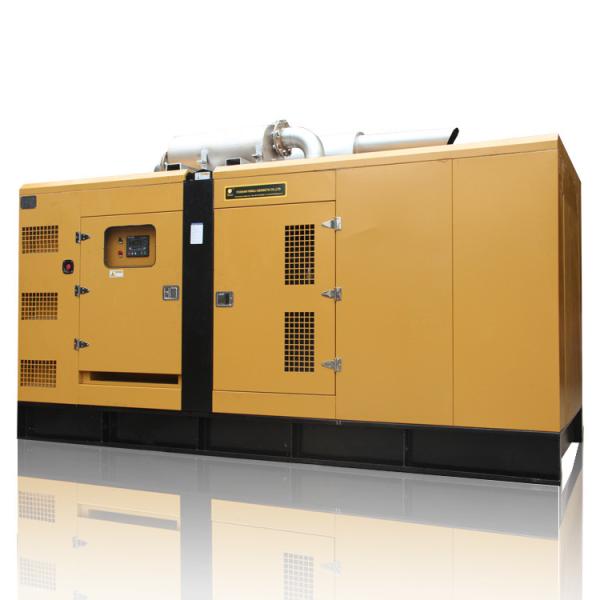

Silent Diesel Generator Set With Perkins Engine Diesel Generators Sets 1000kva 800KW Output High Quality Deepsea Contr

Engine 4008tag2a Perkins Generator Set Silent 1000kva 800KWEngine 4008tag2a Perkins Generator Set Silent 1000kva 800KWEngine 4008tag2a Perkins Generator Set Silent 1000kva 800KWEngine 4008tag2a Perkins Generator Set Silent 1000kva 800KWEngine 4008tag2a Perkins Generator Set Silent 1000kva 800KWEngine 4008tag2a Perkins Generator Set Silent 1000kva 800KW

Genset Model YLGF-800PKS
Genset Power Capacity (kw/kva) 800/1000
Rated Voltage (V) 400/230
Rated Current (A) 1800
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500/1800
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 4800x2046x2320
Gross Weight (kg) 8000kg
Engine Brand Perkins
Diesel
Engine		 Engine Model 4008TAG2A
Max Power (kw) 880kw/1100KVA
Engine Structure 8 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 160x190
Displacement (L) 30.6
Compression Ratio 13.6:1
Lube Capacity (L) 165.6
Fuel System PT type fuel injection pump
Fuel Consumption (g/kw.h) 206
Lube Consumption (g/kw.h) 0.5%
Rotating Speed (rpm) 1500/1800
Speed Governing EFC electronic speed governor
Starting Method By 24V batteries
Alternator Brand YLFDJ
Alternator Alternator Model YLW-800
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand Deepsea/Smartgen
