Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Specifications
Brand Name :
PROCET
Model Number :
PTAP-AF
Certification :
OTHER
Place of Origin :
DONGGUAN,CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton
Product Name :
5V Output Lighting Head PoE Converter For Apple 10/100Mbps
Standard :
IEEE802.3af/at
Input :
40-57Vdc PoE injector/PoE Switch 802.3af/at
Power Pins :
4/5(+), 7/8(-) or 3/6(+),1/2(-)
Data Speed :
10/100Mbps
Case :
Plastic
Color :
White
Mounting :
Wall-mounted
Size :
(81.3+130.9)mm X 34.7mm X 19mm
Weight :
200g
Connectors :
Apple Lighting Head
Power output Indicator :
Green
Description

5V Output Lighting Head PoE Converter For Apple 10/100Mbps

Product Features:

PTAP-AF is an indoor rated Lighting Head Converter For Apple splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design.It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs.
The output power is 5Vdc, 2.5A(max) via Apple Lighting Female connector to PDs. Such as power communication station,wireless APs, network cameras, Tablet PC, and other Apple devices.PoE signal into a separate data signal at 10/100Mbps.For planning purposes, the effective distance is 100 meters via Cat5e/Cat6 cables from Ethernet data source to PD.

Parameter:

Product Name: 5V Output Lighting Head PoE Converter For Apple 10/100Mbps
Standard:
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-Tx Fast Ethernet
Support PoE injector with IEEE802.3af/at
RoHS Compliance
WEEE Compliance
Input:
40-57Vdc PoE injector/PoE Switch 802.3af/at
Data Speed:
 10/100Mbps
Operating Temperature:
0℃ to 40℃
Operating Altitude:
up to 2000meters
Case:
Plastic
Mounting:
Wall-mounted
IP Rated:
IP40
Size:
(81.3+130.9)mm X 34.7mm X 19mm
Connectors:
Apple Lighting Head

Product Profile:

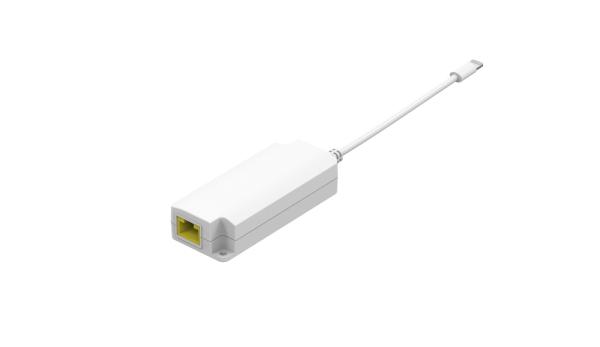

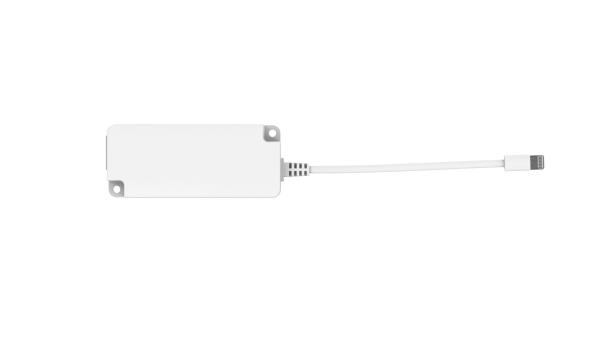

Lighting Head 5v Output Poe Converter For Apple 10/100mbps


Product Working Diagram:
Lighting Head 5v Output Poe Converter For Apple 10/100mbps

Company Introduction:
Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.
Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.We accumulated abundant experiences and excellent corporate reputation during the past years.We have rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Lighting Head 5v Output Poe Converter For Apple 10/100mbps
Certification:
Lighting Head 5v Output Poe Converter For Apple 10/100mbps

Ordering:
Order Info.: PTAP-AF 5Vdc/2.5A/10/100Mbps/4,5(+),7,8(-) or 3,6(+),1,2(-)

Packing: PTAP-AF

Manual x 1



FAQ:
1. Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.


2. How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.


3. OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
