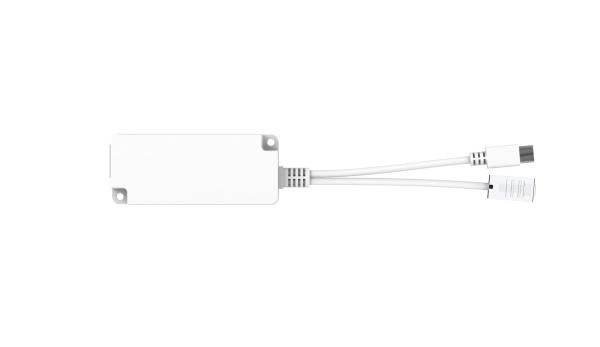

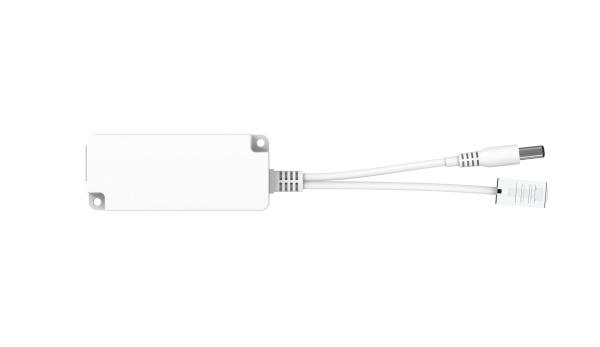

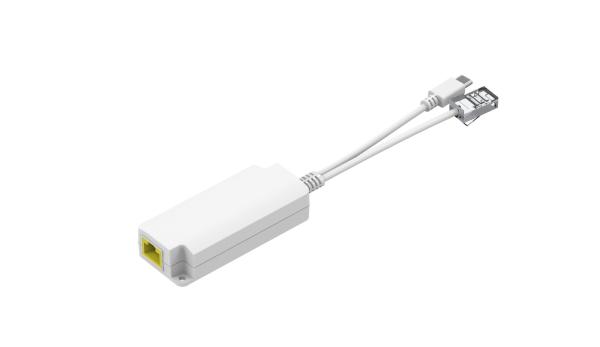

PROCET Indoor 5V Output USB-C PoE Splitter For Tablet PC

Product Features:

PTC-AF-5V is an indoor rated PoE USB-C splitter specially designed for complex backhaul and networkingapplication. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connectorthen separate power and data to PDs.

The output power is 5Vdc, 2.5A(max) via USB-C Femaleconnector to PDs. Such as power communication station,wireless APs, network cameras, Tablet PC, and other USB-A devices.PoE signal into a separate data signal at 10/100Mbps.For planning purposes, the effective distance is 100 metersvia Cat5e/Cat6 cables from Ethernet data source to PD.

Parameter:

Product Profile:

Product Working Diagram:

Company Introduction:
Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.
Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.We accumulated abundant experiences and excellent corporate reputation during the past years.We have rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.


Certification:


Ordering:
Order Info.: PTC-AF-5V 5Vdc/2.5A/10/100Mbps/4,5(+),7,8(-) or 3,6(+),1,2(-)

Packing: PTC-AF-5V

FAQ:
1. Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
2. How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.
3. OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Shipping:
