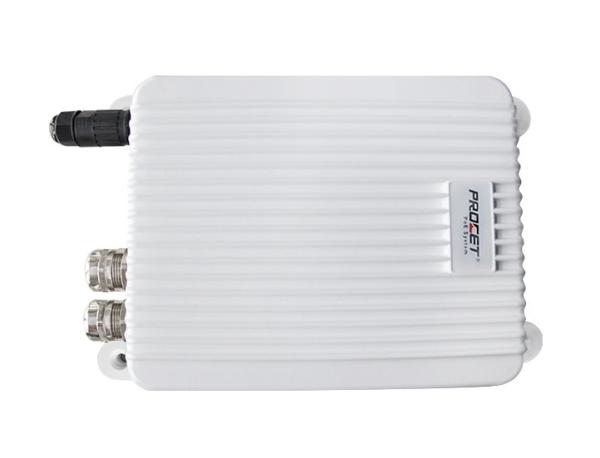

Single port midspan Industrial AT PoE Power Injector with Output 55Vdc 550mA,

Froducts Features:

1. 95W Single-port PoE Injector

PT-PSE108GR-OT Power over Ethernet (PoE) single- port Midspan,fully IEEE 802.3af/802.3at compliant solution for outdoor installations, guaranteeing 95 Watts of power.

2. Detection chip inside

PT-PSE108GR-OT with detection chip.Support power for IEE802.3af/at standard PD.

3. Wide Temperature

PT-PSE108GR-OT work well the complex environment within temperature -40℃~65℃.

4. Lightning Surge Protection

Provide 8 lines power & signal 6KV(10/700us) lightning protection for PD to aviod surge damage.

5. Easy installation

Need not to open unit when install. There are four mounting holes to fixed to the wall by self-tapping screw or tied to shelf.

Functional features:
The single port network remote power supply has the following excellent performance:
1. Plug and play without configuration management function
2. The power supply has the functions of input over-voltage, output over-voltage, output over-current and short-circuit
protection.
3. System reliability: MTBF > 100k hours.
4. Conducted interference (CE) and radiated interference (RE) conform to en55022 and class B standards.
5. Lightning protection characteristics: AC input terminal can withstand 5KB, 8 / 20us impulse current waveform, positive and negative for 5 times, 1 minute each time; power lightning protection circuit has failure alarm function and safety protection elements such as safety tube.
6, Can be used in terrible environment, it is waterproof.
Operating environment:
1. Ambient temperature: - 10 ℃ - + 65 ℃
2. Relative humidity: 5% - 90% RH
3. Ventilation and heat dissipation, clean place without conductive dust and corrosive gas
4. Places without explosion risk
5. Pay special attention when using in humid environment, especially for outdoor equipment. Do not let rainwater and other liquids flow into the power supply along the network cable

Order Info. PT-PSE108GR-OT 55Vdc/1.73A/1000Mbps/outdoor IP66/(4,5+,7,8-)/Active

Package Info. PT-PSE108GR-OT x1

Manual x1

More Infomations

Lead Time?

Order samples, we have in stock.

Bigger orders, 2-4 weeks after payment.

How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.

Your sales consultant will contact you with 24 hr.

OEM/ODM Services?

YES. Tell us your demand, get the products you want.

For distributors, we can put your labels on it too.
