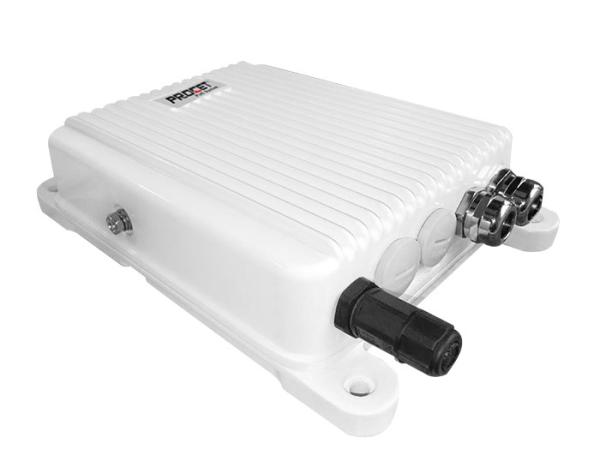

100-240Vac 55Vdc 1100mA Exterior Procet PoE Injector For Networking Applications
100-240Vac 55Vdc 1100mA Exterior Procet PoE Injector For Networking Applications
Specifications
Brand Name :
procet
Model Number :
PT-PSE108GWBR-OT
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
176mm X 269mm X 65mm
Key Features :
Outdoor IP66, metal casing Lightning protection 6KV(10/700us)
Part Number :
PT-PSE108GWBR-OT
Regulatory Compliance :
IEEE802.3bt RoHS Compliance WEEE Compliance
Pass Through Data Rateshrough Data Rates :
10/100/1000 Mbps
Polarity :
4/5 (+), 7/8 (–) and 3/6(+),1/2(-)
Input Current: :
2.0A Frequency: 50/60Hz Typ
Operating Temperature :
-40℃ to 65℃
AC Surge Protection :
6KV - Line-Line 1.2/50us (8/20us): 4KV
IP Rated :
IP66
Warranty :
5year
Weight :
1.8KG
Ports Conditioning :
- LAN Port*1, AC Input Port*1, PoE Output Port*1
Description

Procet Outdoor power Injector designed for exterior, complex backhaul and networking applications.

Froducts Features:

1. Standard:

IEEE802.3 10Base-T Ethernet

- IEEE802.3u 100Base-Tx Fast Ethernet

- IEEE802.3ab 1000Base-T Gigabit Ethernet

- Full compliant with IEEE802.3af/at, PoE++

- RoHS Compliance

- WEEE Compliance

- Protection Level: IP67, IEC60529, NEMA 250

2. Input & Output

Input :100-240Vac 1.5A 50/60Hz

- Output: 55Vdc 1100mA

- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)

- Data Speed: 10/100/1000Mbps

3. Working Environment

- Operating Temperature: -40℃ to 65℃

- Operating Humidity: 20% to 80%, non-condensation

- Storage Temperature: -40℃ to 85℃

- Storage Humidity: 10% to 95%, non-condensation

- Operating Altitude: up to 5000meters

4. AC Surge Protection

Common mode surge protection(10/700us): 6KV

- Differential mode surge protection (10/700us): 1.5KV

5. PoE Surge Protection

- Protected line: 1,2,3,4,5,6,7,8

- Common mode surge protection(10/700us): 6KV

- Differential mode surge protection (10/700us): 1.5KV

Key Features: Outdoor IP66, Metal Casing Lightning Protection 6KV(10/700us)
Regulatory Compliance: IEEE802.3bt RoHS Compliance WEEE Compliance
Polarity: 4/5 (+), 7/8 (–) And 3/6(+),1/2(-)
Operating Temperature: -40℃ To 65℃
IP Rated: IP66
Weight: 1.8KG
Part Number: PT-PSE108GWBR-OT
Pass Through Data Rateshrough Data Rates: 10/100/1000 Mbps
Input Current:: 2.0A Frequency: 50/60Hz Typ
AC Surge Protection: 6KV - Line-Line 1.2/50us (8/20us): 4KV
Warranty: 5year
Ports Conditioning: - LAN Port*1, AC Input Port*1, PoE Output Port*1

100-240Vac 55Vdc 1100mA Exterior Procet PoE Injector For Networking Applications

Order Info. PT-PSE108GWBR-OT 55Vdc/1.73A/1000Mbps/outdoor IP66/(4,5+,7,8-)/Active

Package Info. PT-PSE108GWBR-OT x1

Manual x1
