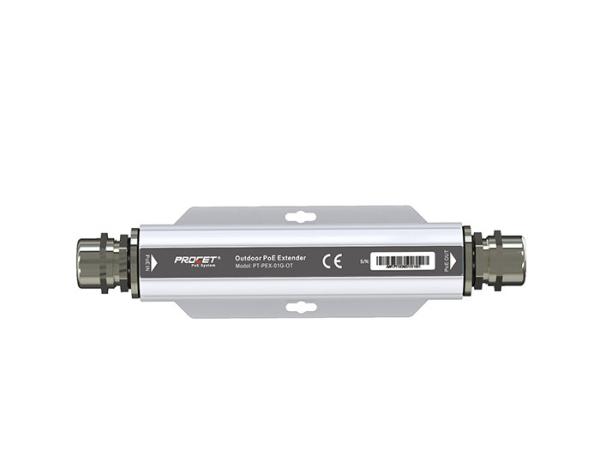

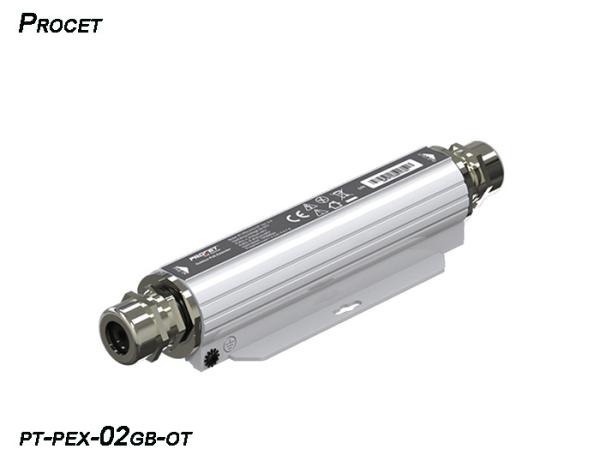

IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
Specifications
Brand Name :
procet
Model Number :
PT-PEX-02GB-0T
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
135mm X 84mm X 35.4mm
Key Features :
Lighting Protection IP67 outdoor
Part Number :
PT-PEX-02GB-0T
Regulatory Compliance :
IEEE802.3bt RoHS Compliance WEEE Compliance
Pass Through Data Rateshrough Data Rates :
10/100/1000 Mbps
Polarity: :
4/5 (+), 7/8 (–) and 3/6(+),1/2(-)
Operating Voltage :
44-57Vdc, (Max 60Vdc)
Working Environment :
Operating Temperature: -40℃ to 65℃
AC Surge Protection :
Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV
Color :
white
Warranty :
2 year
Safety Approvals :
FCC
Ports Conditioning :
PoE input port*1, RJ45 Data output port*1, USBC power output port*1
Description

IEEE802.3af/at/bf Outdoor IP67 PoE Extender 95W Data Speed 10/100/1000Mbps

Froducts Features:

1. PT-PEX-02GB-0T is a dual PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell.It delivers 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 30W(Max) PoE PDs,such as wireless APs, base stations, network cameras and other high power Ethernet terminals.

2. It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

roduct Name 10/100/1000M PoE Extender 95W
Description 10/100/1000M PoE extender, extends the data transmission from 100m to 500m
Network Protocols and Standards

IEEE 802.3i 10BASET;
IEEE 802.3u 100BASET;

IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI;
IEEE 802.3af
Backplane Bandwidth 10Gbps
Forwarding Way Store-And-Forward architecture
Port Description 1x RJ45 PoE input port; 1x RJ45 PoE output port
PoE Features PoE standard: IEEE802.3af
PoE port power: 95W
Default: end-span(1/2+, 3/6-) . Optional:Mid-span(4/5+, 7/8- )
LED Indicator Status ACT/LINK: Network status , PoE: PoE working status
Safety CE Mark ,commercial, FCC Class, RoHS
Package List POE Extender, User Guide, Warranty Card

IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W

IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W

Orde

r Info.

PT-PEX02 44-57Vdc Input/30W Output/1000Mbps/(4,5+,7,8-) /Surge Protection/Active

Packing

PT-PEX-02GB-OT

Ground lug Wire x 1: 16AWG/0.5meters

Manual x 1

Stock Quantity

100PCS

Warehouse Location

Dongguan China

Sample Delivery Time

Within 24H

Bulk Stock Delivery Time

Within 48H

Shipping Way

DHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder

Packing Size

Qty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm


IEEE802.3AF AT BF Outdoor IP67 Gigabit PoE Extender 95W
