90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection
Specifications
Brand Name :
procet
Model Number :
PT-PEX-01GB
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
209mm X 53mm X 37.5mm
Key Features :
local power is needed Gigabit data rates
Regulatory Compliance :
IEEE802.3bt RoHS Compliance WEEE Compliance
Pass Through Data Rateshrough Data Rates :
10/100/1000 Mbps
Output :
Assignment and DC Current :1.1A for 4 pairs
Input :
Assignment DC Current :1.1A for 4 pairs
Working Environment :
-40℃ to 65℃
AC Surge Protection :
Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV
Case :
Aluminium alloy
Warranty :
2 year
power :
95W
Ports Conditioning :
PoE input port*1, RJ45 Data output port*1, USBC power output port*1
Description

Gigabit POE Extender IP67 POWER 95W Surge protection 6KV

Products Features:

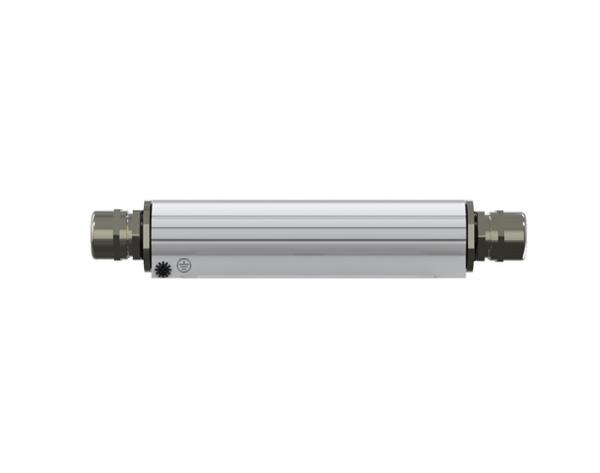

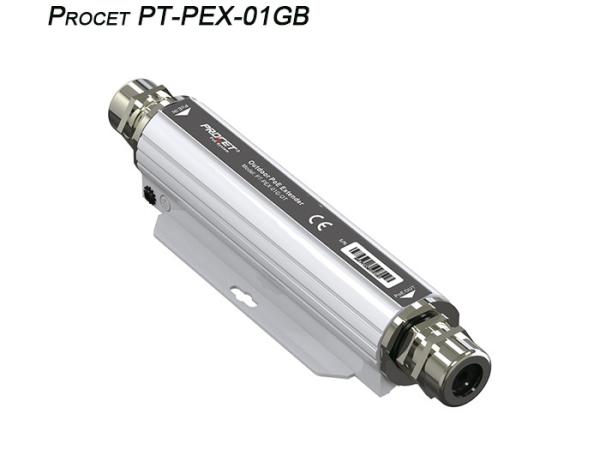

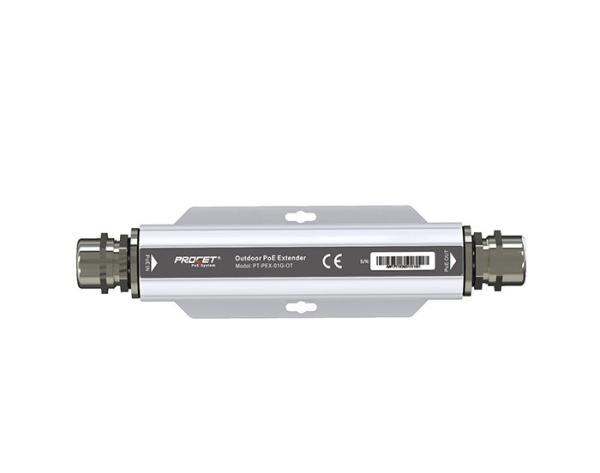

1. PT-PEX-01GB is a single-port PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell. It delivers 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 90W(Max) PoE PDs, such as wireless APs, base stations, network cameras and other high-power Ethernet terminals.

2. Expand 100M with one PoE extender
Lighting Protection
IP67 outdoor use
Wide temperature at -40℃ to 65℃ even up to 85℃
No local power is needed
Gigabit data rates

3. It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders, but the output power can be up to 90W for your PD with one extender

product Name 10/100/1000M PoE MAX 95W
Model PT-PEX-01GB
Description 10/100/1000M PoE extender, extends the data transmission from 100m to 200m
Network Protocols and Standards

IEEE 802.3i 10BASET;
IEEE 802.3u 100BASET;

IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI;
IEEE 802.3af
Network Medium Cat5 or more UTP(≤100 meters)
Forwarding Way Store-And-Forward architecture
MAC Address Table Size 1K
Port Description 1x RJ45 PoE input port; 1x RJ45 PoE output port
PoE Features PoE standard: IEEE802.3af
UP to 95W
Default: end-span(1/2+, 3/6-) . Optional:Mid-span(4/5+, 7/8- )
LED Indicator Status ACT/LINK: Network status, PoE: PoE working status
Dimension/Weight Dimension(LxWxH): 209x53x37.5mm
Environment

Operating temperature: 0 to 55° C;

Storage temperature: -20 to 75°C;

Working Humidity: 10%~90%, non-condensing
Safety CE Mark ,commercial, FCC Class, RoHS
Warranty 2year warranty
Package List POE Extender, User Guide, Warranty Card

Order Info.

PT-PEX-01GB 44-57Vdc Input/30W Output/1000Mbps/(4,5+,7,8-) /Surge Protection/Active

Packing

PT-PEX-01G x 1

Ground lug Wire x 1: 16AWG/0.5meters

Manual x 1

Stock Quantity

100PCS

Warehouse Location

Dongguan China

Sample Delivery Time

Within 24H

Bulk Stock Delivery Time

Within 48H

Shipping Way

DHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder

Packing Size

Qty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm

90W Outdoor PoE Extender IEEE802.3bt 6KV Surge Protection

More Information

Lead Time?

Order samples, we have in stock.

Bigger orders, 2-4 weeks after payment.

How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.

Your sales consultant will contact you within 24 hr.

OEM/ODM Services?

YES. Tell us your demand, get the products you want.

For distributors, we can put your labels on it too.
