802.3AF Gigabit Active PoE Injector Midspan 15.36W
802.3AF Gigabit Active PoE Injector Midspan 15.36W
802.3AF Gigabit Active PoE Injector Midspan 15.36W
802.3AF Gigabit Active PoE Injector Midspan 15.36W
802.3AF Gigabit Active PoE Injector Midspan 15.36W
802.3AF Gigabit Active PoE Injector Midspan 15.36W
Specifications
Brand Name :
PROCET
Model Number :
EN15GF
Certification :
CE/FCC
Place of Origin :
Dongguan China
MOQ :
1PCS
Price :
USD8.5-USD10.7
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ;40pcs/carton ;Pallet size:110 x 110cm
Name :
15.4W Desktop PoE Injector
Output :
48Vdc 320mA
Power Pin :
4/5(+),7/8(-)
Input Voltage :
100-240Vac 0.5A
Frequency :
47 to 63Hz (50/60Hz Typ.)
Operating Temperature :
0℃ to 40℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-20℃ to 70℃
Storage Humidity :
10% to 90%, non-condensation
Connectors :
Shielded RJ-45*2
Warranty :
2years
Mechanical Characteristics :
Case: Plastic; Color:White
Description

IEEE802.3af US/EU Desktop Gigabit Power over Ethernet AC 48V 0.32A Dual RJ45 Port sup

Product Features:

EN15GF is a single port midspan Injector with 2 Pair PoE up to 15.36 watts of power at 48 VDC at 0.32 Amp.

Designed for the PoE-powered 15.36W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, and other support 802.3af input devices. The data rate is 10/100/1000Mbps. Fully comply with IEEE802.3af standard.


Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

Enclosed in an IP40 fire retardant plastic case, designed for indoor use. It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

Product Description

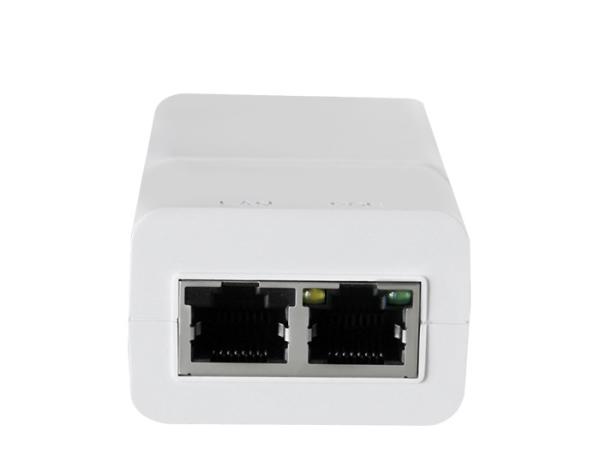

PoE Injector is also called Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest product among the power supply devices. There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output. These single-port PoE injectors supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method.

Product Name: 10/100/1000M Single Port PoE Injector 15.4W
Product Model: EN15GF
Ports condition: LAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance: LAN Port*1, AC Input Port*1, PoE Output Port*1
Pass-Through Data Rates: 10/100/1000 Mbps
User Port Power: 15.36W Guaranteed
AC Input Voltage: 90 to 264Vac(100 to 240Vac Rated)
AC Surge Protection: Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Size: 95.3mm X 51mm X 34.5mm
Weight: 105g(0.23lb)

Product Introduction:

802.3AF Gigabit Active PoE Injector Midspan 15.36W

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Company Introduction:

Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing.

Our headquarter is based in Beijing, our R&D center and factory are located at Dongguan City. Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.

We accumulated abundant experiences and an excellent corporate reputation during the past years. We have a rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE,

outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender, etc.

All the PoE was designed based on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.

802.3AF Gigabit Active PoE Injector Midspan 15.36W

802.3AF Gigabit Active PoE Injector Midspan 15.36W

Certificate:

802.3AF Gigabit Active PoE Injector Midspan 15.36W

Why choose us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surge on PoE using, and now they have a great contribution to our outdoor PoE series.


Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
