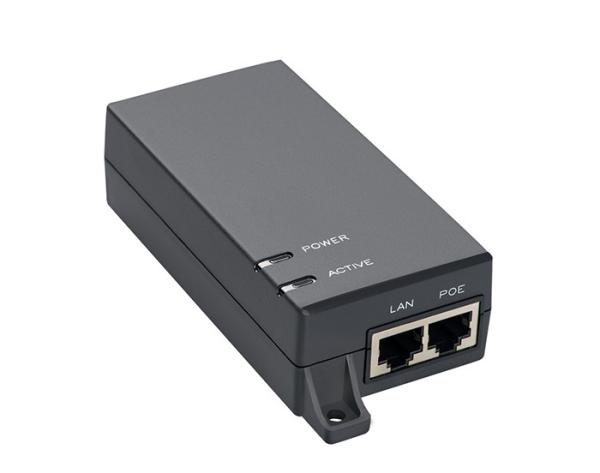

IP40 Fire Retardant 15 Watt IEEE802.3AF PoE Injector PT-PSE100GF
IP40 Fire Retardant 15 Watt IEEE802.3AF PoE Injector PT-PSE100GF
Specifications
Brand Name :
PROCET
Model Number :
PT-PSE100GF
Certification :
CE/FCC
Place of Origin :
Dongguan China
MOQ :
1PCS
Price :
USD8.3-USD11.5
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ;Pallet size:110 x 110cm
Name :
15W PoE injector
Output :
48Vdc 320mA 15.4W
Power Pin :
4/5(+),7/8(-)
Input Voltage :
100-240Vac
Frequency :
50/60Hz Typ
Operating Temperature :
0℃ to 40℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-20℃ to 70℃
Storage Humidity :
10% to 90%, non-condensation
Connectors :
Shielded RJ-45*2
Warranty :
2years
Mechanical Characteristics :
Case: Plastic; Color:black
Description

IEEE802.3af Single Port Gigabit PoE Injector 15W For Camera

Product Features:

1. PT-PSE100GF is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32A amp.Designed for the AF powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

2. Fully comply with IEEE802.3af devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

3. Enclosed in an IP40 fire retardant plastic case, designed for indoor use, installation with Wall-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

Technical Specification:

Model PT-PSE100GF
Transmission Rate: 10/100/1000Mbps
Ports condition: LAN Port*1,AC Input Port*1, PoE Output Port*1
Regulatory Compliance: IEEE802.3af
RoHS Compliance
WEEE Compliance
User Port Power: 15.4W Guaranteen
AC Surge Protection: Line-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mounting: Wall-plug
LED Indicator: Power Indicator: Green
PoE Load Indicator: Green
PoE Standards: IEEE 802.3af

Product Introduction:

Procet Indoor AF PoE injector, Input100-240Vac 0.5A ,Output48Vdc 320mA, Working temperature at 0℃ to 40℃.

Schematic Diagram:

IP40 Fire Retardant 15 Watt IEEE802.3AF PoE Injector PT-PSE100GF

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

IP40 Fire Retardant 15 Watt IEEE802.3AF PoE Injector PT-PSE100GF

IP40 Fire Retardant 15 Watt IEEE802.3AF PoE Injector PT-PSE100GF

OEM&ODM serives:

We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
