30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
Specifications
Brand Name :
PROCET
Model Number :
PT-PSE101G-AT-#8059
Certification :
RoHS & WEEE Compliance
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
100PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
Industrial Fiber PoE Media Converter
Input :
100-240 Vac
Output :
55Vdc, 30W Guaranteen
Ports condition :
LAN Port*1, AC Input Port*1, PoE Output Port*1
Data Speed :
Gigabit
Protocol :
IEEE802.3at
Compliance :
WEEE & RoHS Compliance
PoE Surge Protection :
6KV
Mounting :
Wall-mounted
Size :
140mmX 63mmX 33mm
Weight :
205g（7.23oz）
Description

30W IEEE802.3at PoE Injector Manufacturer Surge Protection Single Port Converter

Parameter Description
Key Features Wall-mounted
Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance IEEE802.3at
RoHS Compliance
WEEE Compliance
Pass-Through Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 55Vdc
User Port Power: 30W Guaranteen

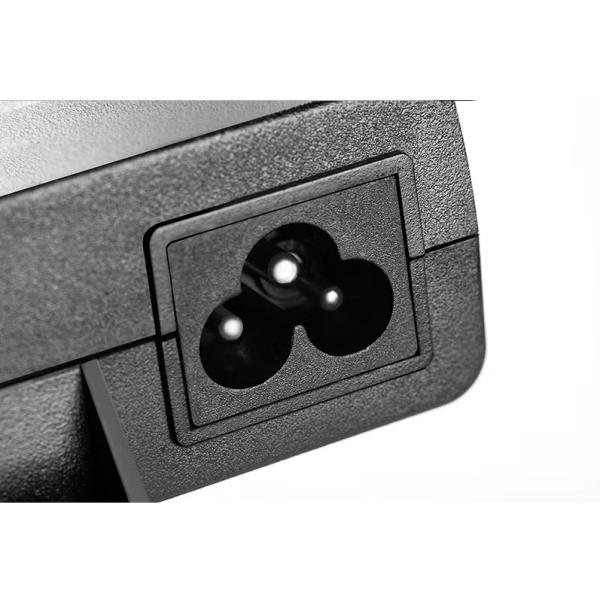

Input AC Input Voltage: 100-240 Vac
Frequency: 47 to 63Hz (50/60Hz Typ.)
AC Input Current: 1A
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical Characteristics Case: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP40

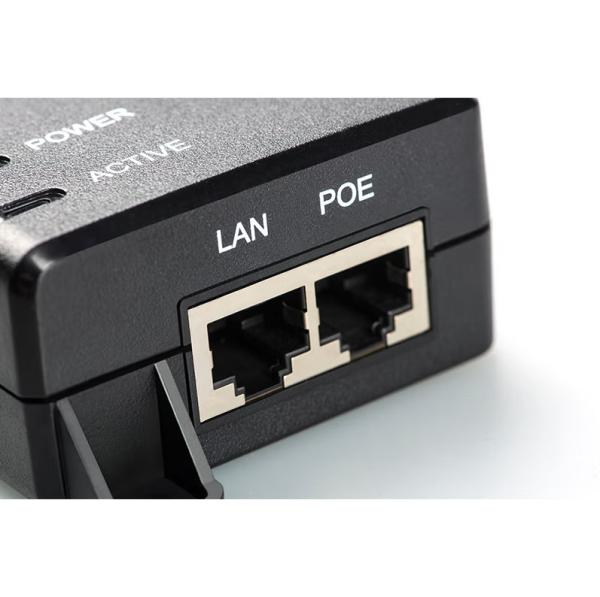

Connectors: Shielded RJ-45*2
Size: 140mmX 63mmX 33mm
Weight: 205g(7.23oz)
LED Indicator Power Indicator: Green
PoE Load Indicator: Green

Highlights:

PT-PSE101G-AT is a single port PoE Injector. It provides 55Vdc, 0.64A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit devices. It works for 35W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high-power Ethernet terminals.

It supports terminal equipment with IEEE802.3af/at PoE standard. PT-PSE101G-AT is designed for indoor use.

It works with an input voltage of 100-240Vac. It will directly power PDs without detection. The effective distance is 100 meters over Cat5e/Cat6 cables. It is easy to install with two mounting holes.

30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter

Company Introduction:


PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter

Why Choose Us:


Operating since 2000

PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team.


PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.


Production quality assurance


We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM services


We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter

FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want. For distributors, we can put your labels on it too.

30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter

Shipping:
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
30w Ieee 802.3at Poe Injector Surge Protection Single Port Converter
