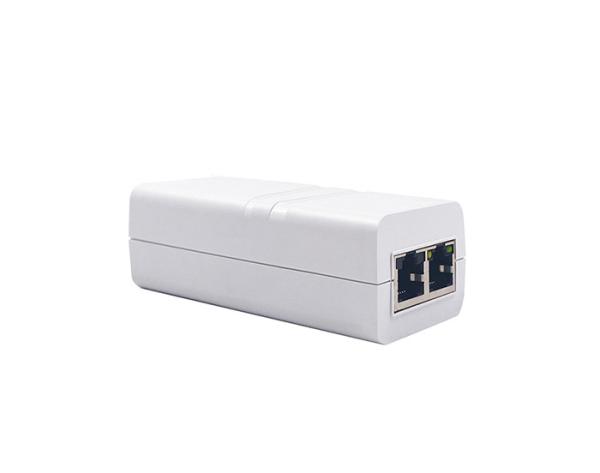

RJ45*2 Connectors IEEE802.3AT PoE Injector 52VDC 0.58A PDs Poe Power Injector
RJ45*2 Connectors IEEE802.3AT PoE Injector 52VDC 0.58A PDs Poe Power Injector
Specifications
Brand Name :
PROCET
Model Number :
EN30GT
Certification :
CE/FCC
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
IEEE802.3at Midspan Injector 52 VDC 0.58 A For the PoE powered 30W PoE Powered Devices (PDs)
Connectors :
Shielded RJ-45*2
Frequency :
47 to 63Hz (50/60Hz Typ.)
AC Input Voltage :
90 to 264Vac(100 to 240Vac Rated)
Operating Temperature :
0℃ to 40℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-20℃ to 70℃
Case :
Plastic
Color :
black
Output Power Voltage :
52Vdc
Mounting :
Place on desk
Weight :
255g（0.56lb）
LED Indicator :
Power Indicator: Green;PoE Load Indicator: Green @ ≤ 15.4W Blue @ > 15.4W ≤ 30W
Description

IEEE802.3at Midspan Injector 52 VDC 0.58 A For the PoE powered 30W PoE Powered Devices (PDs)

Product Features:

EN30GT is a single port midspan Injector with 2 Pair PoE up to 30.16 watts of power at 52 VDC at 0.58 Amp.
signed for the PoE powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application and other support 802.3at input devices. The data rate is 10/100/1000Mbps. Fully comply with IEEE802.3at and backward compatible with 802.3af standard.
Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor use. It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

Product Parameter:

Key Features
Gigabit data rates
Smaller in size but higher performance
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs
Economical PoE
Input AC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working Environment Operating Temperature0℃ to 40℃
Operating Humidity20% to 80%, non-condensation
Storage Temperature-20℃ to 70℃
Storage Humidity10% to 90%, non-condensation
LED Indicator Power Indicator Yellow
PoE Load Indicator Green
Warranty 2 year
Safety Approvals CE, FCC

Schematic Diagram:

RJ45*2 Connectors IEEE802.3AT PoE Injector 52VDC 0.58A PDs Poe Power Injector

FAQ:

(1)Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2)How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3)OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

RJ45*2 Connectors IEEE802.3AT PoE Injector 52VDC 0.58A PDs Poe Power Injector

RJ45*2 Connectors IEEE802.3AT PoE Injector 52VDC 0.58A PDs Poe Power Injector

Certification:

RJ45*2 Connectors IEEE802.3AT PoE Injector 52VDC 0.58A PDs Poe Power Injector

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.


Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
