Specifications
Brand Name :
Comesh
Model Number :
CAR-0029
Certification :
FDA
Place of Origin :
China
MOQ :
1meter
Payment Terms :
T/T, L/C
Supply Ability :
1000maters per months
Delivery Time :
5-30days
Packaging Details :
Packing:plastic bags inside and wooden case outside .
Name :
Stainless Steel Perforated Chain Link Plate Conveyor Belt Hinged Plate Mesh Belt
Material :
Stainless steel 304,316L,carbon steel
Plate thickness :
0.6mm,0.8mm,1mm,1.5mm
Length :
According to your requirement
Feature :
Heat resistance,durable,Corrosion resistance
Rod diameter :
5mm-20mm
Pitch :
19.05mm, 25.4mm, 31.75mm, 50.8mm, 76.2mm, 101.6mm or customized
Accessories :
sprocket special is customized as per request
Description

Stainless Steel Wire Mesh Chain Link Plate Conveyor Belt Perforated Plate Mesh belt

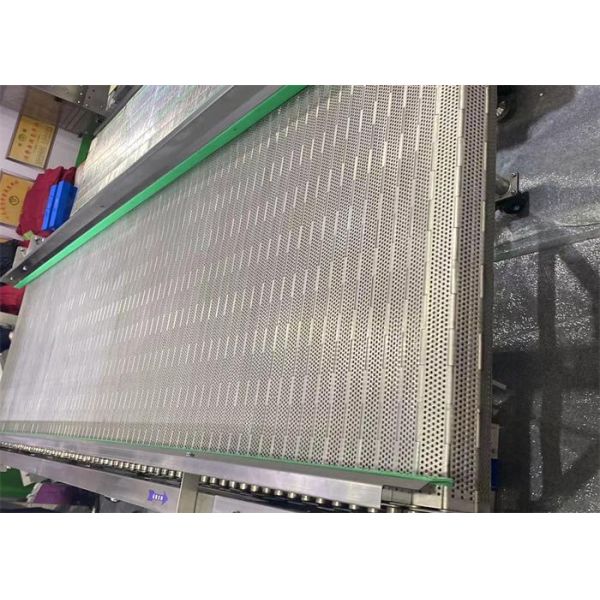

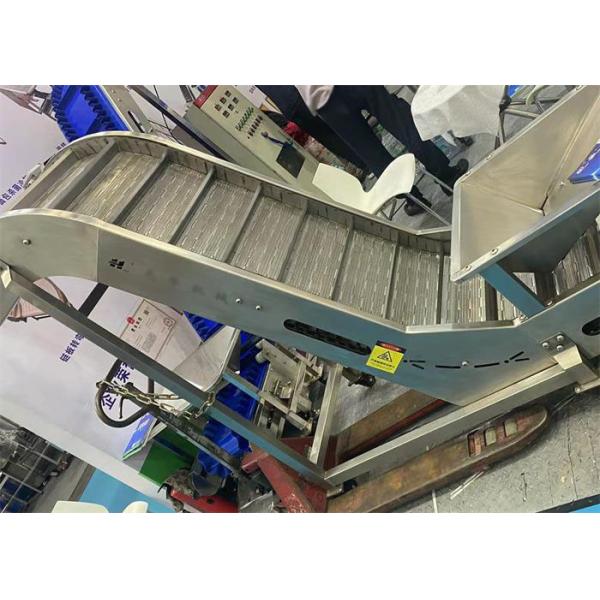

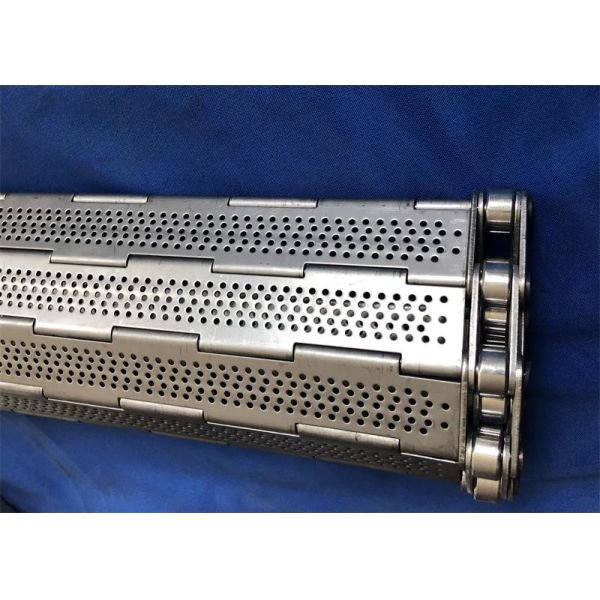

Stainless steel chain plate link conveyor belt consists of hinged slats with or without perforations.Hinged plate belts have side plates and cross flights in various combinations of height and thickness to suit different customers' requirements. The chain plate conveyor belts are tailor made and can be executed with pitches in almost any width and length and plate thickness.

Material Low carbon steel, galvansized steel, stainless steel 304,316, Plastic
Size wide and length can be designed according to customer`s requriement.
Type: flat chain plate conveyor belt, belt chain plate conveyor belt, punching chain plate conveyor belt (round hole, long hole), belt protruded chain plate conveyor belt.

Features:

  1. Heavy loading, ensures stable running.
  2. The rotation diameter of stainless steel conveyor wire mesh belt is small, so that smooth products transfer is ensured.
  3. This kind of conveyor wire mesh belt can be washed easily.
  4. The opening air of mesh belt, high air permeablity and hydration are ensured.
  5. Reinforcement plate links are made for heavy load and high speed

Application:

) Widely used in solar power, mine, metallurgy, petroleum, chemical, food, pharmeceuticals, glass, printing and machine making industries;
2) Heat treament, drying, cooling, refrigerating, cleaning, dehydration, sintering, transportation, material handling, steaming, filtering, sludge draining, printing, etc.

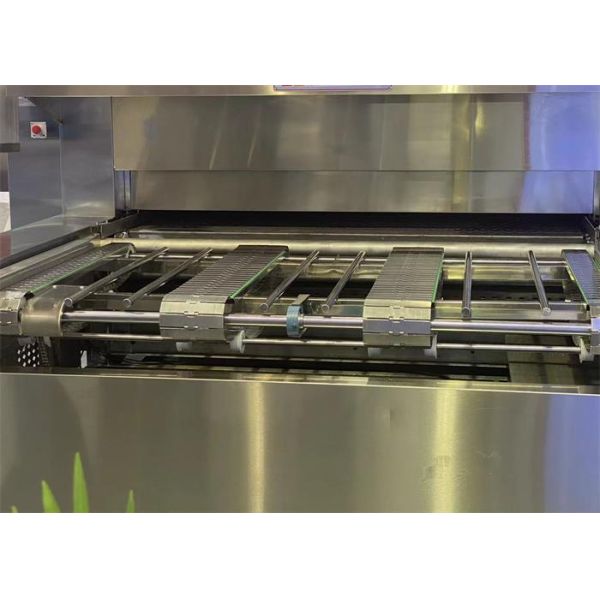

3) Used in sintering furnace, annealing furnace, continuous tunnle furnace, travelling furnace, high-temperature furnace, production line, etc
