304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
Specifications
Brand Name :
COMESH
Model Number :
CM-CB2511201
Certification :
FDA
Place of Origin :
China
MOQ :
2 m
Price :
USD35-55 per meter
Payment Terms :
D/A,D/P,T/T,Western Union,
Supply Ability :
500m per week
Delivery Time :
7-10 days
Packaging Details :
PP bag inside, and then wooden case outside
Material :
stainless steel 304
Width :
800 mm , or customized
Length :
6 m per roll , or customized
Wire diameter :
1.5 mm , or customized
Rod diameter :
6 mm , or customized
Spiral Pitch :
8 mm , or customized
Chain Pitch :
38.1 mm , or customized
Description
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.
Product Specifications
Material Stainless steel 304, or customized
Width 800 mm, or customized
Length 6 m per roll, or customized
Wire Diameter 1.5 mm, or customized
Rod diameter 6 mm, or customized
Spiral pitch 8 mm, or customized
Chain pitch 38.1 mm, or customized
Available Materials
1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUS 330 (1150°C)
4) SUS 304 (400°C)
5) SUS 316 (1000°C)
6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
7) SUS 321 (750°C)
8) SUS 410 (700°C)
9) SUS 430 (700°C)
10) Various metal materials as per your requirements
Key Features
  • Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
  • Design: Spiral wire mesh offers flexibility and strength for transporting various products
  • Chain Driven: Smooth and reliable movement along the conveyor path
  • Customization: Available in various sizes, wire diameters, and mesh configurations
Applications
  • Food processing (especially fried foods industries)
  • Packaging
  • Material handling
  • Automotive assembly lines
Packing & Delivery

Packing: PP bag inside, and then wooden case outside.

Delivery: Can be shipped by sea or air, express services including DHL, FEDEX, TNT, SF, UPS, etc.

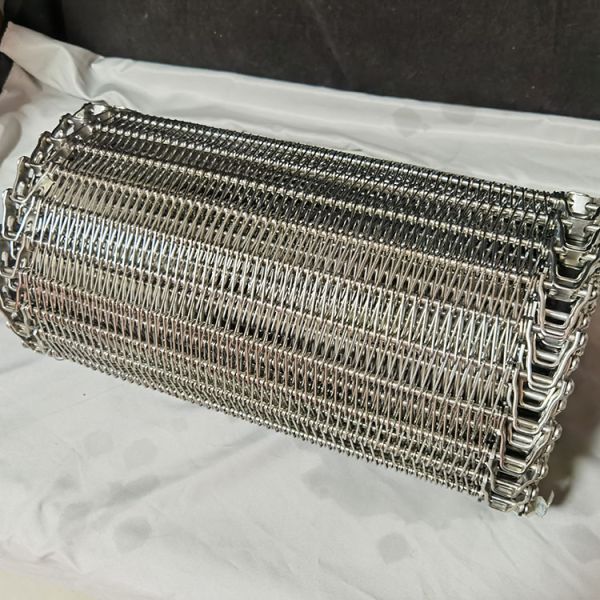

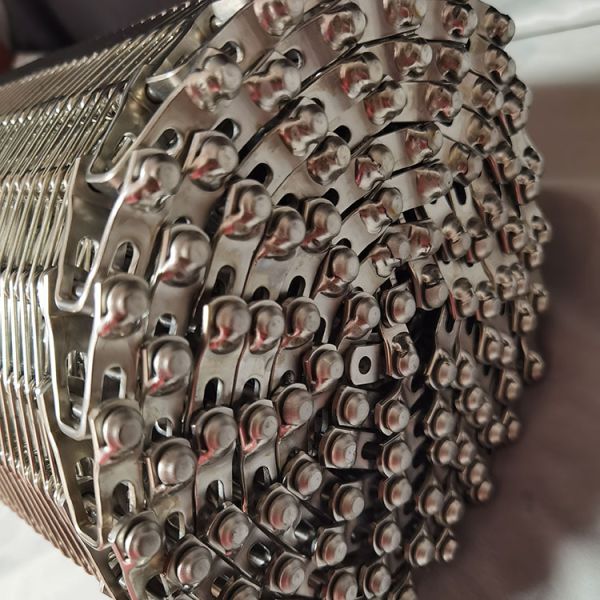

Product Images
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
