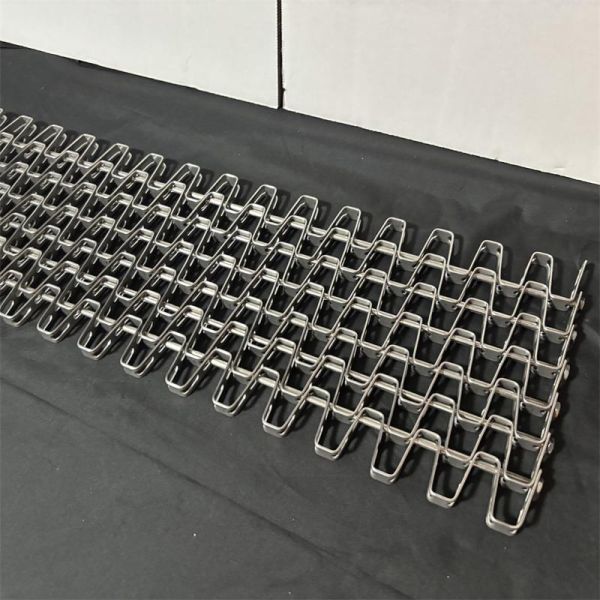

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Specifications
Brand Name :
Comesh
Model Number :
CAR-00610
Certification :
FDA
Place of Origin :
China
MOQ :
10 meters
Price :
Negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
200 meters per months
Delivery Time :
5-20 days
Packaging Details :
plastic bag inside wooden case outside
Name :
Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Material :
Stainless steel 304,316,310
Thickness :
0.8mm-3mm
Feature :
Wear Resistant, Heat Resistant, Acid Resistant
Belt Type :
sprockets driven directly
Chain Pitch :
19.05 / 25.4 / 31.75 / 38.1 / 50.8 / 76.2 / 101.6 mm
Rod diameter :
5 / 6 / 8 / 10 / 12 mm
Hole shape :
honeycomb shape
Edge :
welded button edges or hooked edges.
Description

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt Description:

Stainless steel Honeycomb belting, also known throughout the industry as Flat Wire belting, is a straight-running belt with an extremely high strength-to-weight ratio. It is available in a wide variety of aperture configurations to suit applications as diverse as casting, baking, drainage and packaging.

Honeycomb is constructed from formed flat wire strips connected by cross rods running through the width of the mesh. The rods are finished with either welded button edges or hooked edges.

It is a strong, lightweight, positively driven belt. A large open area makes this belt particularly suitable for processes such as washing, drying, cooling, cooking

Name Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
Material Stainless steel 304,316,310,314S
Plate thickness 0.5mm-3mm
Processing Service Cutting, Punching, Decoiling, Welding, Bending
Driven type Sprockets driven directly

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt Feature:

1. Stable performance, low elongation coefficient, high strength, good mechanical characteristics, and stable operation.

2. Reliable quality, wide application range, stable and reliable, corrosion-resistant, wear-resistant and durable, not easily damaged, with a long service life.
3. Good breath ability. The mesh has larger openings, making it easy for liquid gases to pass through during use.
4. Low friction, strong load-bearing capacity, low weight, low friction, and reduced energy consumption.

Stainless Steel Honeycomb Conveyor Belt Flat Wire Conveyor Belt For Baking and Freezing products:

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt

Stainless Steel 304 Flat Wire Great Wall Conveyor Belt Honeycomb Mesh Belt
