High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
Specifications
Weave Type :
Compound Balance Weave (CBW)
MOQ :
5 Square Meters
Connecting Rod :
Crimped or straight, reinforced edge optional
Application :
Annealing, glass tempering, sintering, quenching furnace
Model Number :
CAR-692
Delivery Time :
15-20 working days after deposit
Mesh Opening :
8 - 25 mm
Surface Treatment :
Pickled and passivated
Packaging Details :
Waterproof film wrapped, plywood case with steel frame, export standard
Belt Width :
100 - 5000 mm
Place of Origin :
Hebei, China
Supply Ability :
600 Square Meters per Month
Name :
High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C
Brand Name :
COMESH
Payment Terms :
T/T,Western Union,PayPal
Certification :
ISO 9001:2015, SGS
Max Working Temperature :
1150C (2100F)
Wire Diameter :
2.0 - 4.0 mm
Price :
USD 45-90 / Square Meter
Material :
SS 310S / 314
Description

High Temperature 310S Stainless Steel Compound Balance Weave Conveyor Belt for Annealing Furnace 1150C

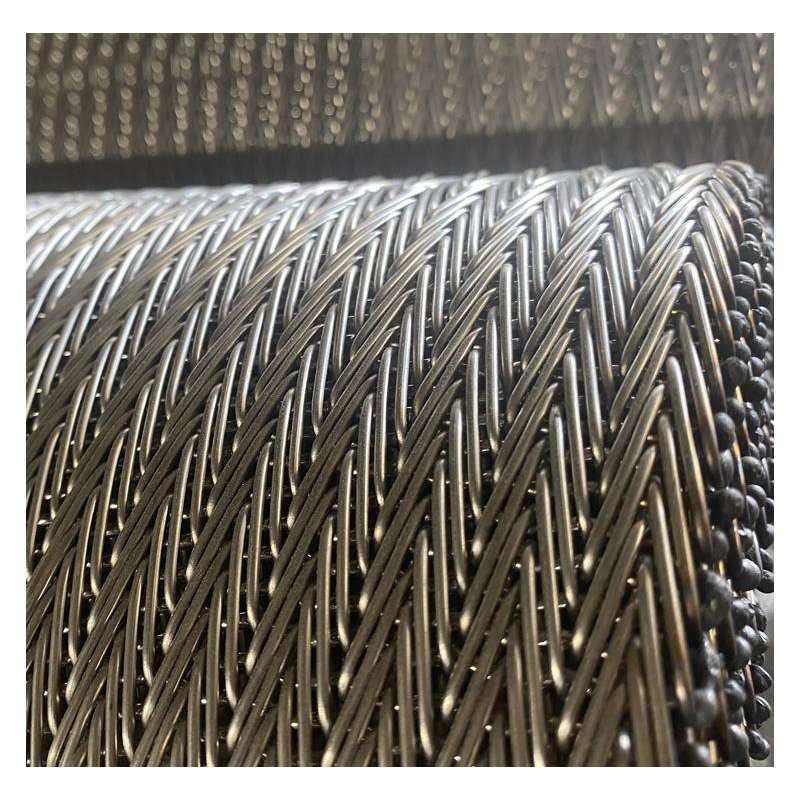

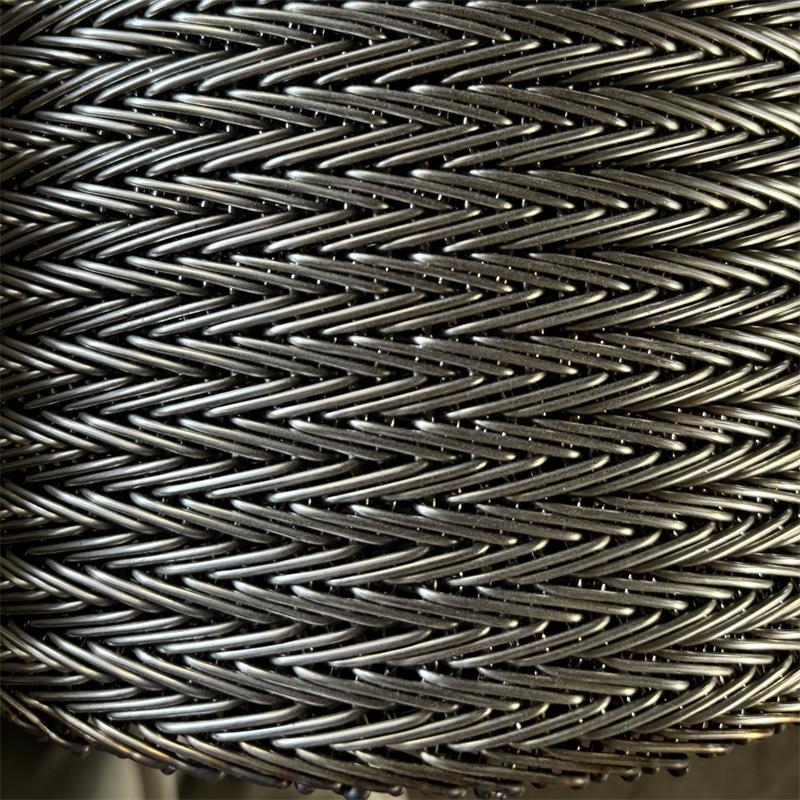

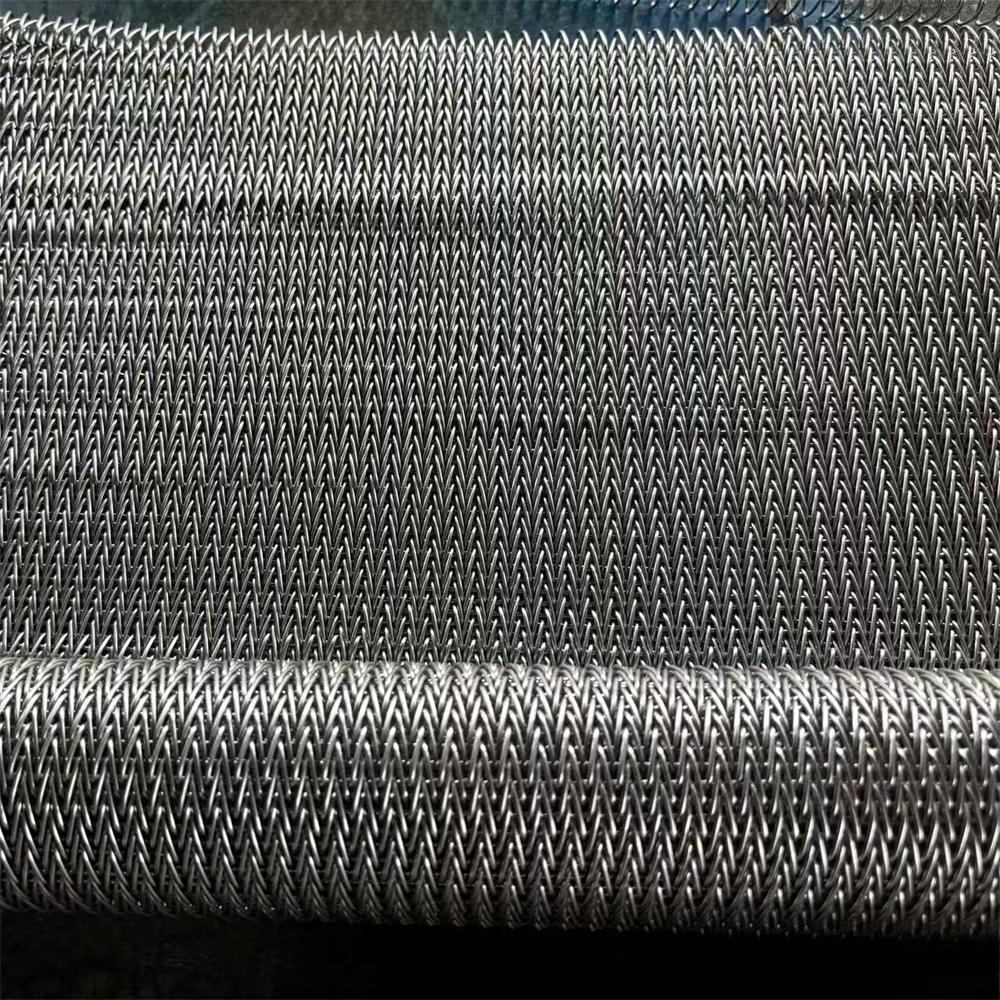

This high temperature conveyor belt is woven in 310S stainless steel with a compound balance weave structure, engineered for continuous service in annealing, glass tempering and sintering furnace lines where working temperatures reach up to 1150°C.

Key Features

  • Compound balance weave with alternating left and right hand spirals and crimped connecting rods ensures straight tracking and stable running.
  • 310S / 314 stainless steel construction delivers outstanding oxidation resistance and creep strength at elevated temperatures.
  • Open mesh structure allows free air circulation for uniform heating and rapid cooling of products.
  • Reinforced edge options prevent fraying and extend service life under heavy thermal cycling.
  • Customizable width, length, wire diameter and mesh opening to fit existing furnace dimensions.

Technical Specifications

Item Specification
Material SS 310S / 314
Weave Type Compound Balance Weave
Max Working Temperature 1150°C (2100°F)
Wire Diameter 2.0 - 4.0 mm
Mesh Opening 8 - 25 mm
Belt Width 100 - 5000 mm
Connecting Rod Crimped or straight, optional reinforced edge
Surface Treatment Pickled and passivated

Applications

  • Annealing furnaces
  • Glass tempering and forming lines
  • Sintering and quenching furnaces
  • Ceramic and refractory processing
  • Powder metallurgy production lines

For custom high temperature conveyor belt sizing, contact our engineering team with your furnace temperature, belt width and loading requirements.
