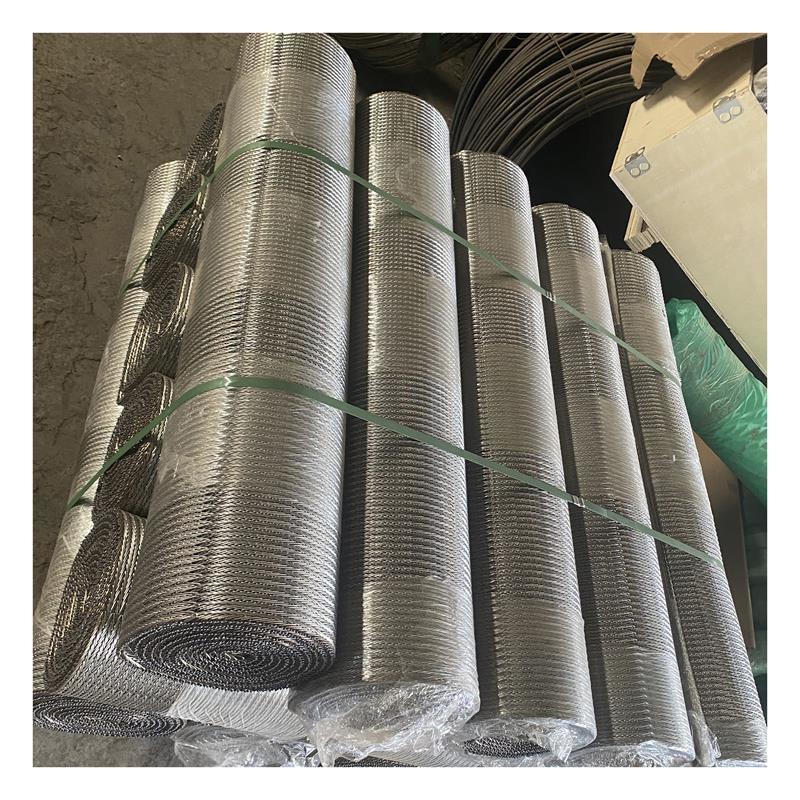

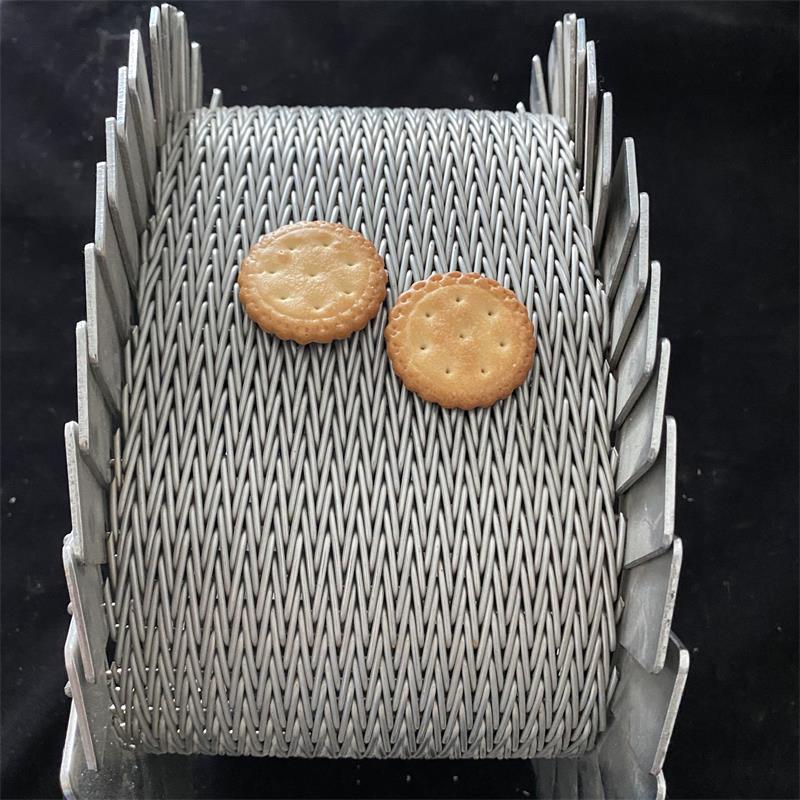

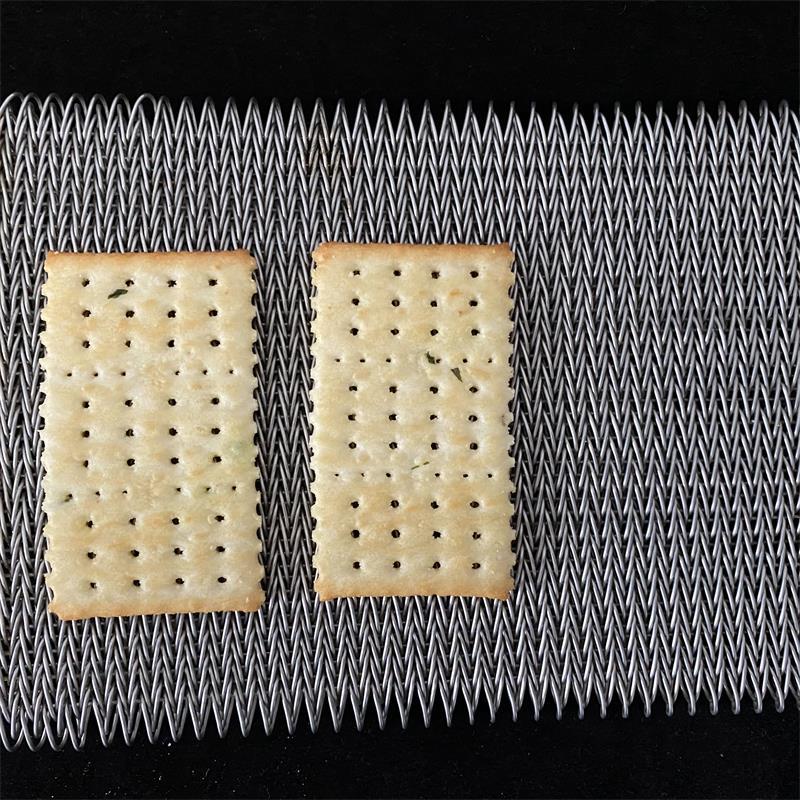

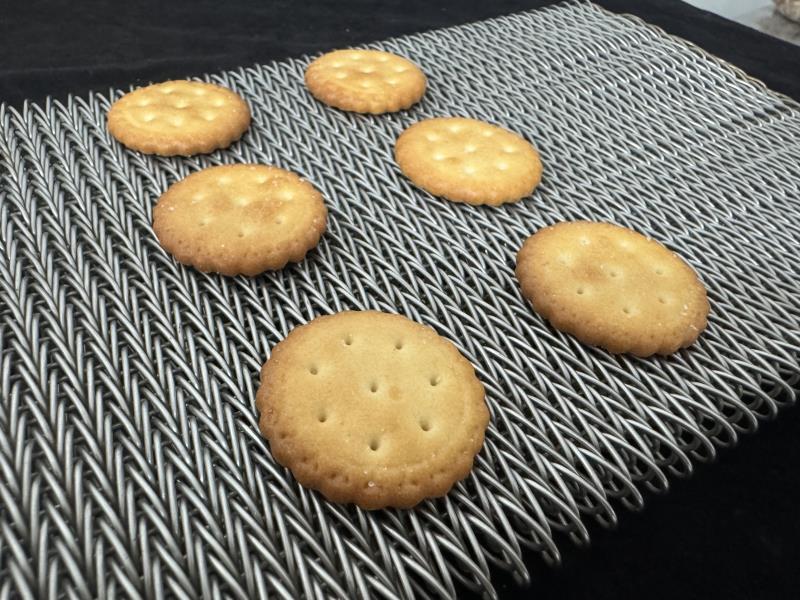

Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Specifications
Weave Type :
Herringbone Weave (compressed compound balance)
Payment Terms :
T/T,Western Union,PayPal,Trade Assurance
Connecting Rod :
Straight rod, welded serpentine edge
Application :
Baking, frying, freezing, drying, washing food lines
MOQ :
10 Square Meters
Mesh Opening :
4 - 12 mm
Surface Treatment :
FDA compliant
Brand Name :
COMESH
Belt Width :
200 - 4000 mm
Price :
USD 25-55 / Square Meter
Supply Ability :
500 Square Meters per Month
Place of Origin :
Hebei, China
Certification :
ISO 9001:2015, SGS, FDA
Max Working Temperature :
400C (750F)
Delivery Time :
10-15 working days after deposit
Wire Diameter :
1.2 - 2.5 mm
Model Number :
CAR-562
Packaging Details :
Food-grade PE film inside, reinforced plywood case outside, export standard
Material :
SS 304 / 316L Food Grade
Name :
Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line
Description

Food Grade 304 Stainless Steel Herringbone Weave Conveyor Belt for Baking Frying Freezing Line

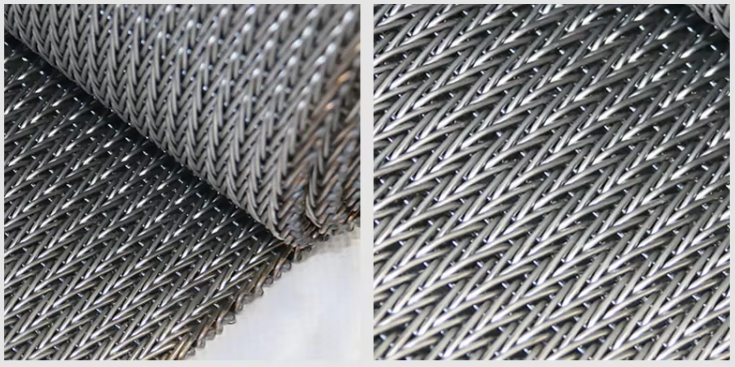

This food grade conveyor belt uses a herringbone weave formed by compressing alternating left and right hand spirals into a tight, flat surface, providing stable support for small and delicate food products through baking, frying, freezing and drying lines.

Key Features

  • Herringbone weave creates a dense, flat carrying surface that supports small and irregular food items without dropping through.
  • Food grade 304 / 316L stainless steel with mirror polished surface resists corrosion, acids and alkalis from food processing.
  • Easy to clean and sanitize, fully compliant with food contact safety requirements.
  • Smooth product transfer between process stages reduces damage and jamming.
  • Optional welded serpentine edges strengthen the belt for continuous high-speed operation.

Technical Specifications

Item Specification
Material SS 304 / 316L Food Grade
Weave Type Herringbone Weave (compressed compound balance)
Max Working Temperature 400°C (750°F)
Wire Diameter 1.2 - 2.5 mm
Mesh Opening 4 - 12 mm
Belt Width 200 - 4000 mm
Connecting Rod Straight rod with welded serpentine edge
Surface Treatment Mirror polished, FDA compliant

Applications

  • Baking and toasting lines
  • Frying and oil draining conveyors
  • Freezing and cooling tunnels
  • Washing and blanching lines
  • Drying ovens for fruits, vegetables and nuts

Request a food grade conveyor belt sample or quote today - tell us your product type, line temperature and belt width for a tailored solution.
