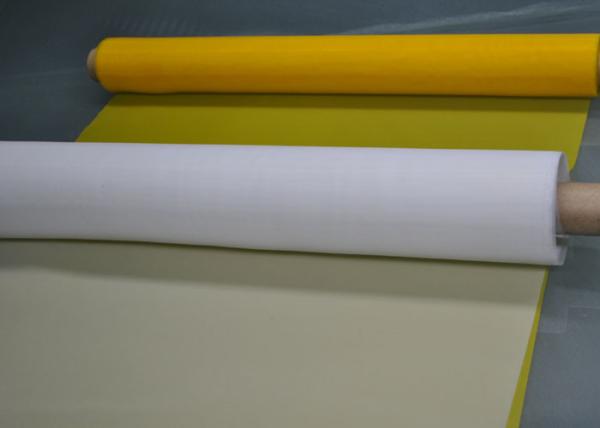

60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
Specifications
Brand Name :
PFM
Model Number :
PFM-Hel
Certification :
FDA
Place of Origin :
Hbei,China
MOQ :
30meter
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability :
3000meters per week
Delivery Time :
5-10days
Packaging Details :
plastic bag inside, carton case outside,5-10rolls in one carton
product name :
60 micron White 100T - 40 Polyester Screen Printing Mesh For T-shirt Printing
Thread diameter :
40um
Mesh/inch :
250
application :
T-shirt Screen Printing
width :
127cm
Description
60 Micron High Tension Silk Screen Fabric Durable 100T - 40 With 127cm Width
Product Specifications
Attribute Value
Product Name 60 micron White 100T - 40 Polyester Screen Printing Mesh For T-shirt Printing
Thread Diameter 40um
Mesh/inch 250
Application T-shirt Screen Printing
Width 127cm
Detailed Description
Mesh Count Per cm 100
Thread Diameter 40
Color White / Yellow
Opening Size 60 micron
Available Widths 115cm, 127cm, 136cm, 145cm, 157cm, 165cm, 188cm, 220cm (Max width: 3.65m)
Key Features
  • High tension threshold and breaking point
  • High modulus, low elongation monofilament polyester yarn
  • Resistant to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic properties
  • No surface treatment required
Manufacturer Information

Anping County PFM Screen Co., Ltd is located in the famous "home town of wire mesh" - Anping county industrial park, covering an area of 40,000 square meters with construction area of 11,000 square meters. Our facility includes:

  • 10,000 grade clean production workshop (1,500 sqm)
  • 163 employees including 56 engineering technical personnel
  • World's most advanced polyester screen printing mesh production line
  • Advanced test equipment
60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
Applications

Polyester Screen Printing Mesh is widely used in:

  • Textile printing
  • T-shirt printing
  • Ceramic printing
  • Glass printing
  • PCB printing industry
Technical Specifications
Count (inch) Count (cm) Diameter (um) Opening (um) Open Area(%) Thickness(um) Volume (CM³/CM²) Max Tension(N/CM)
15 6 400 1270 64 720 460 30-60
250 100 40 60 36 70 25 20-24
Mesh Selection Guide
  • 20-40 mesh: Best for glitter inks requiring very open mesh
  • 60 mesh: Ideal for smaller glitter and most shimmer inks
  • 80 mesh: Used for shimmer inks, thick ink layers (high-density printing), and foil adhesive
  • 110 mesh: Excellent for white and thick inks, ideal for spot color printing
  • 120 mesh: Most common size for white ink and thicker viscosity colored inks
  • 155 mesh: General purpose textile printing with basic to semi-fine detail
  • 200 mesh: Detailed prints requiring thinner ink layers than 155 mesh
  • 230-280 mesh: High-end fine detail printing and halftones
  • 305 mesh: Extremely high detail with thin ink layers, soft hand feel on garments
Production Process
60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
Packaging Details
  • Mesh rolls in PP bags
  • 2-12 rolls per carton
  • Waterproof outer bags
  • Package belt reinforcement
Ordering Information

Minimum Order Quantity: Typically 30 meters (smaller quantities may be available - please contact Helen Hou)

Samples: Free samples up to 2 meters available (buyer pays freight)

Customer Service
Pre-Sale Services:
  • Inquiry and consulting support
  • Sample testing
  • Factory tours
After-Sale Services:
  • Prompt shipment tracking
  • Usage training
  • Replacement for unsatisfactory products
60 Micron 100T-40 Polyester Screen Printing Mesh 127cm Width
