45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
Specifications
Brand Name :
PFM
Model Number :
PFM-LIS
Certification :
FDA
Place of Origin :
Hbei,China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, ，Trade assurance,Paypal
Supply Ability :
3000meters per week
Delivery Time :
5-10days
Packaging Details :
Plastic bag inside on one roll and plywood case outside or cut into small piece and plastic bag.
Material :
Polyester
Thread diameter :
45micron
Mesh/inch :
200mesh
Weave way :
plain
Weave :
1:1
Delivery :
within 3-7days
Description

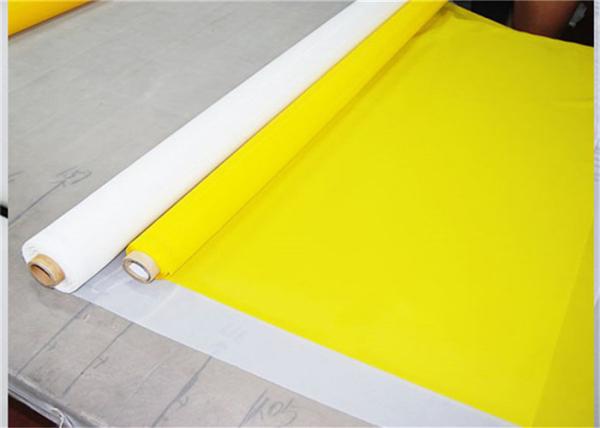

Yellow 45 Micron DPP200 Polyester Screen Printing Mesh With Plain Weave
Attribute Value
Material Polyester
Thread diameter 45micron
Mesh/inch 200mesh
Weave way plain
Weave 1:1
Delivery within 3-7days
DPP200 Polyester Screen Printing Mesh With Plain Weave Used For Electronic
Description of DPP200 polyester screen printing mesh
Thread diameter: 45micron
Mesh: 200mesh/inch
Mesh opening: 80micron
Fabric thickness: 80micron
Weight: 40g/m2

White is generally about 200 head, yellow is more than 250 head, white in the copy is more refraction, will affect the quality of the screen, so the high mesh fine screen are yellow yarn. The higher the mesh, the finer the net, the thicker it is. Printing ink selection of high numbers, printing paste generally selected 100 mesh, or 80 mesh.
Application
Textile printing and dyeing, plate-printing, electronic printing, ceramics, glass, flower paper printing, signs, advertising, Arts and crafts, food, medical and chemical filtration and other industries.
Specification
COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15640012706472046030-60
18735010786464041030-60
2083009505855031930-60
25102507505662034730-60
30122505834945022030-60
30121506836730020130-60
40162004254640018430-60
502080420711208535-37
50201503504926012730-60
6024100316581367835-40
60241202975024012035-60
73291202254324010335-60
80326424863955930-34
8032100212462009235-40
8534100195442219735-40
9036100178412168835-40
100395520061885325-30
1003980176471507035-37
1104380153431305635-37
120475515855884825-30
1204771142441355930-34
135535513350864325-30
1355364125441004426-31
1505964105381003826-31
160645510142984125-30
160646492351204230-34
18072489143786627-29
180725584371003725-30
20080487738742827-29
195775575331053425-30
23090486333852827-29
250100406036702520-24
280110405131852620-24
305120404327681820-24
355140343727581522-24
380150313629461321-23
420165313024461121-23
460180272826561420-22
Feature advantage
  • Screen printing can transfer thick ink deposits and create special effects, so 30mesh/inch to 300mesh/inch silk screen printing mesh is widely used to print high quality commercial garments.
  • Any ink deposits and any ink system are possible with screen printing, so silk screen printing mesh is widely used to print knitted fabric, blankets, silk even coarse denim.
  • Screen printing offers many superiorities of ink transparency, ink brilliance, various decorative pattern choice, and fast production cycle time, so silk screen printing mesh is preferred for CDs and DVDs printing process.
  • Silk screen printing mesh is also used for glass printing, such as pharmacy glass appliance, home appliance (microwaves oven), Automotive glass (black mask for the front, side and back windows), glass containers (perfumes, cosmetics, drink bottles).
  • Screen printing can print the challenging intense colors and ornate decor on ceramics, so silk screen printing mesh is extensively used in the decoration of dishes, tiles, earthenware or fine china.
  • Silk screen printing mesh is the fastest and most economical method to print printed circuit boards (PCB) solder masks, etching resist, legends and single or multi-layers.
45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave 45 Micron 200 Mesh Polyester Screen Printing Mesh Plain Weave
