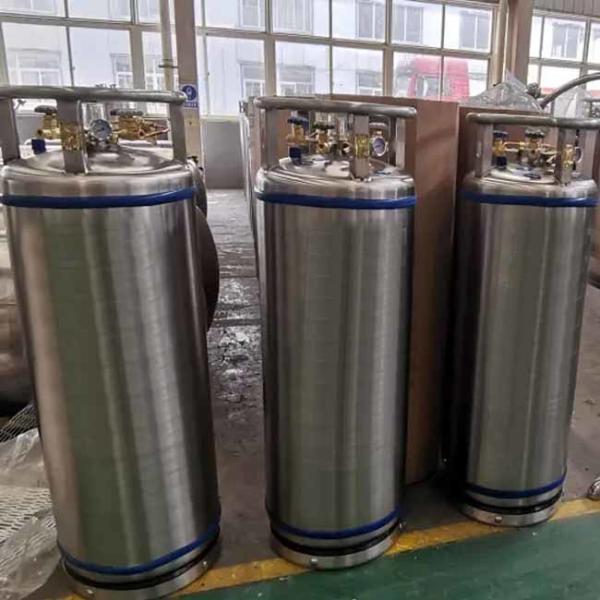

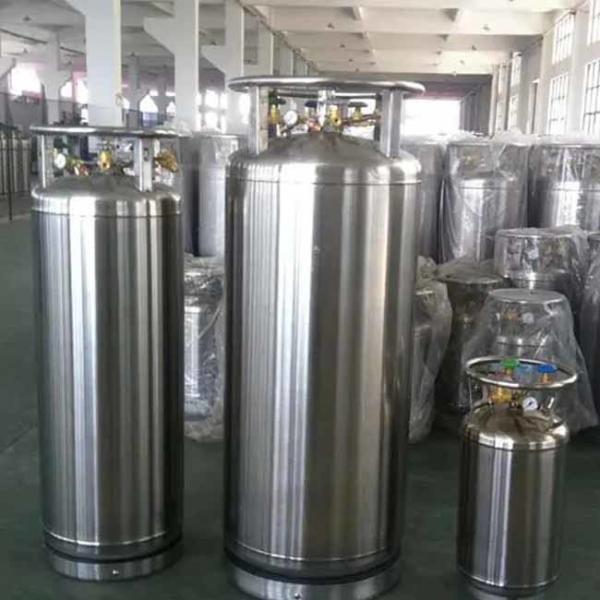

100L 232L Cryogenic Dewar Cylinder , 195L Argon Dewar Tank
100L 232L Cryogenic Dewar Cylinder , 195L Argon Dewar Tank
100L 232L Cryogenic Dewar Cylinder , 195L Argon Dewar Tank
100L 232L Cryogenic Dewar Cylinder , 195L Argon Dewar Tank
Specifications
Brand Name :
Gnee
Certification :
ISO
Place of Origin :
henan
MOQ :
1
Price :
bargain
Payment Terms :
T/T,L/C,Paypal,Alipay,West Union and so on
Supply Ability :
25 every month
Delivery Time :
15days
Packaging Details :
wooden box
Max Working Pressure(MPa) :
1.37 MPa
Machinery Test Report :
Provided
Core Components :
Pressure vessel
Warranty :
1 Year
Material :
Cryogenic Vessel
Application :
Oxygen Argon Nitrogen Co2
After Warranty Service :
Video technical support, Online support
Video outgoing-inspection :
Provided
Capacity: :
80L/100L/175L/195L/210L/232L
Description

100L 195L 232L Customized Cryogenic Pressure Liquid Oxygen Dewar Cylinder

Description

Dewar is a high quality vacuum insulated stainless steel pressure vessel designed for the storage, transportation and use of liquid oxygen, liquid nitrogen, liquid argon or carbon dioxide and other media. These vessels are manufactured according to standards for economical transportation and storage of cryogenic liquid gases, as well as storage and supply of cryogenic liquid gases in a wide range of applications.

Parameter

Model

DPL-175MP

DPL-195MP

DPL-175HP

DPL-195HP

DPL-175VHP

DPL-195VHP

 DPW-483MP DPW-483HP
TP type Low High Super high Low High
WP 1.4Mpa 2.3Mpa 2.8Mpa 1.6Mpa 2.34Mpa
Volume

175L

195L

175L

195L

175L

195L

 480L 480L
Safety P 1.59 Mpa 2.41 Mpa 3.2 Mpa 1.59 Mpa 2.4Mpa
Rupture disk 2.6 Mpa 3.6 Mpa 4.6 Mpa 2.6 Mpa 3.6Mpa
Booster valve 0.86 Mpa 2.07 Mpa 2.93Mpa 0.86 Mpa 2.0Mpa

Liquid

Gas

 LN2 175L: 120kg 195L: 135kg 365kg 365kg
LO2 175L: 170kg 195L: 195kg 500kg 500kg
LAr 175L: 230kg 195L: 260kg 630kg 630kg
CO2 175L: 170kg 195L: 190kg 450kg 450kg
LNG 175L: 72kg 195L: 80kg 200kg 200kg

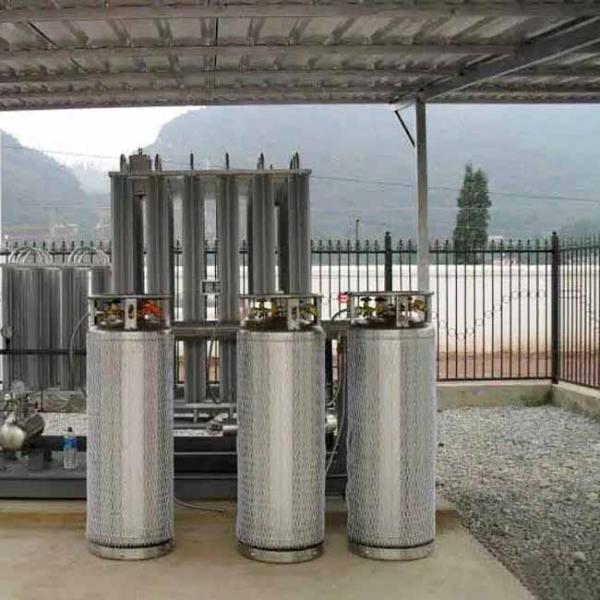

100L 232L Cryogenic Dewar Cylinder , 195L Argon Dewar Tank

Product advantages

1. The cryogenic Dewar has the most reasonable piping layout

The overall pipeline arrangement includes inner pipeline arrangement and outer pipeline arrangement. A reasonable layout will reduce excess cost and provide more accurate instrument measurements.

2. The Dewar flask adopts a special process as a whole

The inner container support of the Dewar flask is specially designed to twist, which not only increases the flexibility of the support, but also reduces the heat transfer. The ordinary inner container support will expand and contract due to the ambient temperature, and the support may be braked, but Due to the added flexibility, the inner container can vary in length to ensure stability of the inner container.

100L 232L Cryogenic Dewar Cylinder , 195L Argon Dewar Tank
