AC Leakage Current Clamp Meter CM4001 with True RMS, 600.0 A Range, and Comparator Function
AC Leakage Current Clamp Meter CM4001 with True RMS, 600.0 A Range, and Comparator Function
AC Leakage Current Clamp Meter CM4001 with True RMS, 600.0 A Range, and Comparator Function
AC Leakage Current Clamp Meter CM4001 with True RMS, 600.0 A Range, and Comparator Function
Specifications
Brand Name :
HIOKI
Model Number :
AC Leakage Current Clamp Meter CM4001
Certification :
CO
Place of Origin :
Japan
MOQ :
1
Price :
480-638USD
Supply Ability :
99pcs/6-8weeks
Delivery Time :
6-8weeks
Outputsignal :
4-20 mA, 0-10 V, Digital
Pressuretype :
Gauge, Absolute, Differential
Protectionrating :
IP65, IP67
Calibration :
Factory Calibrated
Outputinterface :
RS485, HART, Modbus
Connectiontype :
Threaded, Flanged
Accuracy :
±0.25% of full scale
Measurementtype :
Gauge, Absolute, Differential
Pressurerange :
0 to 10,000 psi
Measurementrange :
0 to 1000 psi
Displaytype :
LCD, LED
Mountingtype :
Panel Mount / Wall Mount
Responsetime :
≤ 1 second
Mounting :
Panel mount or pipe mount
Operatingtemperature :
-40°C to 85°C
Description
AC Leakage Current Clamp Meter CM4001
Product Overview

Professional AC leakage current clamp meter designed for precise measurement of current consumption and standby current in electronic products.

Technical Specifications
Parameter Specification
AC Current Range 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 600.0 A (5 ranges, true RMS)
Basic Accuracy (45-66 Hz) ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A)
±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
Accuracy Range 0.60 mA to 600.0 A
Frequency Range 40.0 Hz to 999.9 Hz
Crest Factor 4.5 for less than 4,000 points
3 for more than 4,000 points and less than 6,000 points
Filtering Function Cut-off frequency 180 Hz ± 30 Hz (-3 dB) when turned on
Display Refresh Rate 5 times/sec
Power Supply Alkaline No. 7 battery (LR03) *1
Continuous use time: 32h (without Z3210)
16h (with Z3210, using wireless communication)
Measurable Conductor Diameter φ 24 mm or less
Dimensions & Weight 37W * 160H * 27D mm, 115 g
Additional Features
  • Comparator function
  • Max/Min/Average recording function
  • Backlight display
  • Data hold function
  • Automatic power saving
  • Impulse current measurement
  • Harmonic measurement capability (with Z3210 adapter)
* Harmonic level/content/total harmonic distortion measurement up to 30 times available when Z3210 adapter is installed. Display requires GENNECT Cross application software.
Included Accessories
  • Carrying bag * 1
  • Sling * 1
  • Instruction manual * 1
  • Precautions for use
  • Alkaline No. 7 battery (LR03) * 1
Optional Accessories
AC Leakage Current Clamp Meter CM4001 with True RMS, 600.0 A Range, and Comparator Function

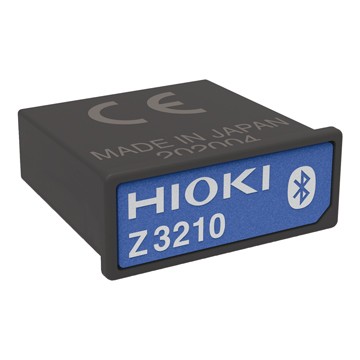

Wireless adapter Z3210 - enables harmonic measurement and wireless communication functionality

Application

Specifically designed for measuring current consumption and standby current of electronic products, making it ideal for energy efficiency testing and power quality analysis.
