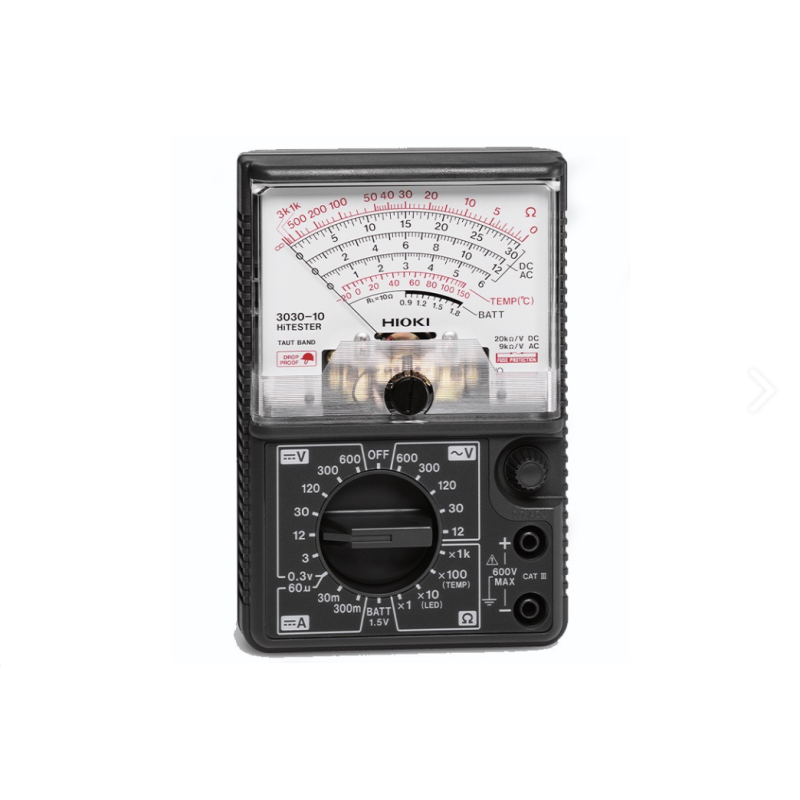

HIOKI Analog Multimeter 3030-10 Basic Analog Multimeter
HIOKI Analog Multimeter 3030-10 Basic Analog Multimeter
HIOKI Analog Multimeter 3030-10 Basic Analog Multimeter
HIOKI Analog Multimeter 3030-10 Basic Analog Multimeter
HIOKI Analog Multimeter 3030-10 Basic Analog Multimeter
HIOKI Analog Multimeter 3030-10 Basic Analog Multimeter
Specifications
Brand Name :
HIOKI
Model Number :
HIOKI Analog multimeter 3030-10
Certification :
CO
Place of Origin :
Japan
MOQ :
1
Price :
100-120USD
Payment Terms :
T/T
Supply Ability :
99pcs/6-8weeks
Delivery Time :
6-8weeks
Packaging Details :
Standard cardboard box packaging
Ac Voltage Range :
1000 V
Design Purpose :
Electricians
Function :
FieldSense validation
Ingressprotection :
IP65, IP67
Measurement Function :
VCHEK™ LoZ low impedance
Live Video Sharing :
ShareLive™
Dedicated Buttons :
6
Mobile App Compatibility :
Fluke Connect
Outputsignal :
4-20 mA
Operation Method :
Plug-in
Impedance Compatibility :
High or low
Description
  • Overvoltage protection up to 250VAC to prevent shock accidents before they occur.
  • Drop-resistant structural design, preventing damage even if dropped from one meter high onto cement ground.
  • LED inspection function
Basic parameters
DC voltage range 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) Accuracy: ± 2.5% f.s. Maximum rated voltage: 600V
AC voltage range 12 V (9 kΩ/V) accuracy: ±4% f.s. 30/120/300/600 V (9 kΩ/V) accuracy: ± 2.5% f.s. average rectification RMS value, maximum rated voltage: 600V
DC current travel time 60 μA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3% f.s.
Resistance range 0 to 3 kΩ (center scale 30 Ω), R x 1, R x 10, R x 100, R x 1k ±3% of the length of the ruler
Battery inspection 0.9 ~ 1.8 V, load resistance: 10 Ω, accuracy: ±6% f.s.
Temperature Note: Although the instrument has a (TEMP) temperature scale, the thermostat temperature probe 9021-01 has been discontinued, so this function is no longer available.
Power supply R6P(AA) × 2 batteries
Size, weight 95 mmW × 141 mmH × 39 mmD, 280 g

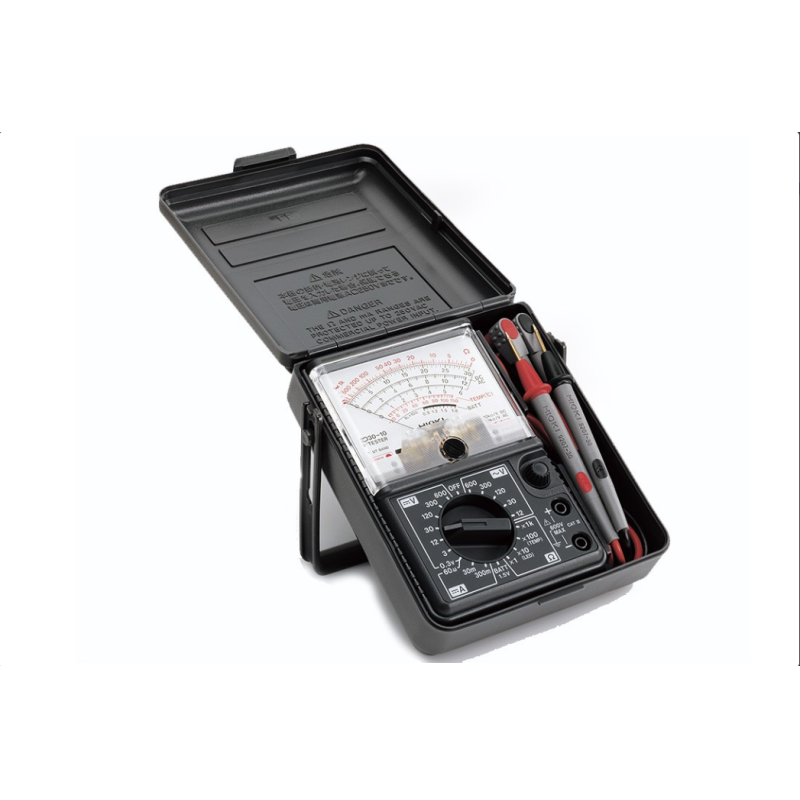

Attachment Test Cable L9207-30 (1), Fuse (1), Carrying Case 9390 (1), No.5 Manganese Battery (2), User Manual (1)
