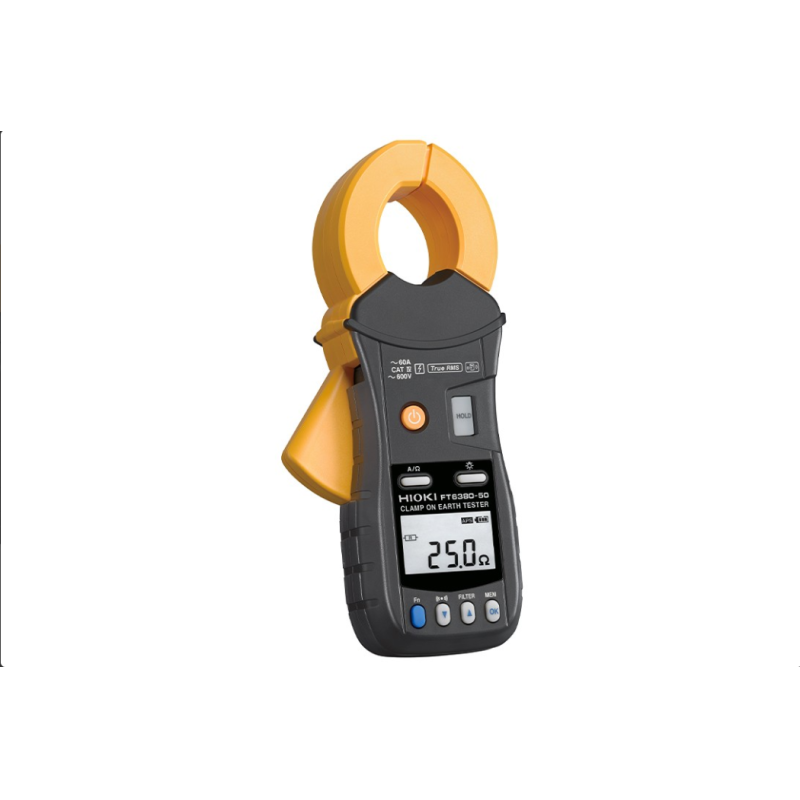

HIOKI FT6380-50 Clamp Grounding Resistance Tester, 0.20Ω-1600Ω, 60A AC CAT IV 600V
HIOKI FT6380-50 Clamp Grounding Resistance Tester, 0.20Ω-1600Ω, 60A AC CAT IV 600V
HIOKI FT6380-50 Clamp Grounding Resistance Tester, 0.20Ω-1600Ω, 60A AC CAT IV 600V
HIOKI FT6380-50 Clamp Grounding Resistance Tester, 0.20Ω-1600Ω, 60A AC CAT IV 600V
HIOKI FT6380-50 Clamp Grounding Resistance Tester, 0.20Ω-1600Ω, 60A AC CAT IV 600V
HIOKI FT6380-50 Clamp Grounding Resistance Tester, 0.20Ω-1600Ω, 60A AC CAT IV 600V
Specifications
Displaytype :
LCD/LED
Payment Terms :
T/T
Delivery Time :
6-8weeks
Measurementtype :
Gauge, Absolute, Differential
Supply Ability :
99pcs/6-8weeks
Applications :
Industrial, HVAC, Automotive, Oil & Gas
Safety Rating :
CAT IV 600V
Outputinterface :
RS485, HART, Modbus
Brand Name :
HIOKI
Measurementrange :
0 to 1000 psi
Measurement Range :
0.20Ω – 1600Ω / 20mA – 60A AC
Data Transfer :
Bluetooth wireless
Clamp Jaw Size :
Φ32 mm max
Protection Rating :
IP40
Display :
LCD
MOQ :
1
Material :
Stainless Steel
Responsetime :
Less than 1 second
Ingressprotection :
IP65, IP67
Powersupply :
24 V DC
Model Number :
FT6380-50
Place of Origin :
Japan
Packaging Details :
Standard cardboard box packaging
Outputsignal :
4-20 mA, 0-10 V, Digital
Certification :
CO
Price :
1550-2000USD
Description
  • Compatible with HIOKI free application software GENNECT Cross (optional: when connected to wireless adapter Z3210)
  • Test data is wirelessly transmitted and imported into Excel forms
  • Ground impedance measurement uses multiple grounding
  • Leakage current test for power lines
  • Supports load current testing up to 60 A
  • Thin sensors can measure even in narrow gaps.

(Accuracy warranty period is 1 year, and after adjustment, accuracy warranty is 1 year)

Working methods Clamp-type measurement combining voltage injection and current measurement calculates the grounding resistance value. ※ One ground wire becomes multi-ground, dedicated to multiple groundings; the more grounding electrodes, the more accurate the measurement value
Grounding resistance measurement 0.20Ω (resolution 0.01Ω) ~ 1600Ω (resolution 20Ω), 10 ranges, zeroing below 0.02Ω, basic accuracy: ± 1.5% rdg ±0.02Ω
Current measurement 20.00mA (resolution 0.01mA) ~ 60.0A (resolution 0.1A), 5 ranges, neutralizing below 0.05mA, basic accuracy: ± 2.0% rdg ±0.05mA (30Hz ~ 400Hz, true RMS rectified), crest factor: below 5.0 (below 1.7 at 60A range)
Maximum allowable current AC100A continuous, AC200A 2 minutes (50/60Hz)
Maximum rated voltage for ground intersection AC600V Measurement Level IV (Expected Transient Overvoltage 8000 V)
Storage function Storage quantity: 2,000 units
Alarm function Resistance/Current Alarm: Beeps when threshold is below or exceeds the threshold
Harmonics [When installing the Z3210] Harmonic level/content/total harmonic distortion in current can be measured up to 30 times * Can be displayed via application software (GENNECT Cross).
Other features Data retention, backlight, filtering, automatic power saving, wireless communication (only when using Z3210)
Display LCD, maximum 2000 pixels, display refresh rate 500ms (about 2 times/s)
Dustproof and waterproof IP40 (EN60529:1999+A1:2000), only when the jaw is closed
Power supply No. 5 alkaline battery (LR6)) *2
Continuous usage time Approximately 40 hours (25 Ω measurement, backlight off, without Z3210 installed) Approximately 35 hours (25 Ω measurement, backlight off, with Z3210 installed, wireless communication)
Maximum measurable conductor diameter φ 32 mm
Dimensions and weight Approx. 73W * 218H * 43D mm, approx. 620g (excluding battery)
Attachment Carrying case, resistance for operation confirmation (1 Ω±2%, 25Ω ±1%), hanging rope, AA alkaline battery (LR6) * 2. User manual and usage precautions
